AZDENT Dental Brushless LED Micro Motor Internal Spray Electric Motor E type Contra Angle Low Speed Handpiece Dental Equipment

Attention please:

There are multiple options of dental handpiece and micro motor sets to choose from. Different options means different products. We will ship according to the set you finally order.
Before order please confirm the right option you want to avoid ordering wrong item, any doubts please contact our service online.

Dental LED Brushless Electric micro motor

Technology :
Type of motor: brushless motor
Internal Spray

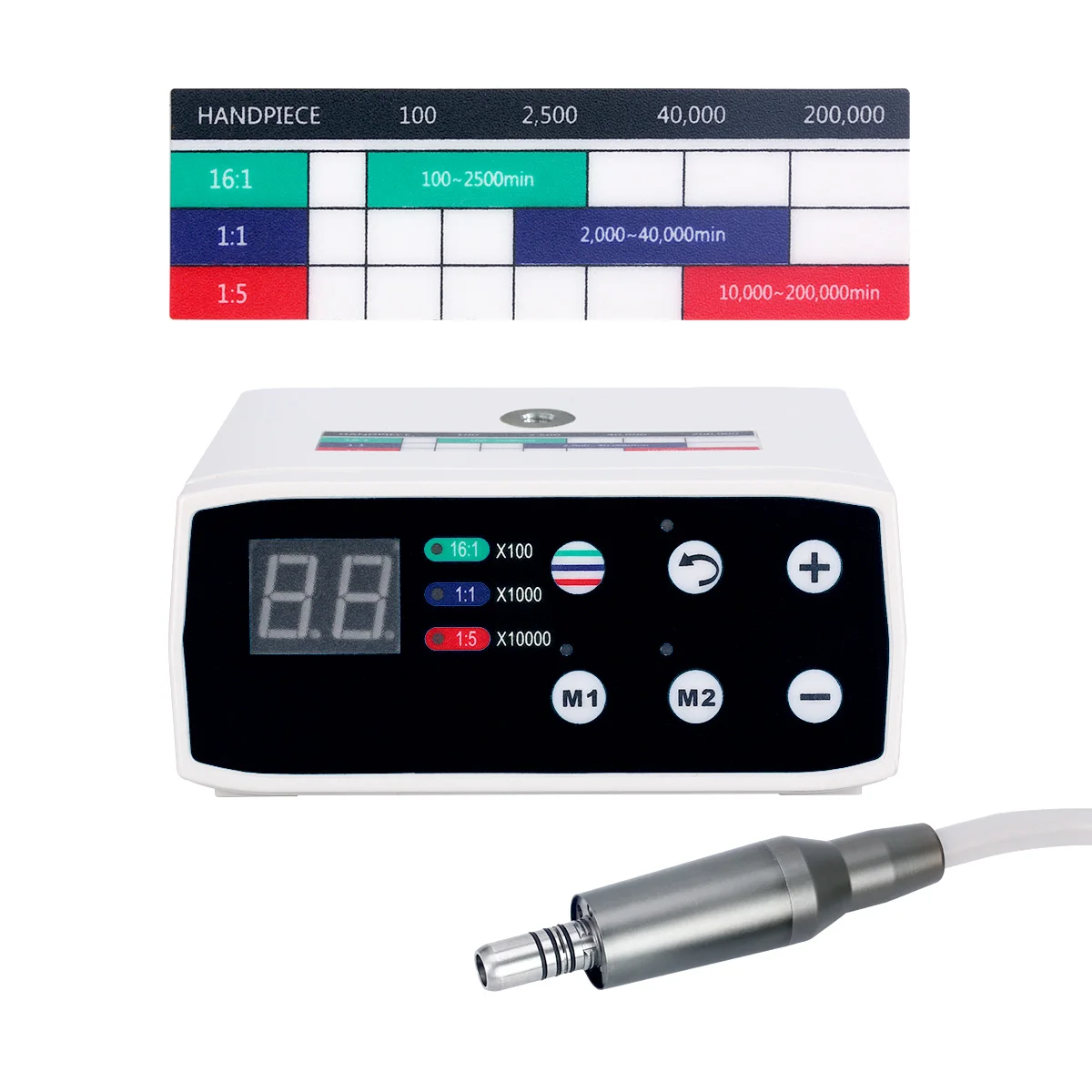

Three optional settings(1:1/1:5/16:1)
Rotation: 2,000-40,000rpm
2000rpm-40000rpm(1:1)
100rpm-2500rpm(16:1)
10000rpm-200000rpm(1:5)
Torque: 3.4Ncm
Power input: AC 100-240V
Size of motor:φ22xL71 mm
Weight of motor: 71g
Noise level: <60dB
Illuminate: LED(white light)
Size of control device: L150.00 x W128.00 x H55.00mm
Connector: ISO-E type

Packing list:
Micromotor: —————————1 pc
Control unit: —————————1 pc
Micromotor tube:———————1 pc
Power adaptor:————————1 pc
Operation manual:——————–1 pc

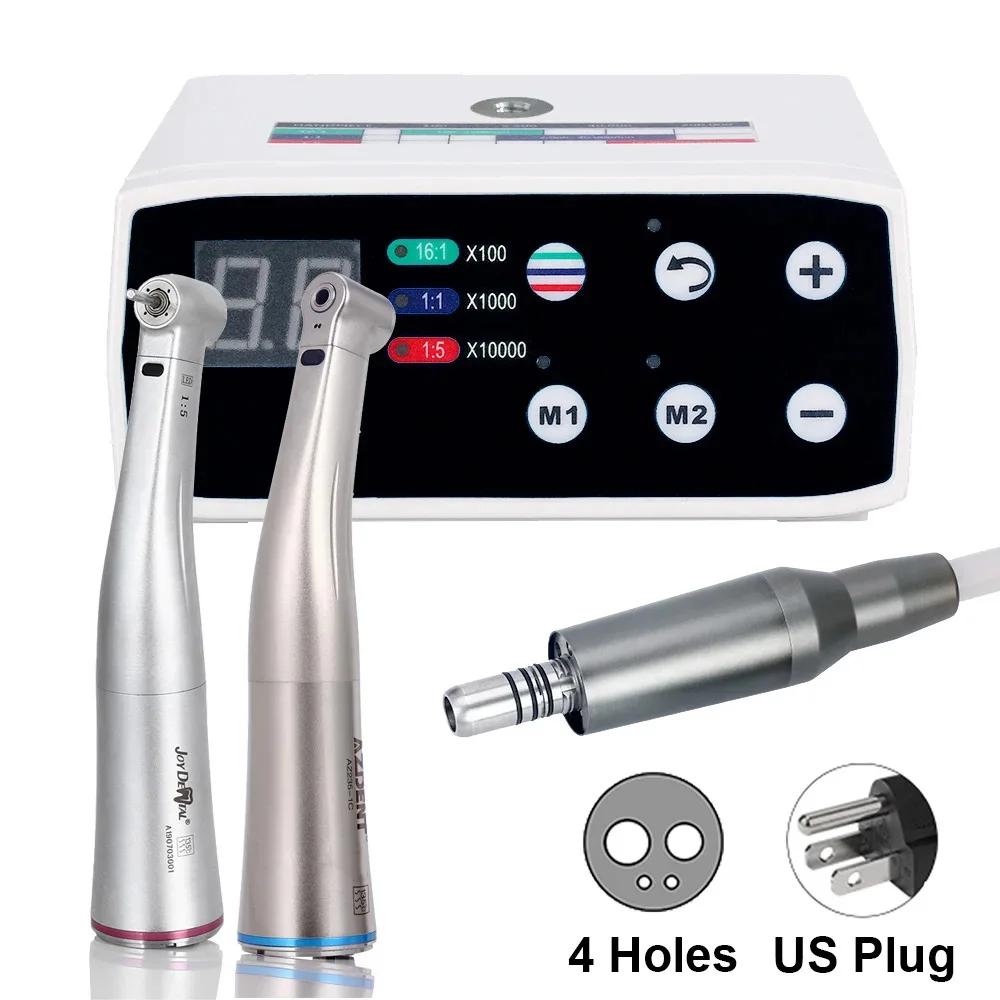

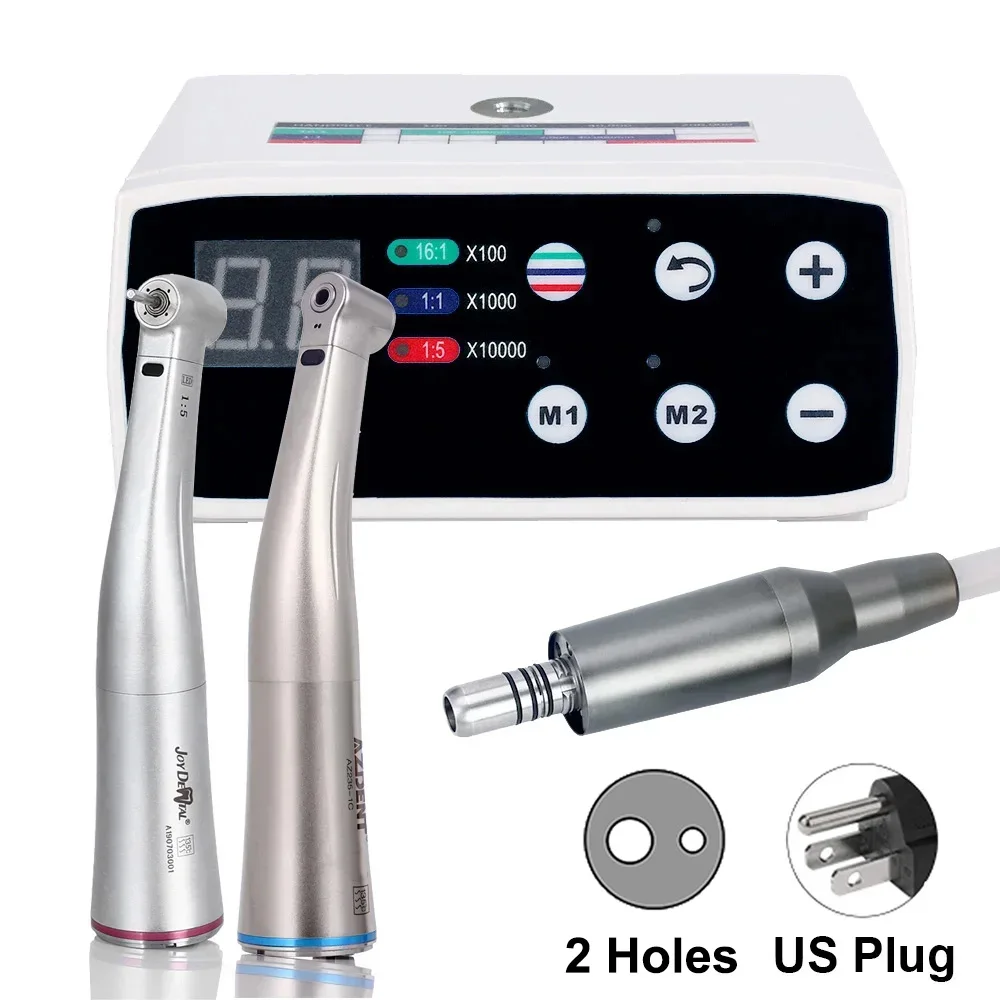

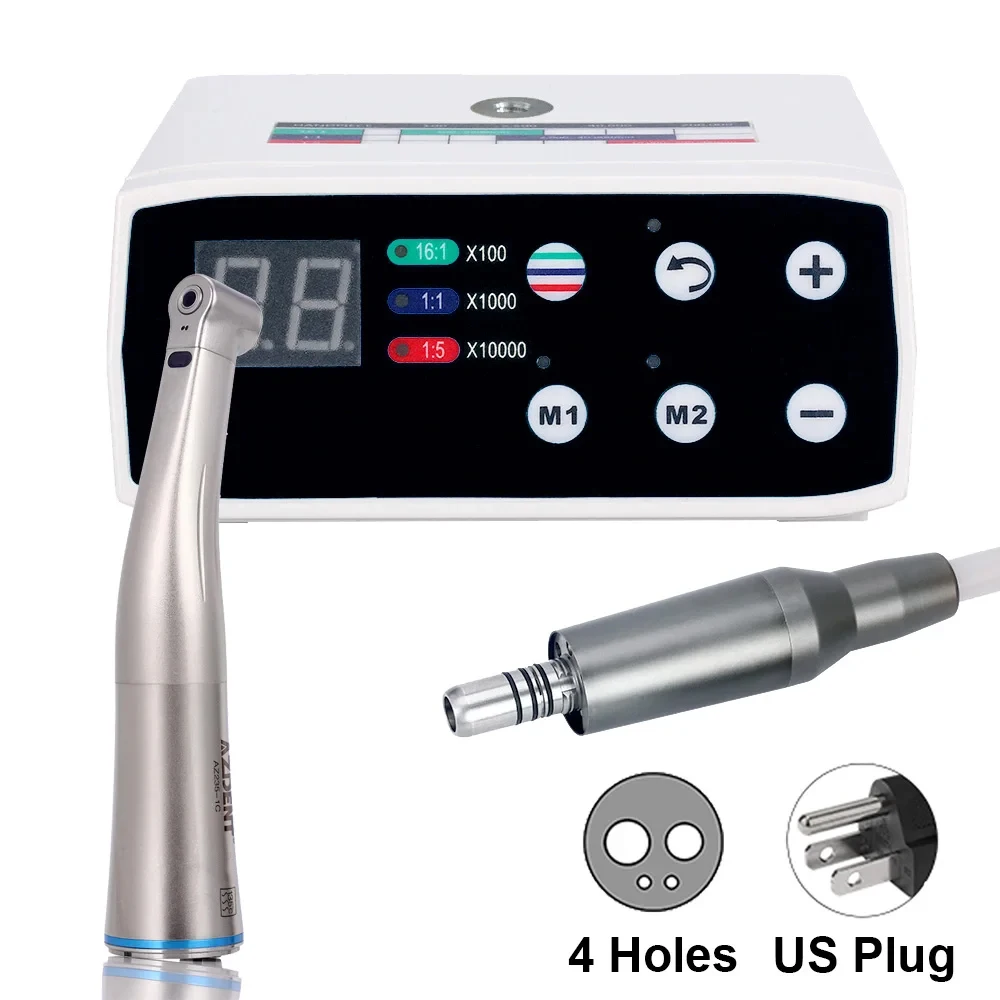

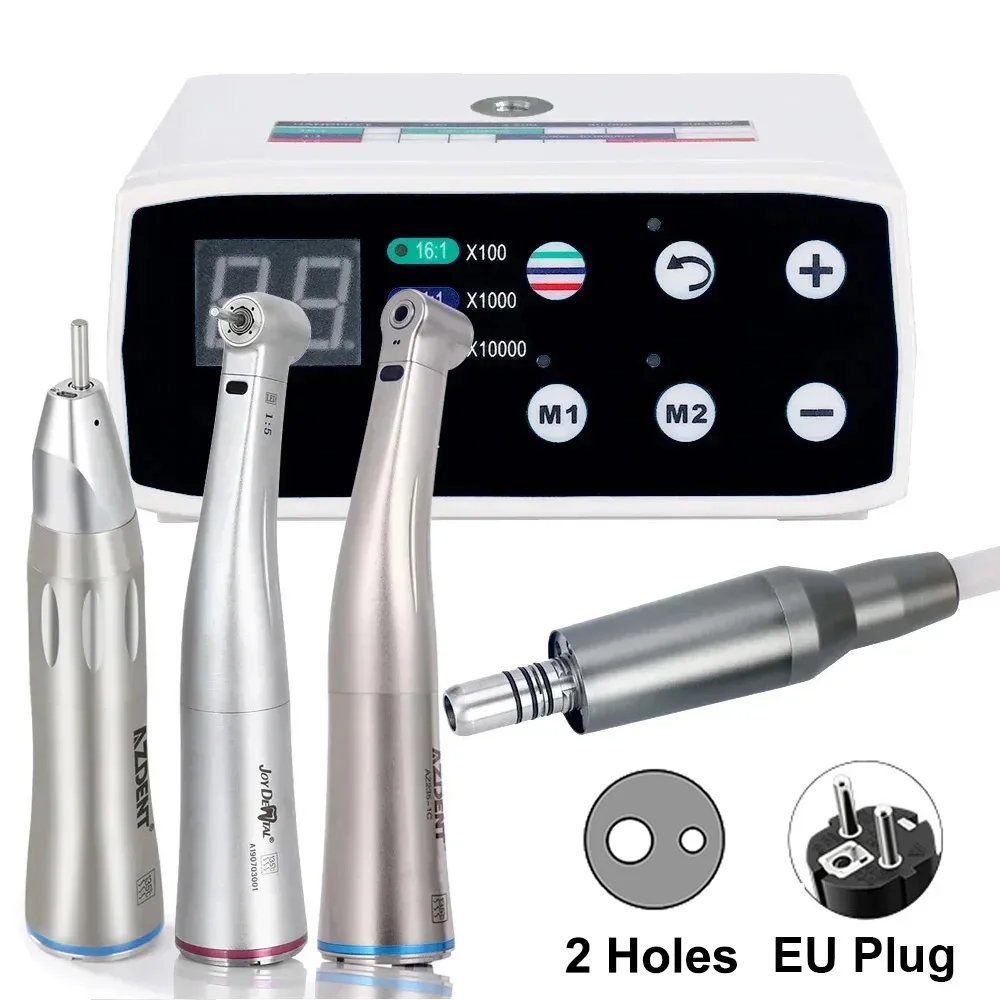

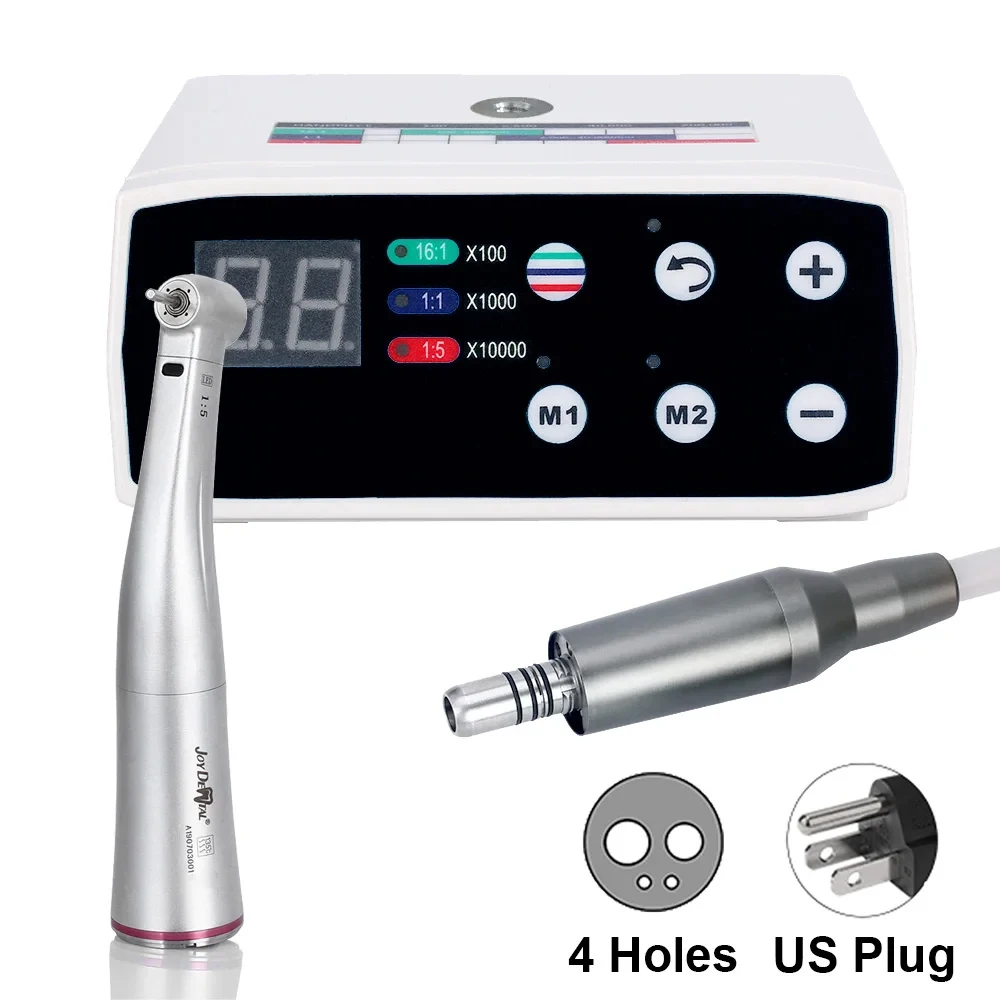

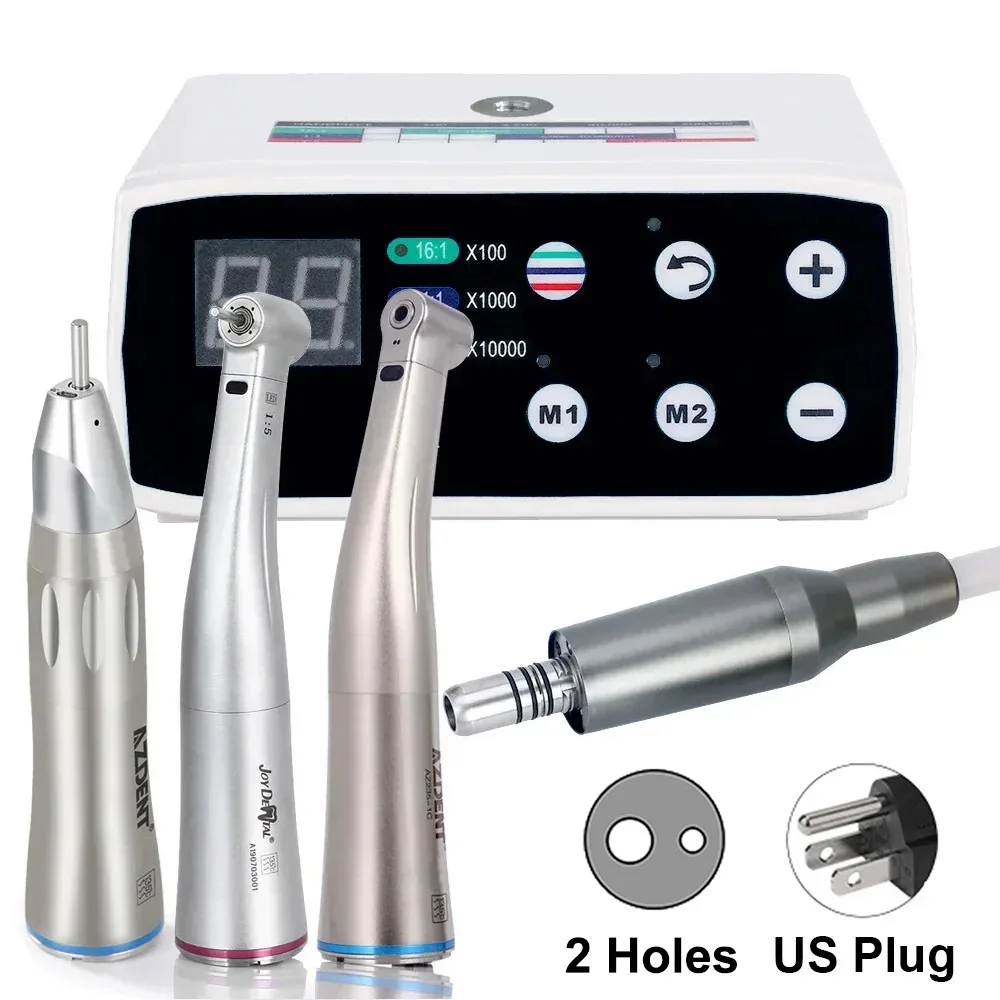

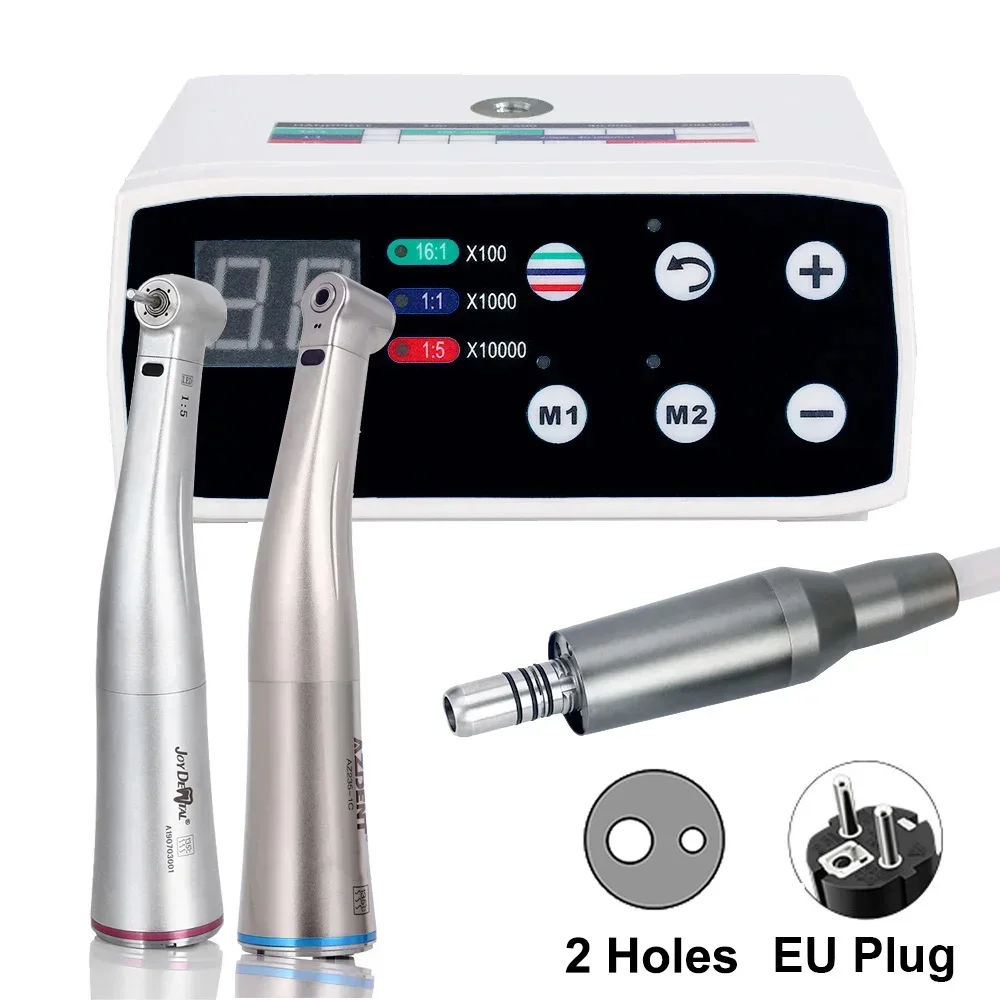

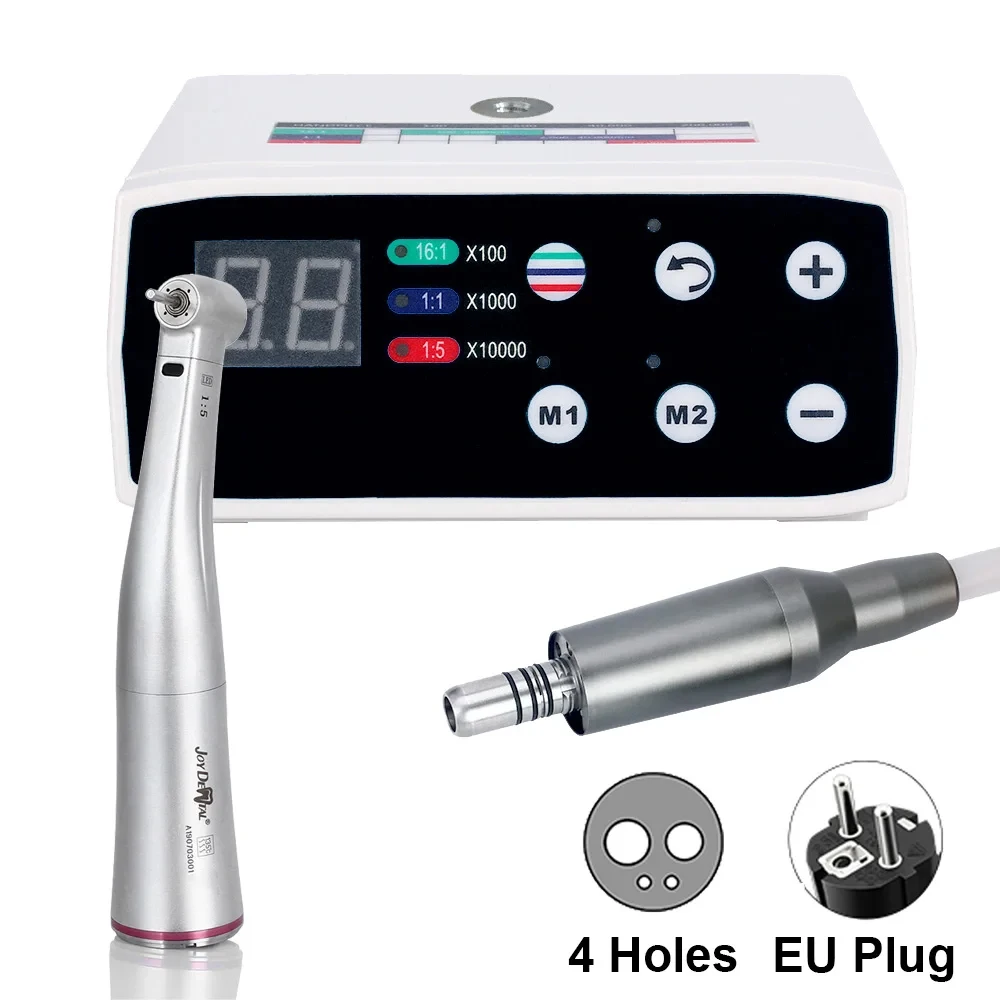

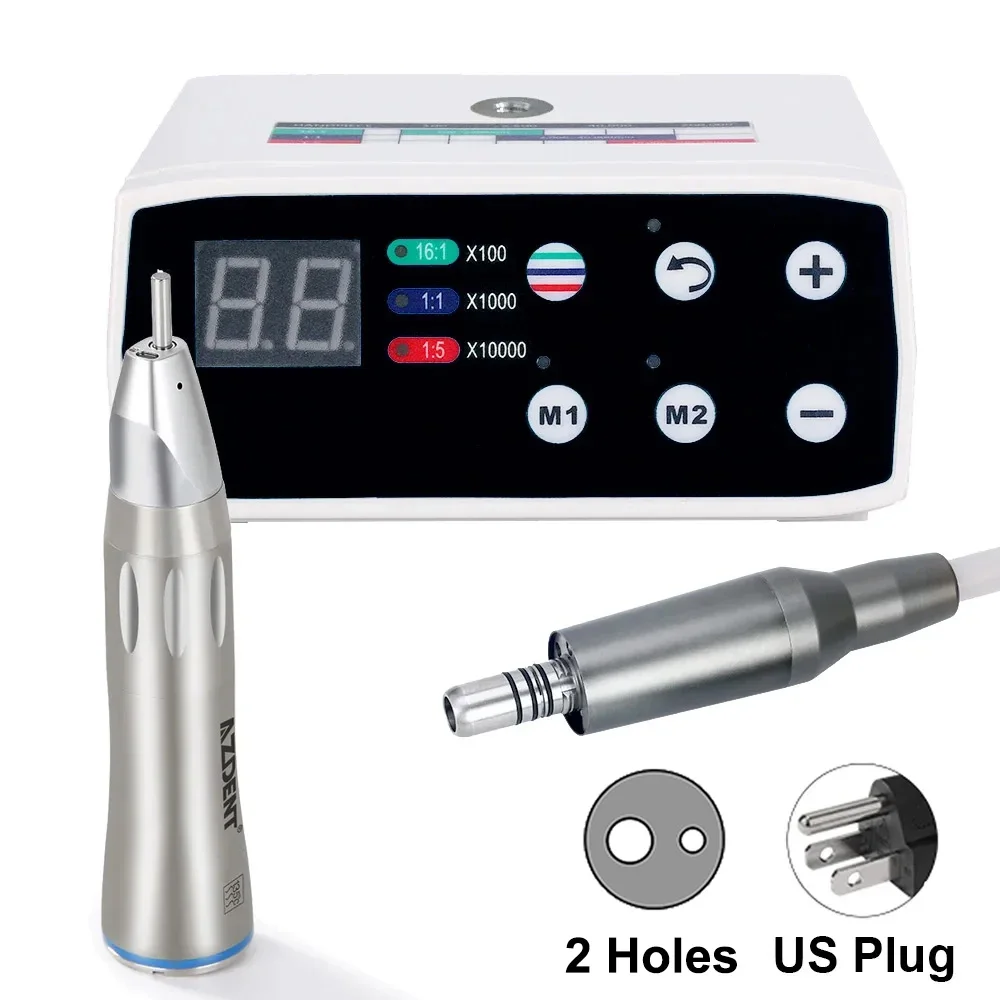

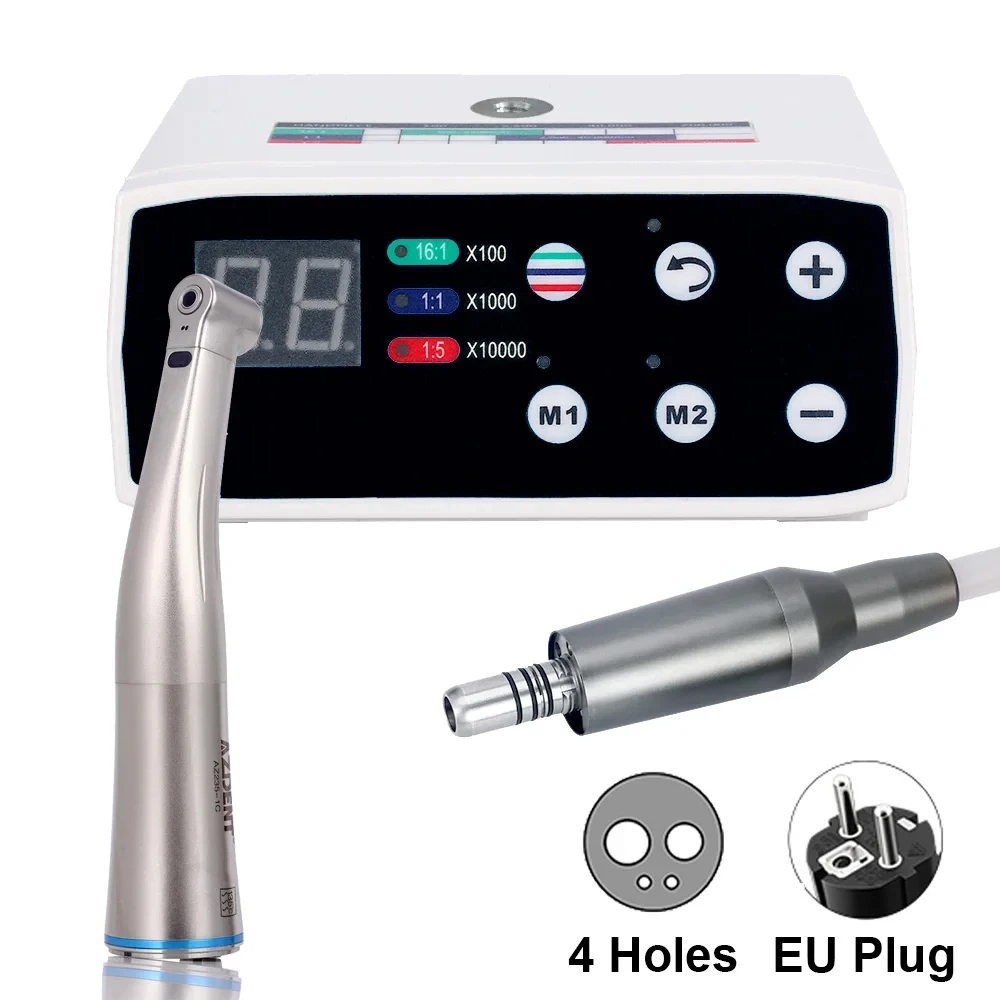

The difference between 2 holes and 4 holes

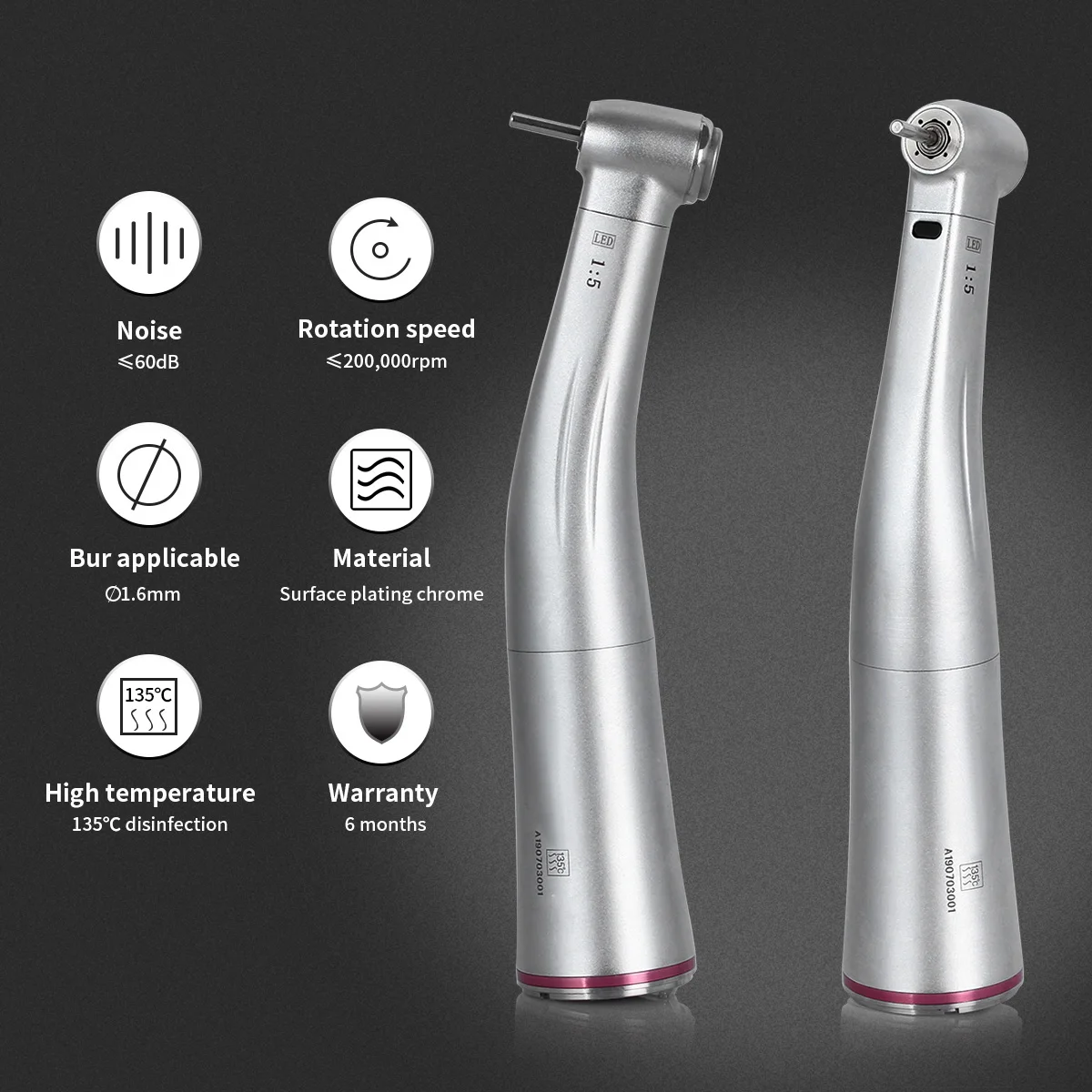

Dental 1:5 Fiber Optic Increase Contra Angle Handpiece

Skillful in workmanship,reliable in quality；
High brightness fiber optic lighting;
Dental 1:5 Increasing Fiber Optic Contra Angle Compatible with E-type Electric Motor;
Autoclavable.

Specification:
Gear Ratio：1:5
Ceramic bearing
Rotation Speed：Max.200,000rpm/min
Noise: ≤60dB
Bur Applicable: Φ1.59-1.60mm
Connector: E-type
Chuck Type: Push Button
Water Spray: Internal four way spray

Package：1PC/Box Handpiece

Dental 1:1 Optic Fiber Straight Nose Cone Low Speed Handpiece Inner Water Spay Channel

Technical:
1. Optic fiber inner channel low speed handpiece
2. 1:1 ratio
3. Bur applicable:HP φ2.35mm
4. Supply Air Pressure: 0.3Mpa
5. Rotation Speed: 20,000r.p.m
6. Noise: ≤70dB
7. Autoclavable 135°C
8. Inner water spray
9. Optic fiber superior service life
10. Connect: ISO E-TYPE

Package:
Handpiece*1
English Operation manual*1

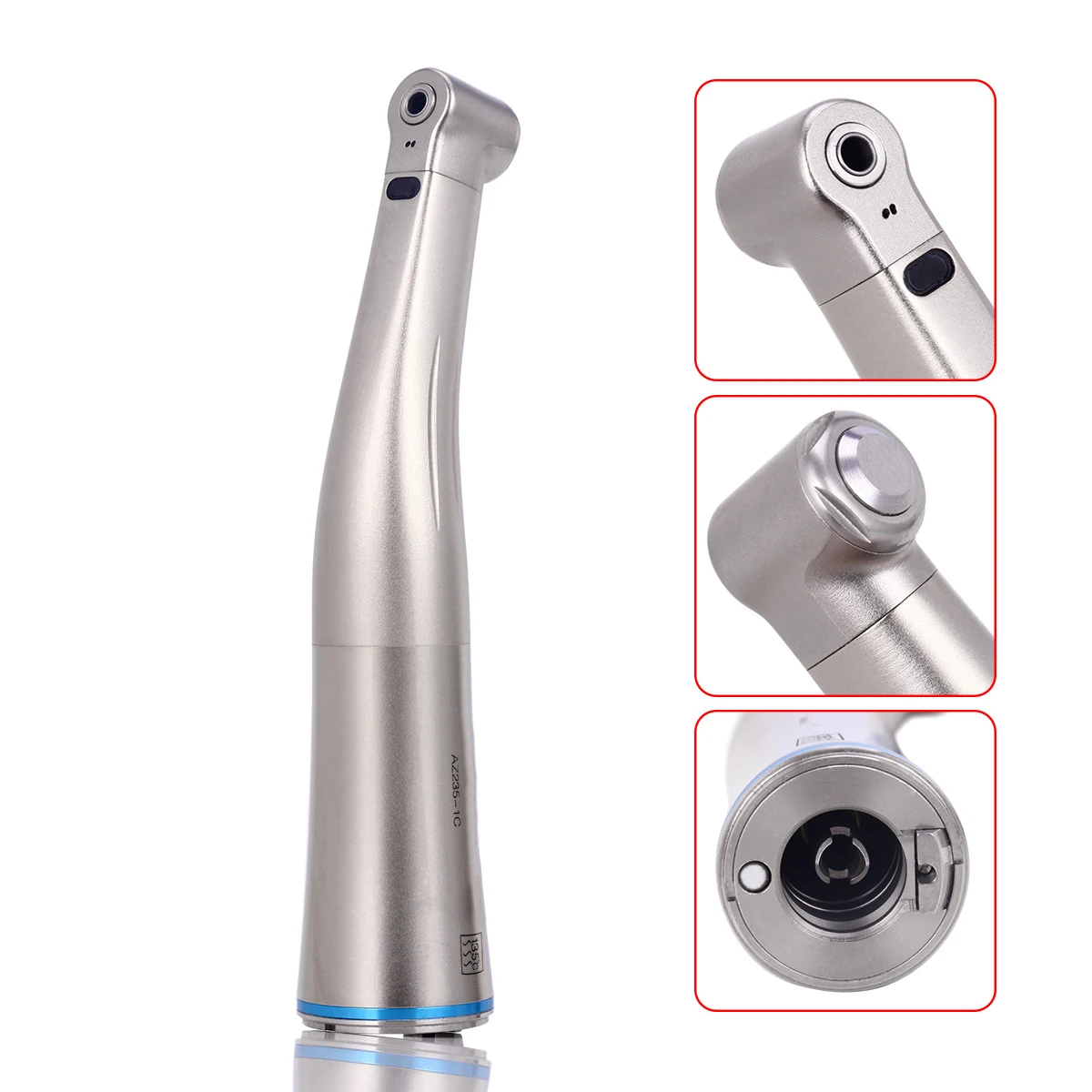

Dental 1:1 LED Fiber Optic Handpiece Internal Spray Contra Angle

Description:
1.Air pressure：0.3Mpa-0.35Mpa
2.Rotation Speed: MAX40,000rpm/min
3.Brightness: 32000Lux
4..135°C Autoclavable, Sterilization can be done with High-temperature and High-pressure repeatedly
5.Noise≤68dB
6. Chuck type:Push button
7.Bur Type:φ2.35mm
8.Internal water spray
9.Warranty: 1 year

Packing list:
Handpiece 1 pc
Operation manual 1pc
wrench 1pc
