Comfast 11KM Long Range Outdoor CPE 900Mbps 5Ghz Bridge Access Point Repeater Nanostation Amplifer Router Available in Russian

Difference:

CF-E319AV2 900Mbps 5G 26dbi Antenna 1000mW 24V poe Adapter 5-11KM

CF-E319AV2 Product Overview

Outdoor Point to point as wifi bridge 5-11km or more (no obstacles)

Suggestion:

There are many factors that affect distance, such as obstacles
(trees, walls, buildings, trucks, etc.), raw network signals, etc

If you want the good signal, we suggest you buy 2pcs!

Main Features

Package included :

900Mbps Outdoor Wireless Bridge/CPE

Longer distance I Strong antenna I Higher power | Adjustable angle

Excellent performance , Advantage realization

( COMFAST Nine Advantages of Wireless Bridge )

900Mbps HD transmission

CF-E319A V2 Supports 900Mbps wireless rate, 900M broadband,and transmits 20 high-definitioncameras without delay。

5.8GHz 900Mbps / 11KM transmission / HD transmission

The Measured TransmissionReaches 11KM Kilometers

Qualcomm chipset, together with PA can improve the transmissionpower The measured transmission distance in an open environmentis about 11KM

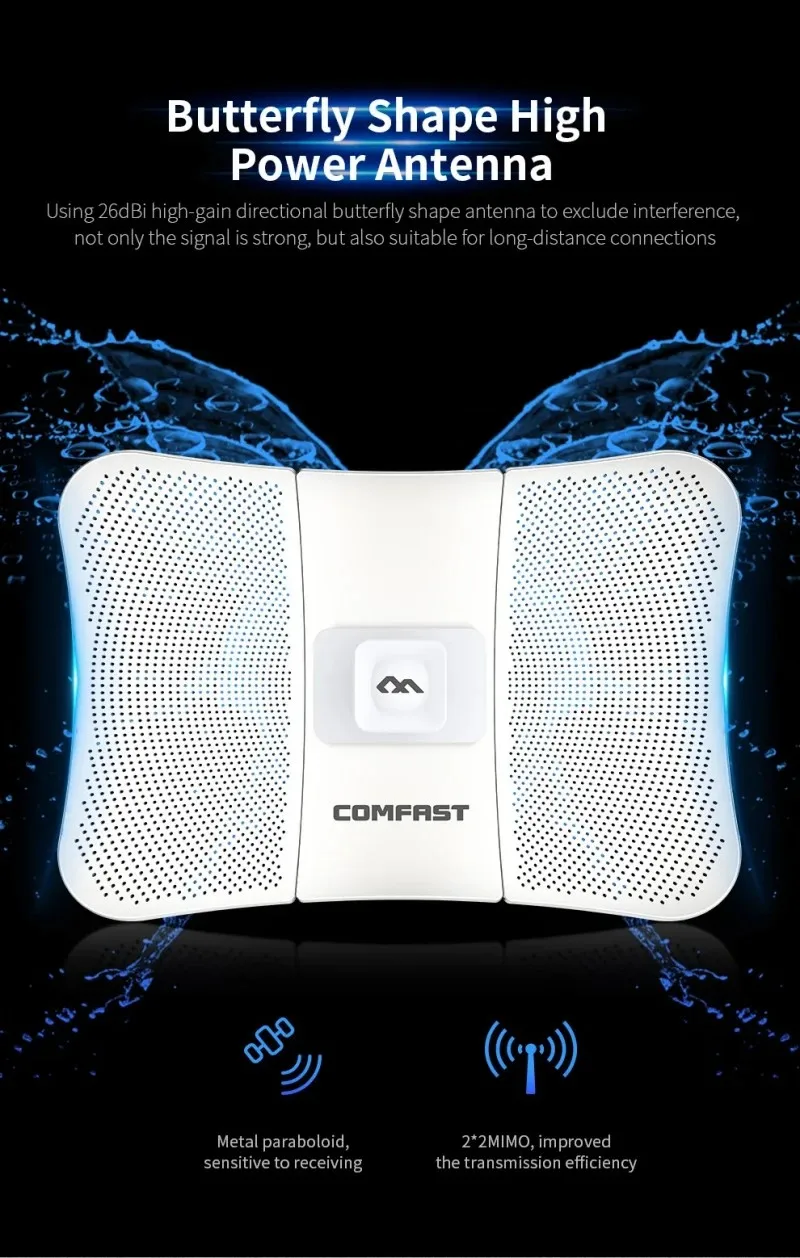

Butterfly Shape HighPower Antenna

Using 26dBi high gain directional butterfly shape antenna to exclude interference, not only the signal is strong, but also suitable for long distance connections

Metal paraboloid,sensitive to receiving

2* 2MIMO, improved the transmission efficiency

5.8GHz Effective Anti-interference

There are too manydevices in the 2.4GHz band and cause serious interference,CF-E319AV2 work under 5.8GHz, the interference is less and works more stable

Industrial design

1、Wind resistance antenna reflector

The reverse design of the through-hole antenna isadopted to effectively reduce wind resistance andresist stormy weather, and the product adaptability to the environment is greatly improved

2、Led indicator is easy to adjust

Equipped with signal status indicator, which is convenient for users toadjust the angle of the device, and the signal status is clear at a glance

Three lights are on,the signal is strongest

Wifi indicator flashing,Wireless data transmission

WAN/LAN indicator flashing, Network transmission data

Power light is on, the device is connected

3、The leveldesign

The level design can help users quickly judge whether theinstallation angle is accurate, and it is clear at a glance

4、Installation clip, flexible rotation

The innovative design of the installation clip, the bridge can berotated and adjusted at any angle, which greatly enhances theflexible application of the project

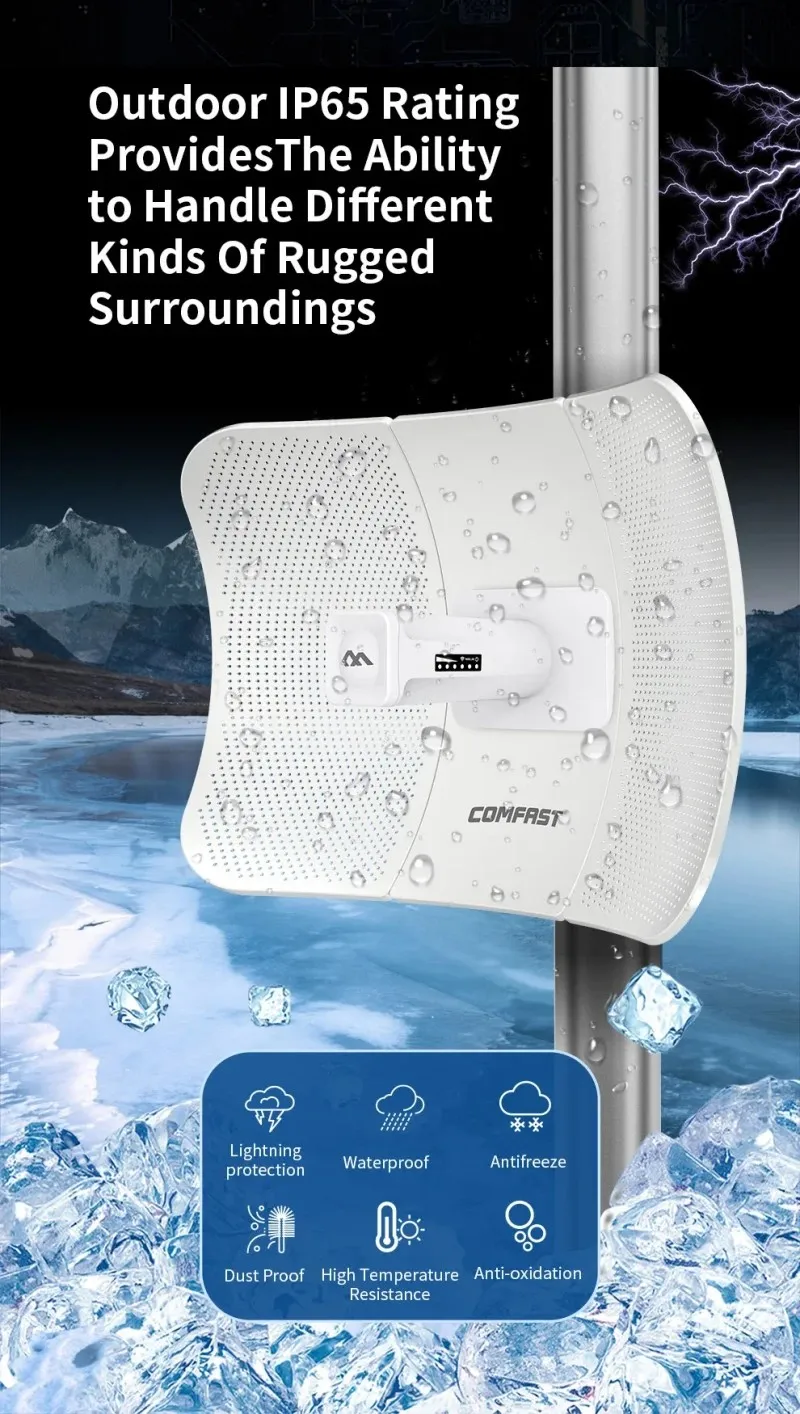

Outdoor IP65 RatingProvides, The Abilityto Handle DifferentKinds Of RuggedSurroundings

Lightningprotection

Waterproof

Antifreeze

Dust Proof

High TemperatureResistance

Ant-oxidation

POE Power Supply

CF -E319A V2 support POE power supply,It can support 100 meter long networkcable for power supply and data transmission at the same time. It ismore convenient to get electricity for outdoor projects, free from the shacklesof power supply problems. Makes project easier.

Hide SSID, Refuse to Backup The Network

The wireless bridge supports SSID broadcast hiding, which can easily solvethe troubles of the backup network and ensure the stability of the project

Applicable Scenarios：

Farming monitoring / Forest monitoring / Driving school monitoring / Road monitoring / Scenic spot monitoring

Site monitoring

Network Application Scenarios：

Cell network transmission  / Scenic network transmission / Network transmission in remote areas

Schematic Diagram ofWireless Bridge Connection

01 /Point to point connection

Multiple camera connection: method 1: Connect the camera to the switch,then connect to the comfast bridge, and transmit data through theone to-one bridgeone- to-one bridge

02 /Multi point to Multi point connection

Multiple cameras connection method 2: If the cameras are far apart, you can configure a pair of bridges for each camera, and the monitoring center uses a switch to connect the AP terminalstogether and then connect to the hard disk video recorder

03 /Point to Multi point connection

If the angle between the location of the camera and the monitoringcenter is less than 120 degrees, point-to multipoint can be consideredto reduce the cost of the transmitter bridge, but the prerequisites need to meet the angle and broadband requirements

In the wireless monitoring transmission, it is recommended to use the ilustratedmethod forpoint- to point or point: to multipoint transmission. The transmissionangle of the wireless bridge is 120 degrees. In the point-to point transmission,please adjust the angle of the device
