COMFAST Wi Fi Bridge 1KM 2.4Ghz 300Mbps Outdoor CPE Wireless Access Point Long Range Router PoE 9dBi Transmission Waterproof

COMFAST Wi Fi Bridge 1KM 2.4Ghz 300Mbps Outdoor CPE Wireless Access Point Long Range Router PoE 9dBi Transmission Waterproof

Feature:

1.This cpe router produce 2.4G 300Mbps, Long Range WiFi Extender Outdoor Wireless Bridge CPE with Wifi indicator suitable check wifi strength

2.Build in 9dBi MIMO panel antenna(embedded) ,High Gain Antenna for More Range

3.Waterproof/dust proof/lighting protection; Operating Temperature: -30℃-55℃ Storage Temp: -40℃-70℃

4.1*10/100Mbps WAN/LAN RJ45 Ethernet Port

5. Qualcomm QCA9533 650Mhz Grade CPU, RAM:64MB FLASH:8MB; High quality chipset make cpe stable tranmission

Specification:

1.Brand Name:COMFAST

2.Model Number:CF-E130N

3. Qualcomm chipset 650Mhz CPU

4. 9dbi orientation Antenna

5. IEEE802.11b/g/n

6. 300Mbps Transmission Rate

7. 1*10/100Mbps WAN/LAN RJ45 Ethernet port

Suggestion:

The distance “1KM” mean 2pcs CPE based on point to point bridge mode.

There are many factors that affect distance, such as obstacles
(trees, walls, buildings, trucks, etc.), raw network signals, etc
If you want the good signal, we suggest you buy 2pcs!

Package included :

CF-E130N CPE *2
Poe Adapter*2
Quick install guide *2
Stainless Steel Ring *4

Outdoor 300Mbps Long Range WiFi Bridge

Point to Point reach max 1-3KM

2.4G 300Mbps 9dBi 1-3KM

Wireless Wifi Outdoor Bridge

IP65 Available

Easy to install / Convenient

Easy to set / Easy to handle

POE power / Supply Flexible

Low-power / Energy Saving

SSID Hiding / High Security

Qualcomm Chip / Excellent performance

Auto Channel Selection

300Mbps

CPE work in the 2 .4GHz band, the transmission rate reach to 300Mbps, ensure monitor image quality is stable, clear, and not dropped

withstanding temperatures ranging from -40℃～55℃

IP65 Watetrproof Plastic Shell

2KV Lightning Protection

Power Supply: 15V Poe Power

Signal tracking & Precise positioning

The CPE comes with signal indicator, users can adjust the angel of the CPE according to the signal strength, easy to achieve high quality of long -range wireless transmission effect

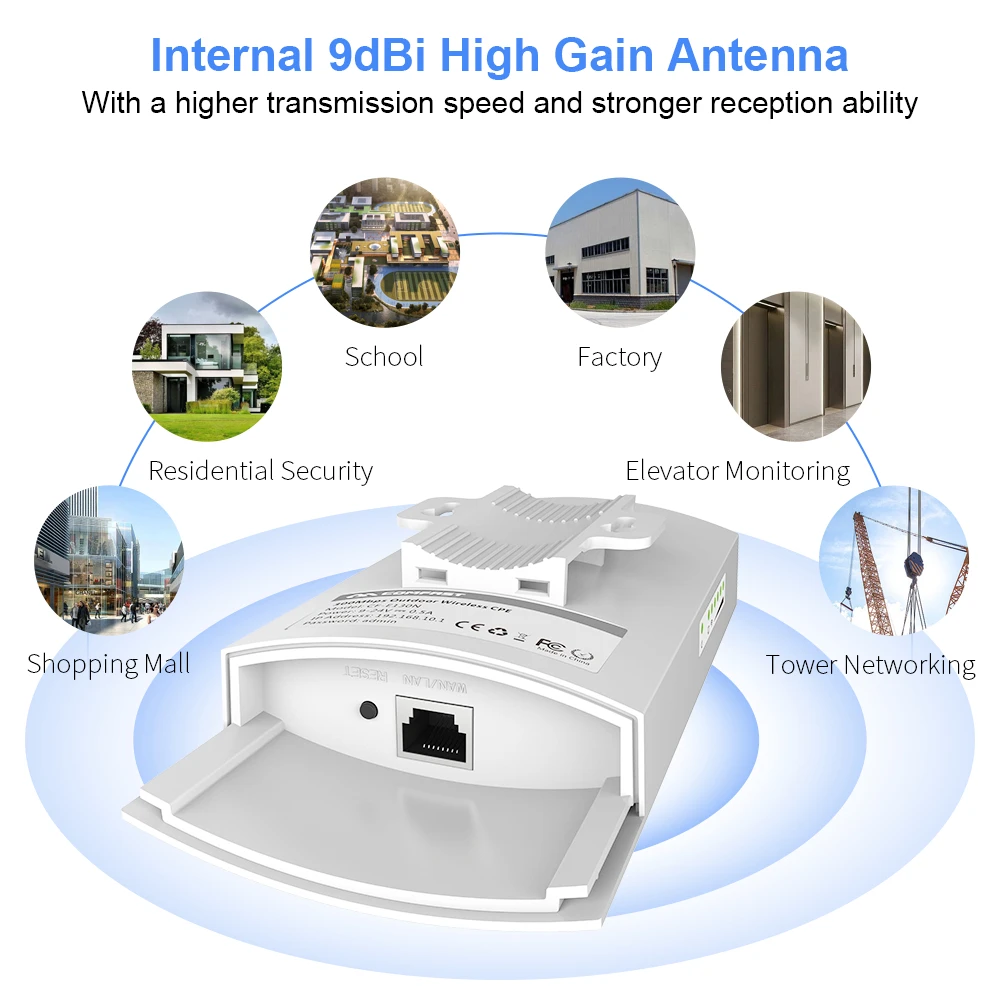

Internal 9dBi High Gain Antenna

With a higher transmission speed and stronger reception ability

Shopping Mall/ Residential Security/ School / Factory/ Elevator Monitoring/ Tower Networking

Master CPE view

Slave CPE view

Master CPE view

Slave CPE view

Range:1Km,1080P IP Camera

Smooth Video

The CPE WAN port connect to POE adapter POE port

The IP Camera connect to POE adapter LAN port

The CPE WAN port connect to POE port of POE adapter

The switch connect to POE port of POE adapter

Q&A
Q1.How long the range of the Antenna  ?

A:This is a directional Antenna , For no obstacles environment 2pcs Point to Point can reach 1KM

Q2.How Many piece included in the package ?

A:There have 2 choices, when you make order it will show 1pcs or 2pcs, If you want to reach long distance and better signal ,we suggest that you choose 2pcs,(Wifi signal is affected by many factors,such as trees, walls, buildings, trucks, etc., raw network signals)

Q3.Does it work as a WiFi repeater?

A:The Antenna support AP/Router/Repeater/Bridge mode can set as repeater mode , just repeater mode will have signal loss , generally we suggest set 1pcs connected with router by network cable as AP mode and another 1pcs to receive the signal from the fist one set as bridge mode.

Q4.If use 1pcs can reach 300m?

A: If just use 1pcs this need depond on the real using environment ,Because just use 1pcs ,then can not set as bridge mode , the range will have limited,wifi signal be effected by many factors,trees,walls , trucks …

Also if the receive wifi device with low power ,also can not have a good range.

Q5.If the antenna can be connected with 48V poe switch?

A: The Antenna can not connected with 48V poe switch ,If need connected with poe switch please connected with 9-24V Poe Switch

Q6.Does it included the Poe Adapter ?

A: Yes, the packaged included the 15V Poe Adapter

Q7.Does the antenna wifi coverage 1km?

A: The antenna is directional antenna , not the omnidirectional , need 2pcs point to point no obstacles environment can reach 1km.
