AZDENT Dental X-Ray Digital Sensor Intraoral Digital System HD Image Dentistry Tools Compatible with Different X-ray Generators

Dental Sensor X-Ray Digital Sensor Intraoral Digital System HD Image Dentistry Tools

Feature:
1.If there’s only one device, you may select “Single-User” installation. If the sensor is connected to multiple device, select “Host” for the device connected with the sensor and other devices select “Extension” to install, to achieve multi-machine sharing.

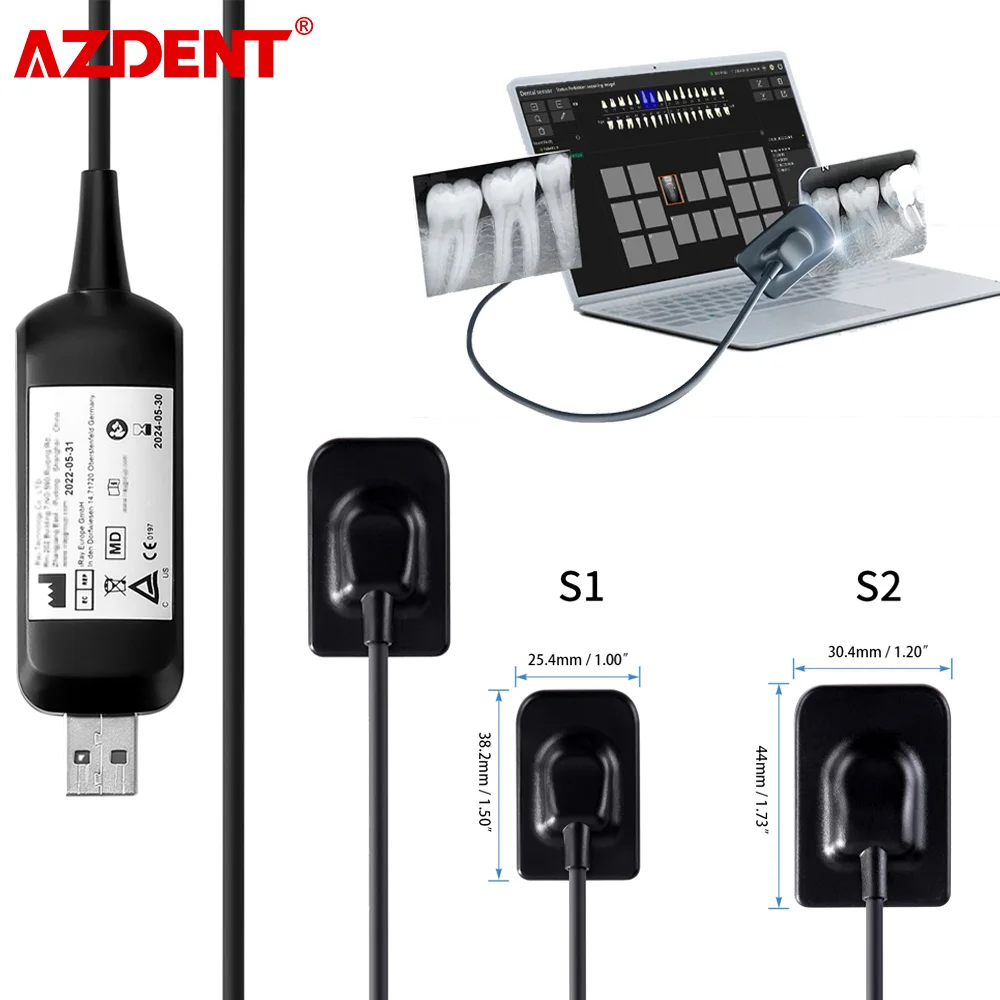

2.The sensor is available in two sizes, with rounded corners and a thickness of only 4.4mm, making it more comfortable to use.
3.Cables are durable，have been tested for 80,000+ bends.
4.CMOS detector technology with CSI scintillator. Ensures optimal resolution Low dose clinical imaging.
5.Compatible with different X-ray generators, easy to use.
6.No consumables and more cost-effective than traditional film.

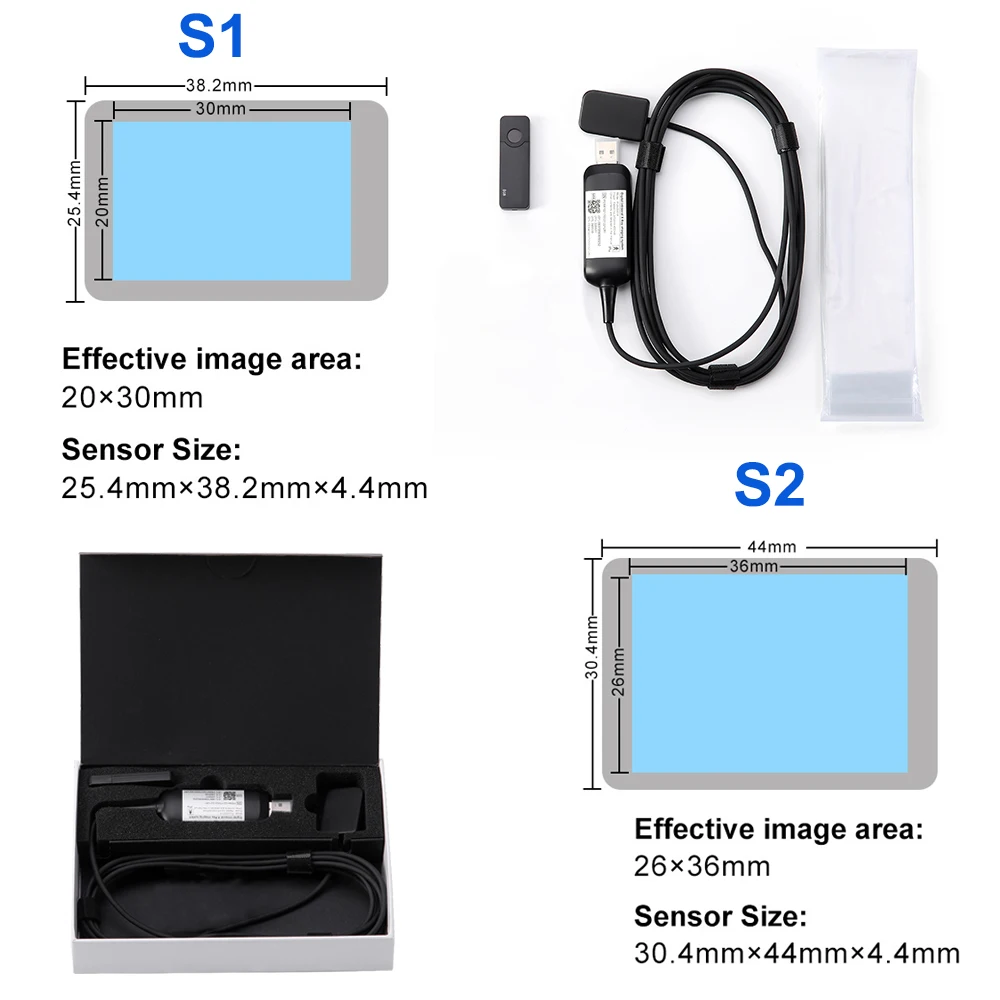

S1 S2 description：

Hardware and software requirement：

Processor ：1.0GHz or above
Memory ：2GB or above
Hard disk ：64GB or above
Display resolution ：1440*900 or above
USB port ：USB2.0
Operating system ：Windows 7、Windows10、Windows11

Technical parameter：

Packing list：

1. Sensor
2. USB flash disk (Software)
3. Protective sleeve
4. Dongle

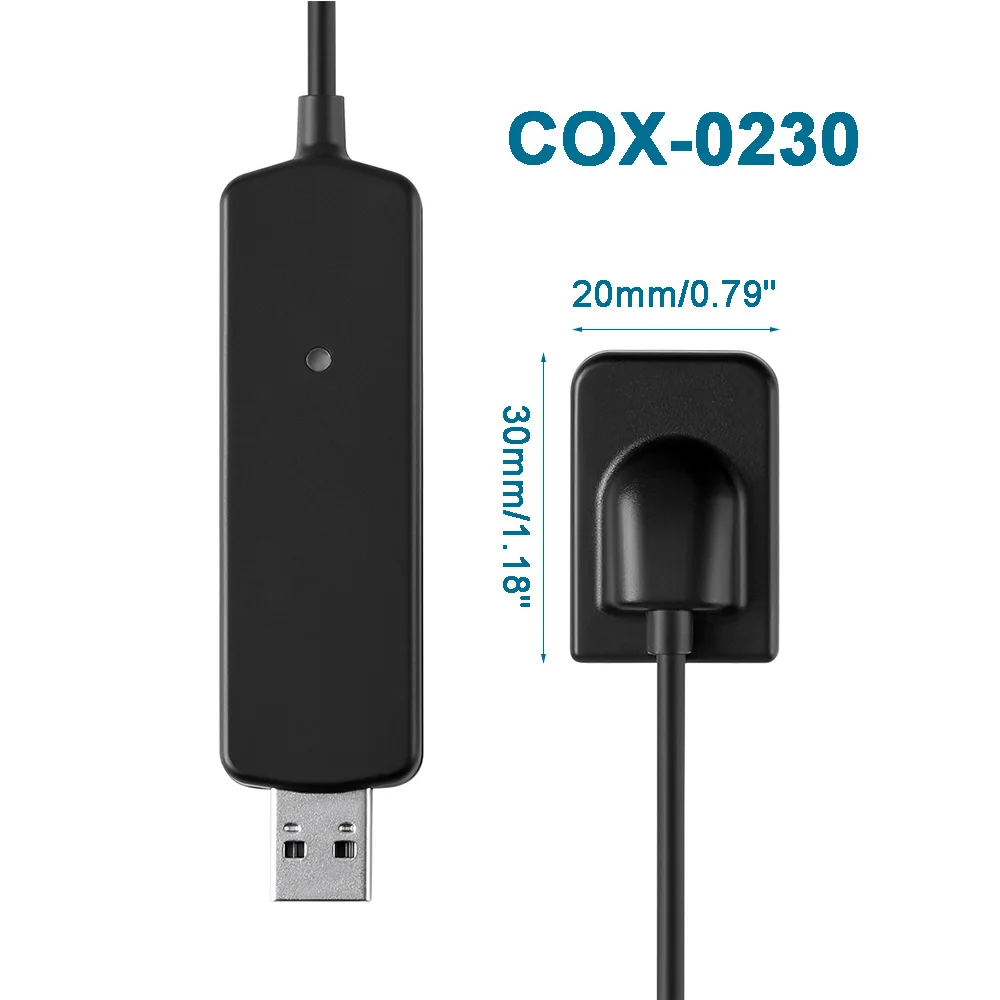

COX-0230 description：

Feature:
1.CMOS chip, add technical grade fiber plate, high efficiency and definition X-Ray transfer advanced technology restore the original clear tooth, make the image clear and sense.
2.One-Click Setup: Seamlessly install and activate the sensor with minimal effort—no complex calibration required.
3.Advanced CMOS Technology: Equipped with high-tech fiberboard and innovative X-ray transmission for crystal-clear imaging, enabling the detection of even the smallest root canals.
4.Multilingual Software: Supports multiple languages, ensuring global accessibility.
5.Hassle-Free Activation: Automatically calibrates for immediate use.
6.Exceptional Stability: Guarantees over 50,000 uses with no compromise in image quality.
7.Reliable Durability: Built with robust materials and components for long-term use.
8.Practical Design: Compact, space-saving, and optimized for high-resolution chairside imaging.

Computer Recommended Configuration：

CPU：Intel(R) Core(TM) i5-1035G1 CPU @1.00GHz 1.19GHz
Memory：16GB
Hard Disk：477G
Monitor：Resolution 1920×1080
Graphics Card：NVIDIA GeForce MX350
Operating System：Windows 10 64-bit and compatible versions

Technical parameter：

Model：COX2030
Active Area：20mm * 30mm
Gray Scale Range ：16384 Levels（0～16383）
Power Supply ：5V
Interface：USB2.0
Power Consumption ：＜2W
Sensor Dimensions (L*W*H) ：37.4 * 25.1 * 5.1 mm
Cable Length ：96.3 * 24 * 10 mm

Packing list：

1. Sensor
2. USB flash disk (Software and manual)
