COMFAST 1KM Point to Point Digital Long Range Outdoor CPE Wireless AP Bridge 300Mbps WIFI CPE WI-FI Antenna Nanostation

Mulai: ~~$65~~ $44

Diskon 32%

Color
Bundle	1pc2Pcs More Cheaper
Ships From	CHINA Hapus

- +

Chat Via WhatsApp

Alasan berbelanja di Adiashub

Gratis Pengiriman dari Luar Negeri
Pesanan diproses & dikirim lebih cepat
Jaminan produk sampai & diterima
Garansi uang kembali

Deskripsi

Berat	5 gram
Dimensi	6 cm
Brand Name	comfast
With Modem Function	No
Recommended Uses	Home
Wireless Communication Standard	802.11.g
Origin	Mainland China
Frequency Band Class	Single-Band
Frequency	2.4 GHz
Antenna Type	Fixed
Wireless transmission rate	300M
Hign-concerned Chemical	None
Type	Wireless
Support Mesh	Not supported
Wi-Fi Supported Frequency	2.4G
5G Wi-Fi Transmission Rate	None
2.4G Wi-Fi Transmission Rate	300 Mbps
Function	Firewall
Certification	CE
Number of USB Interfaces	None
Max. LAN Data Rate	300Mbps
Standards And Protocols	Wi-Fi 802.11g
Wi-Fi Transmission Standard	802.11g
Wired Transfer Rate	10/100Mbps
Package	Yes
Supports WDS	No
Supports WPS	No
Application	Soho
wifi extender long range wifi frequency	2.4Ghz
1km Outdoor wifi antenna olor	white color
wifi antenna long range Frequency Range	Single frequency (2.4-2.4835GHz)
Wifi cpe Wireless Protocol	802.11b, 802.11g.802.11n
outdoor router Max. LAN Data Rate	300Mbs
315D access point wifi Power	19dbm
315D Long Range wifi bridge Poe	9-24V poe power adapter
1km outdoor wifi bridge	wifi access point wifi repetidor antenne wifi
Long distance wifi bridge Antenna	Outdoor comfast wifi extender router
point to point wireless bridge	access point wifi
digital display Outdoor Router	digital outdoor wifi router
Digital Dial outdoor Antenna	Digital display WiFi bridge
Outdoor Digital display WiFi Repeater	Point to point Outdoor Digital WiFi Router
Long range WI-FI Antenna Nanostation	1km Outdoor Wireless AP Bridge
SKU	1005005507434488
Kategori	Komputer & Laptop, Networking
Tag	Fashion Wanita, Komputer & Laptop, Networking, Pakaian Dalam Wanita

Comfast 1KM Long Distance Outdoor Digital Dial Wifi Router 300Mbps 2.4Ghz Wirelsss Transmission AP Bridge Wi Fi Amplifer Antenna Repeater

Difference:

CF-E130NV2: 9dbi directional; 2.4Ghz 300Mbps; 1*10/100Mbps WAN/LAN RJ45 Ethernet port; 15V POE power supply

CF-E315D: 12dBi directional; 2.4Ghz 300Mbps; 1*10/100Mbps WAN RJ45 Ethernet port; 1*10/100Mbps LAN RJ45 Ethernet port; 9V~24V POE power

Feature:

CF-E315D is a wireless bridge working in the 2.4GHz frequency band, which is suitable for the transmission of wireless signals in security monitoring projects. It has the characteristics of flexible and convenient installation, simple settings, and stable transmission.

Digital display WiFi bridge, Precise pairing,Poe power supply, flexible and convenient, cost saving
.It is a necessary tool for wireless monitoring projects.

Specification:

1.Comfast Model Number:CF-E315D

2.Digital Display, Dial Pairing

3.MT7628KN Chipset

4.2*12dbi Built in intelligent Antenna

5. IEEE802.11b/g/n

6. 300Mbps Transmission Rate

7. 1*10/100Mbps WAN/LAN RJ45 Ethernet port

1*10/100Mbps LAN/LAN RJ45 Ethernet port

1*RESET/Digital Switch

1*AP/STA switch

1*DC Power supply

Suggestion:

The distance “1KM” mean 2pcs CPE based on point to point bridge mode.

The antenna need pairing, so need choose 2pcs ,

If you just choose 1pcs can only working as AP/Router mode

There are many factors that affect distance, such as obstacles
(trees, walls, buildings, trucks, etc.), raw network signals, etc
If you want the good signal, we suggest you buy 2pcs!

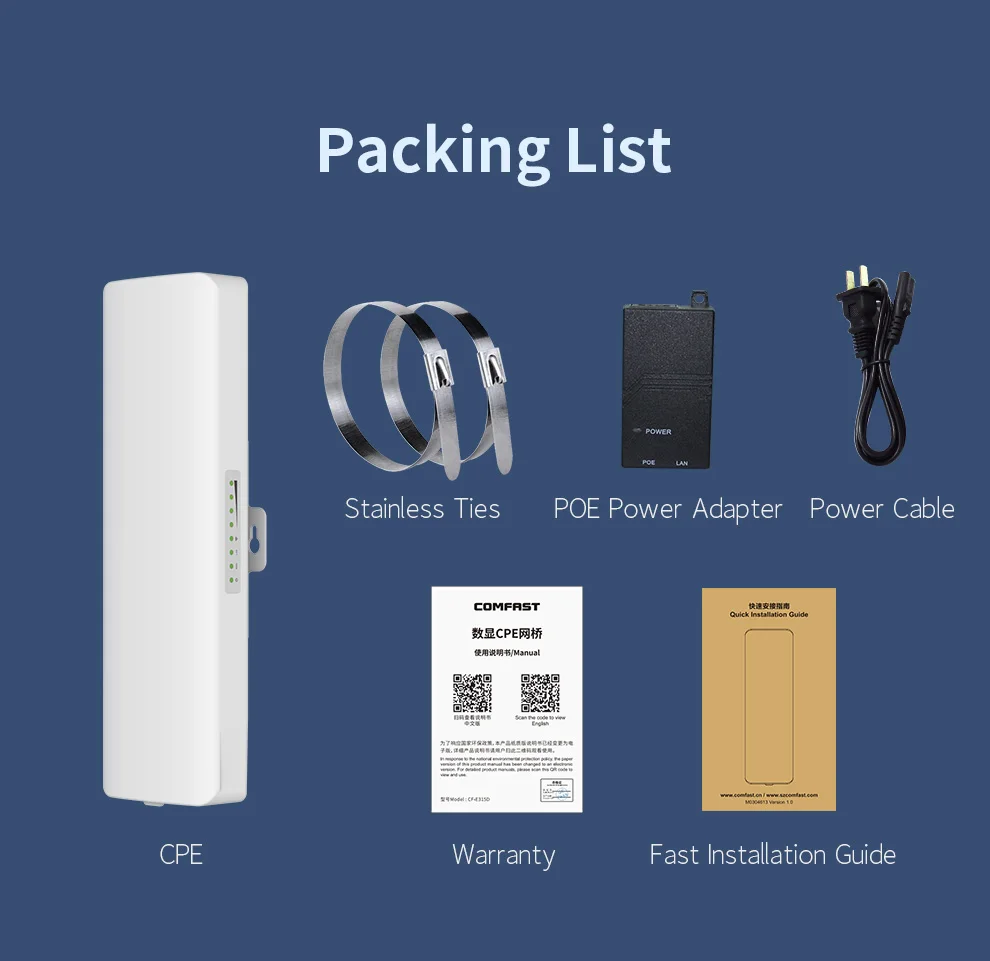

Package included :

1/2*Wireless bridge

1/2*stainless steel cable tie

1/2* Poe Adapter

1/2*instruction manual

1/2 power Cable

1/2 Warranty

COMFAST 1KM Point to Point Digital Long Range Outdoor CPE Wireless AP Bridge 300Mbps WIFI CPE WI-FI Antenna Nanostation

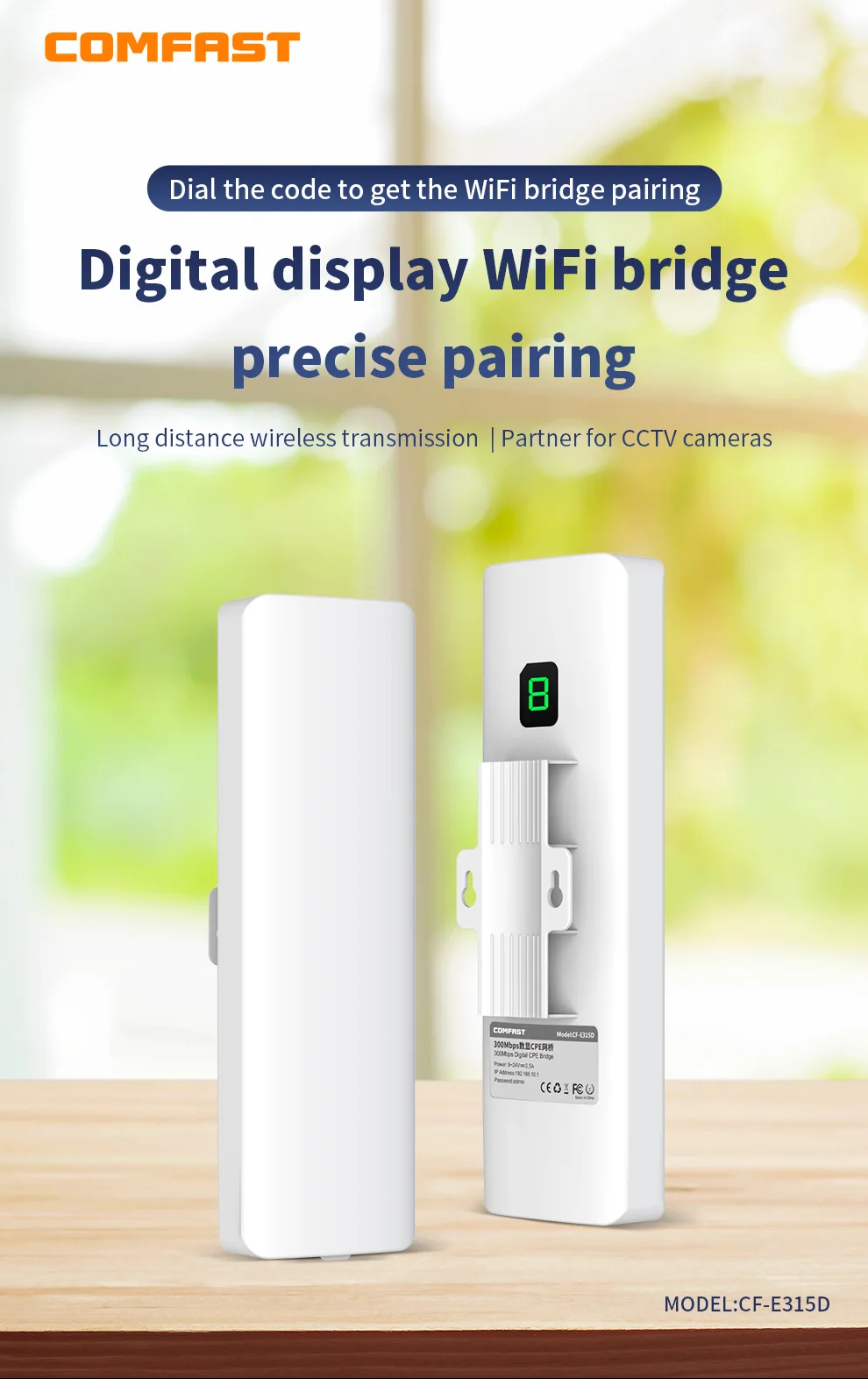

Dial the code to get the WiFi bridge pairing

Digital display WiFi bridge, precise pairing

Long distance wireless transmission Stale performance Partner for CCTV cameras COMFAST 1KM Point to Point Digital Long Range Outdoor CPE Wireless AP Bridge 300Mbps WIFI CPE WI-FI Antenna Nanostation

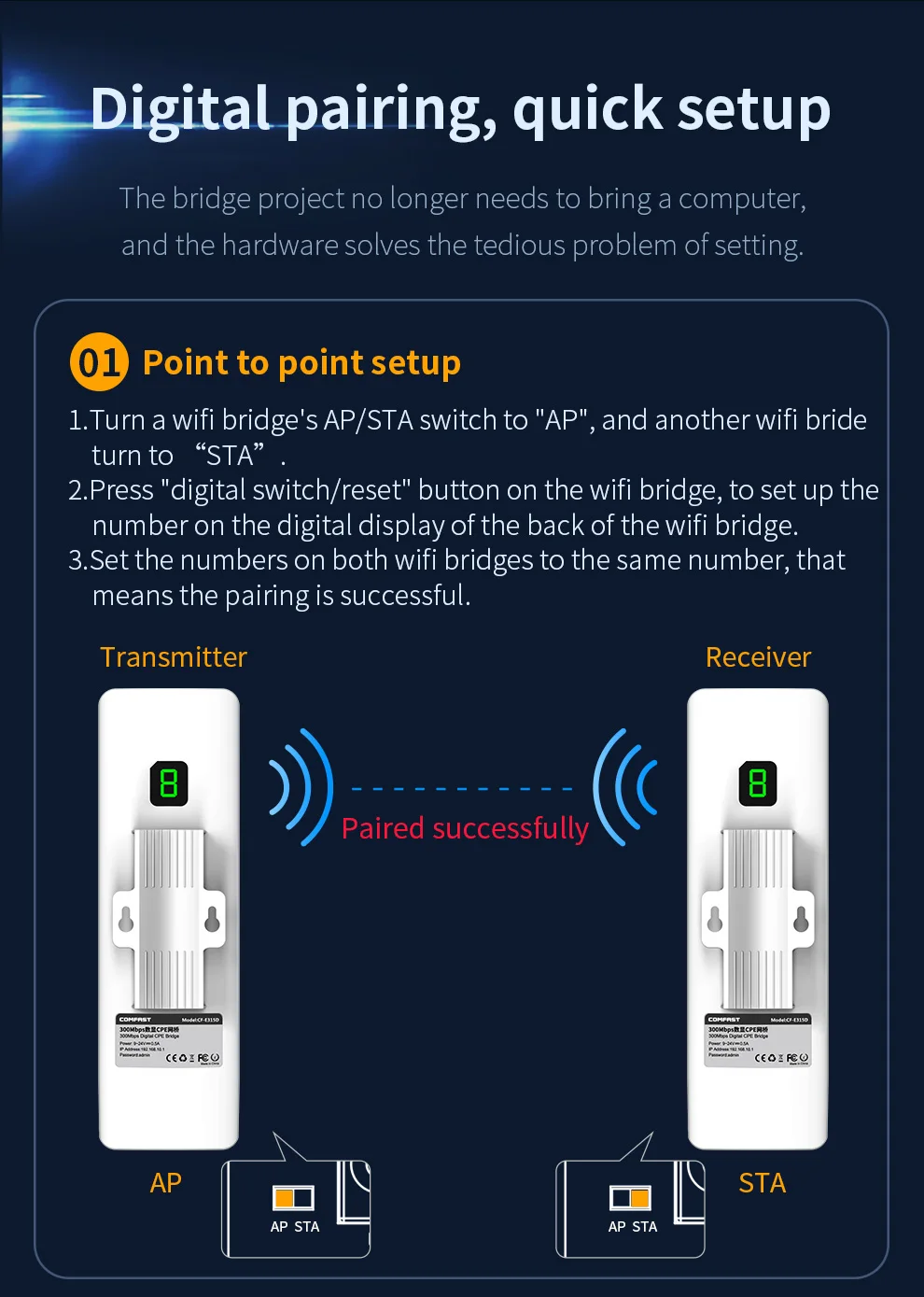

Digital pairing, quick setup

The bridge project no longer needs to bring a computer, and the hardware solves the tedious problem of setting.

Point to point setup

1.Turn a wifi bridge’s AP/STA switch to “AP”, and another wifi bride turn to “STA”.

2.Press “digital switch/reset” button on the wifi bridge, to set up the number on the digital display of the back of the wifi bridge.

3.Set the numbers on both wifi bridges to the same number, that means the pairing is successful.

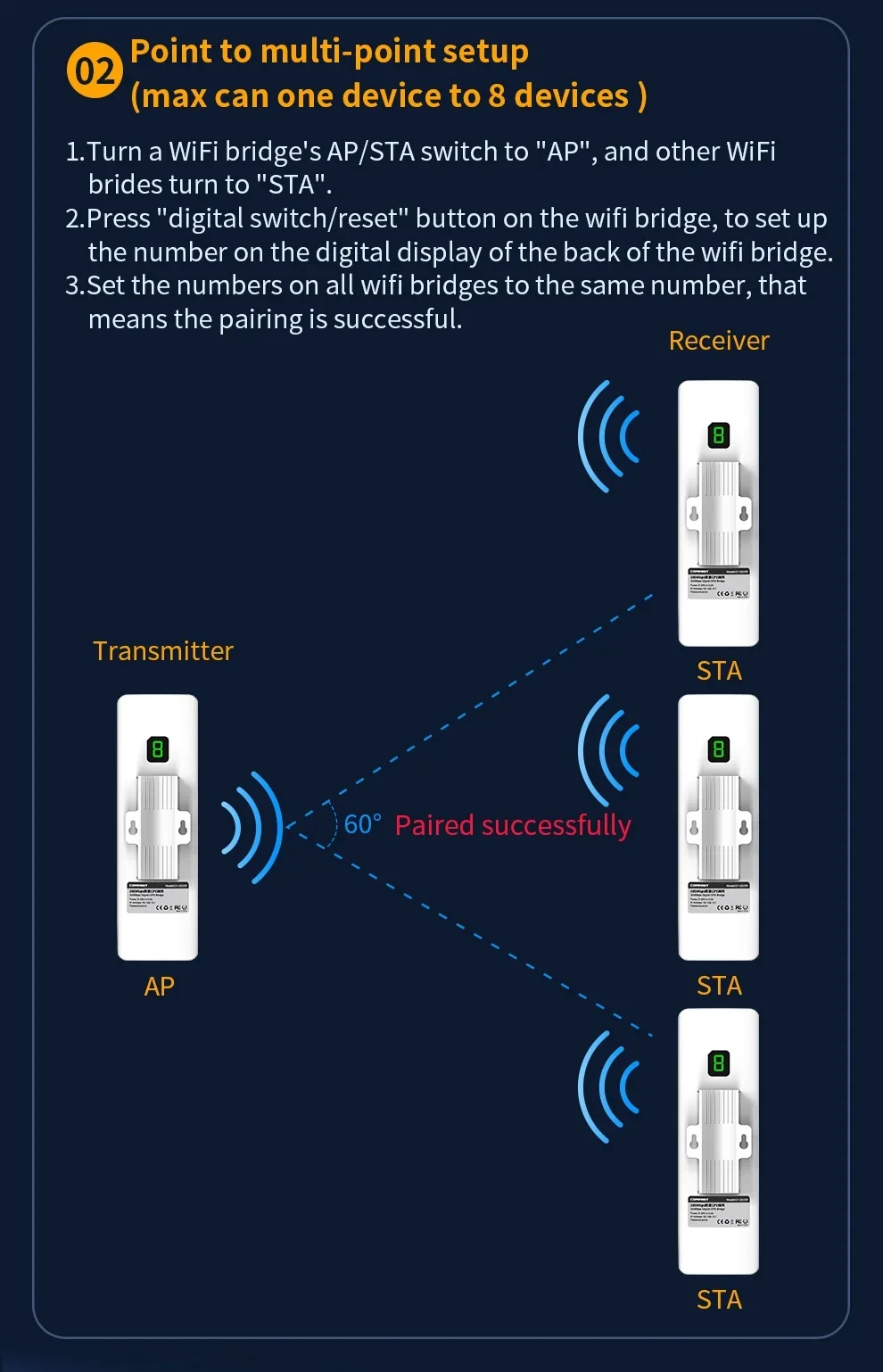

Point to multi-point setup(max can one device to 8 devices )

1.Turn a wifi bridge’s AP/STA switch to “AP”, and other wifi brides turn to “STA”.

2.Press “digital switch/reset” button on the wifi bridge, to set up the number on the digital display of the back of the wifi bridge.

3.Set the numbers on all wifi bridges to the same number, that means the pairing is successful. COMFAST 1KM Point to Point Digital Long Range Outdoor CPE Wireless AP Bridge 300Mbps WIFI CPE WI-FI Antenna Nanostation

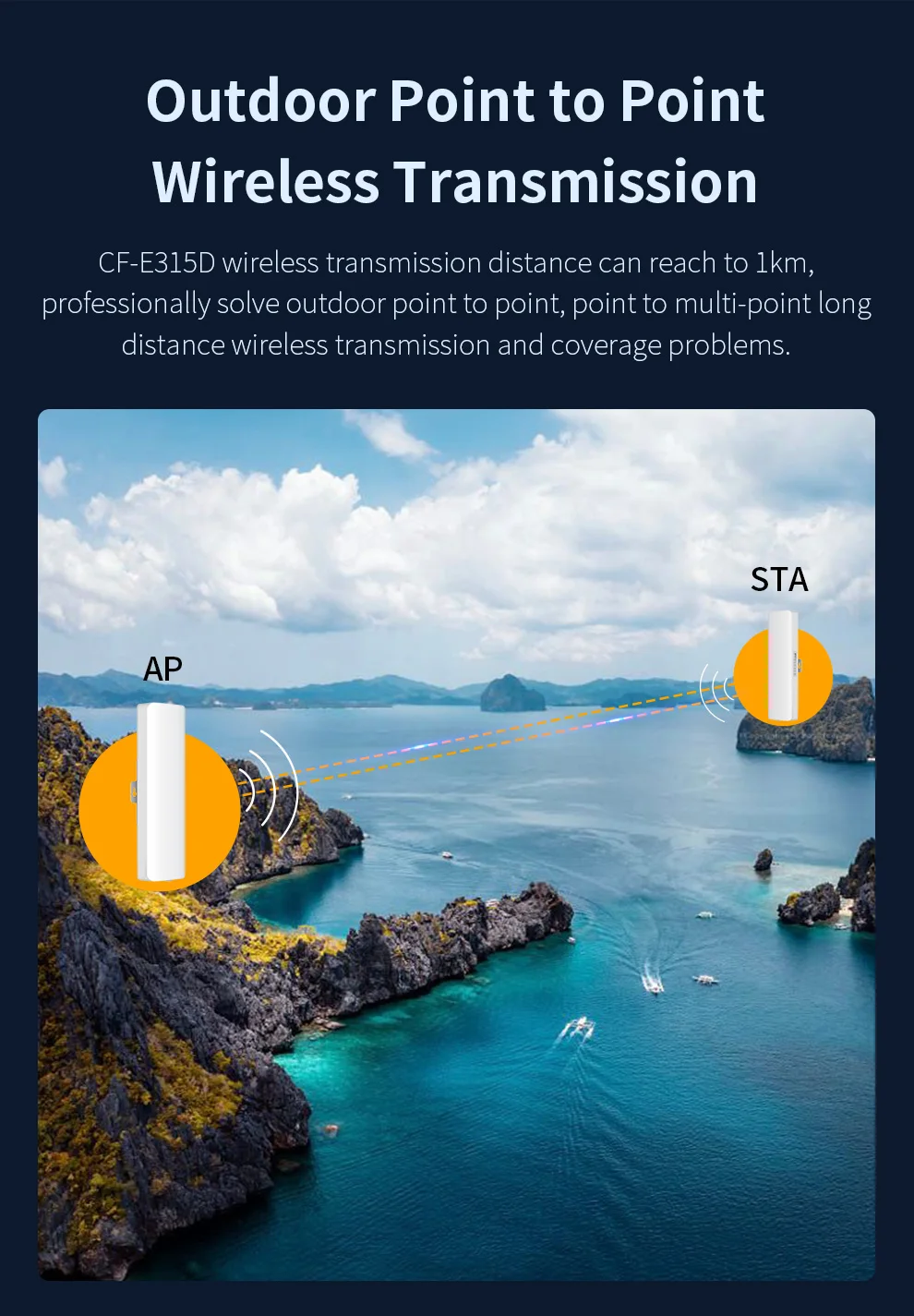

Outdoor Point to Point Wireless Transmission

CF-E315D wireless transmission distance can reach to 1km, professionally solve outdoor point to point, point to multi-point long distance wireless transmission and coverage problems. COMFAST 1KM Point to Point Digital Long Range Outdoor CPE Wireless AP Bridge 300Mbps WIFI CPE WI-FI Antenna Nanostation

3 modes for selection, flexible application

Meet the needs of outdoor wifi engineering applications.

Bride Mode AP Mode Router Mode COMFAST 1KM Point to Point Digital Long Range Outdoor CPE Wireless AP Bridge 300Mbps WIFI CPE WI-FI Antenna Nanostation

WiFi signal strength indicator, easy to the signal strength

Note: When the signal strength is very weak, the device may be misaligned or the distance is too far. Please adjust the device according to the signal indicator. COMFAST 1KM Point to Point Digital Long Range Outdoor CPE Wireless AP Bridge 300Mbps WIFI CPE WI-FI Antenna Nanostation

POE Power Supply

Support 9V~24V POE and DC two power supply ways. we can select the suitable power supply way according our demands.

COMFAST 1KM Point to Point Digital Long Range Outdoor CPE Wireless AP Bridge 300Mbps WIFI CPE WI-FI Antenna Nanostation

Transmission power is adjustable, which can reduce mutual interference

The transmission power is linearly adjustable. We can reasonably adjust the transmission power of the wifi bridges according to the actual environment, reduce the mutual interference between the wifi bridges, and improve the stability of wireless transmission.

COMFAST 1KM Point to Point Digital Long Range Outdoor CPE Wireless AP Bridge 300Mbps WIFI CPE WI-FI Antenna Nanostation Connecting application diagram

point to point connection diagram

Multiple cameras connecting way 1： connect the camera to the switch ,then connect with Comfast CPE . It will transmit the date through two CPE

Multiple cameras connecting way 2: if Cameras are far away from each other , configure each camera with two CPEs, The control center connects CPE with AP mode via switch, then connect with DVR COMFAST 1KM Point to Point Digital Long Range Outdoor CPE Wireless AP Bridge 300Mbps WIFI CPE WI-FI Antenna Nanostation

Point to Muti-point connection Diagram

If the angle of cameras and monitor center is less than 60 degree , there can conside one point to multi point connection.it can reduct CPEs with the transmitting mode , which can save project cost a lot. Please pay attention that it has to meet the angle and Broadband requirement.

In wireless monitoring transmission, we suggest you to use above way to do connection,please pay attention the transmission angle for the device is 60 degree. COMFAST 1KM Point to Point Digital Long Range Outdoor CPE Wireless AP Bridge 300Mbps WIFI CPE WI-FI Antenna Nanostation
