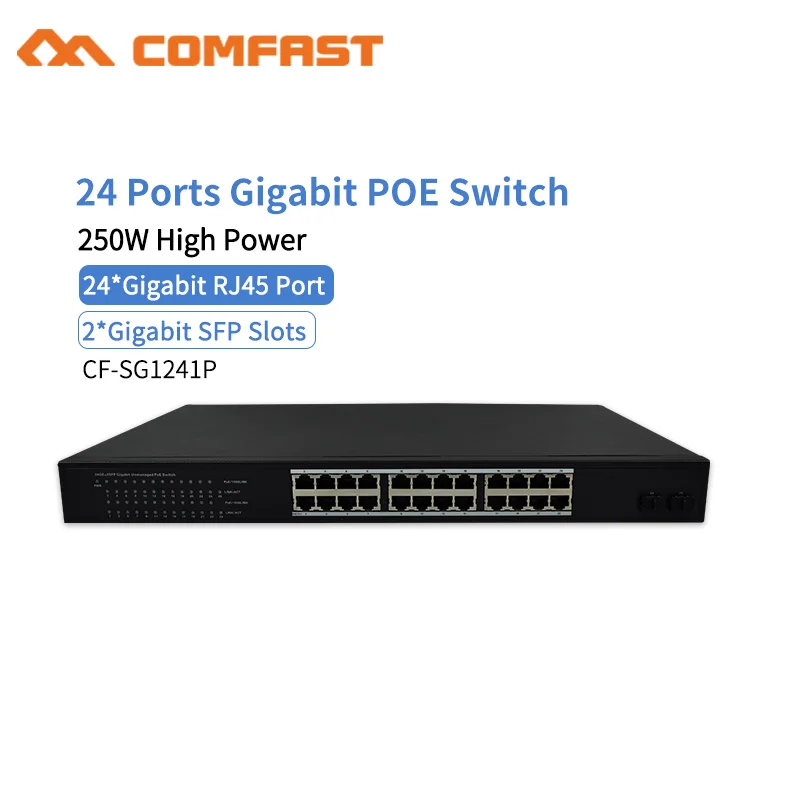

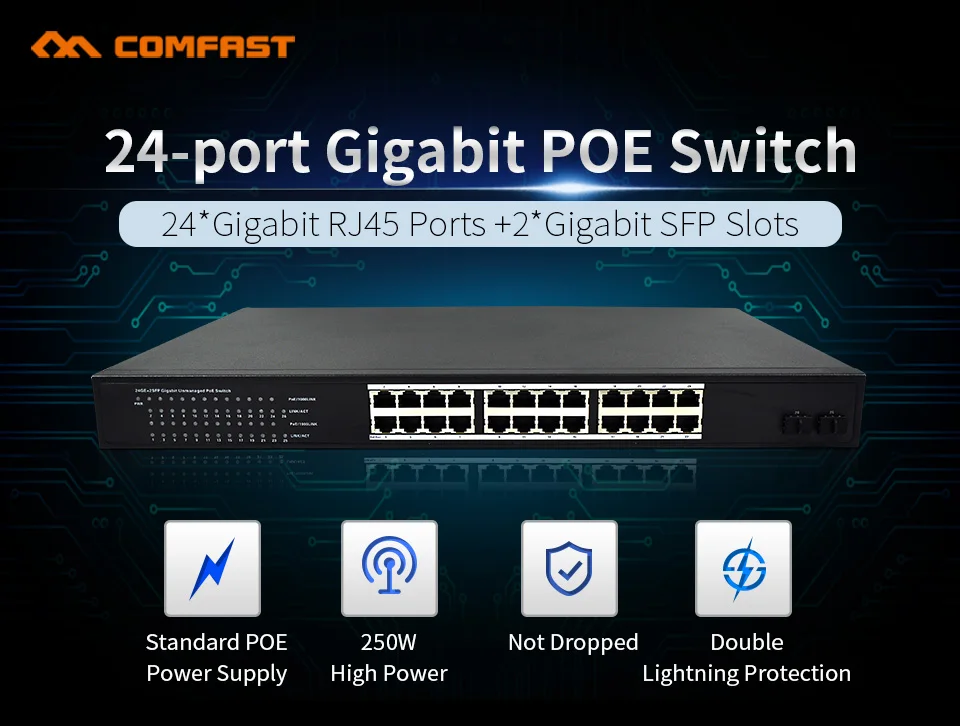

Comfast 24 Port Gigabit POE Network Switch Gigabit Switch Ethernet 24 *10/100/1000Mbps RJ45 Port 1000M 802.11af/at Switch

Note:

Dear friend, for this link ,Because it over 10kg , so we will shipped the Express shipping according your country , generally will be TNT, DHL , UPS,Fedex IE , Fedex IP , Aramex , For TNT DHL ,UPS ,Fedex ,Aramex all need pay taxes according your local , Please kindly know this.

If you need help with the declared amount, please contact us or note the information , Any more quesitons ,please kindly message us ! Thanks a lot !







CF-SG1241P Gigabit unmanaged PoE switch provides 24 10/100/1000M self-adaptive RJ45 ports, and each RJ45 port supports MDI/MDIX automatic switching and line-speed forwarding functions. The port supports the IEEE802.3af/at standard PoE power supply function, which can automatically detect and identify the powered equipment that meets the standard, and supply power to it through the network cable.





Features:

1. Smart Link power management and StepLink step-by-step start-up functions guarantee the safe and stable operation of PoE switches;

2. Support IEEE802.3 af/IEEE802.3 at standard PoE power supply;

3. The maximum power supply of a single port is 30W;

4. Intelligent detection, plug and play, automatic detection and identification of standard PoE powered equipment, intelligent power supply, will not burn non-standard PoE powered equipment or ordinary equipment;

5. Support port power supply priority to ensure continuous power supply of key nodes of the network;

6. Support IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;

7. 24 10/100/1000Mbps Rj45 adaptive POE power supply ports;

8. Industrial shell design, strong, wear-resistant and scratch-resistant;

9. Iron shell technology, rapid heat dissipation, thereby prolonging the service life of the equipment;





Application Environment:

1. Metropolitan optical fiber broadband network: telecommunications, cable TV, network system integration and other data, network operators;

2. Broadband private network: suitable for private networks in finance, government, petroleum, railway, electric power, public security, transportation, education and other industries;

3. Multimedia transmission: comprehensive transmission of image, voice and data, suitable for distance teaching, conference TV, videophone and other applications;

4. Real-time monitoring: Real-time control signal, image and data transmission at the same time;





Specification:

PoE port: 1-24 port: 10/100/1000M auto-negotiation RJ45 port

Uplink port: 25, 26 port: 1000M SFP optical fiber slot

Port maximum power supply: 30W

The maximum power supply of the whole machine: 250W

Port PoE power supply priority: support

Forwarding mode: store and forward

Transmission mode: IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control

Power specification: 250W: AC 200~240V 50/60Hz





Packing list:

1*POE Switch SG1241P



Product Features

①Smartlink power management、StepLink step-by-step enable function to protect the safe and stable operation of POE switch;

②SuppotIEEE802.3af/IEEE802.3at Standard POE power supply;

③Single port power supply is less than or equal to 30W;

④Automatic detection and identification of standard POE powered devices, Intelligent power supply;

⑤Support port power supply priority to ensure continuous power supply to key nodes of the network;

⑥Support IEEE802.3x (full duplex Network Flow Control) and Backpressure (half duplex Network Flow Control);24* Gigabit RJ45 Ports

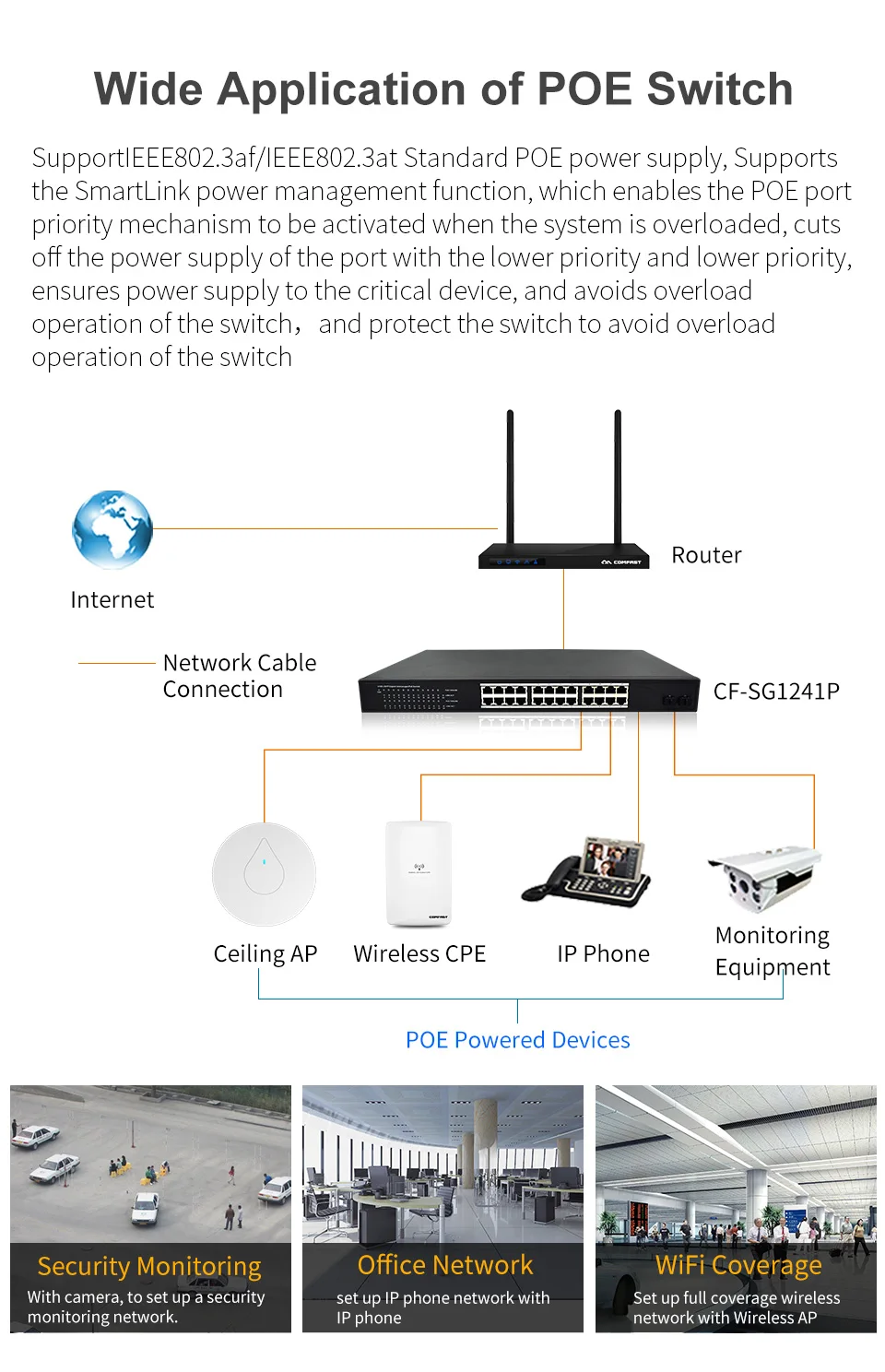

CF-SG1241P have 24 adaptive Gigabit RJ45 ports .Every port supports MDI/MDIX automatic flip function,and have Wire-speed forwarding. Ports 1-24 support IEEE802.3af/at standard POE power supply function. Detect and identify powered devices that meet the standard and power them through the network cable.Wide Application of POE Switch

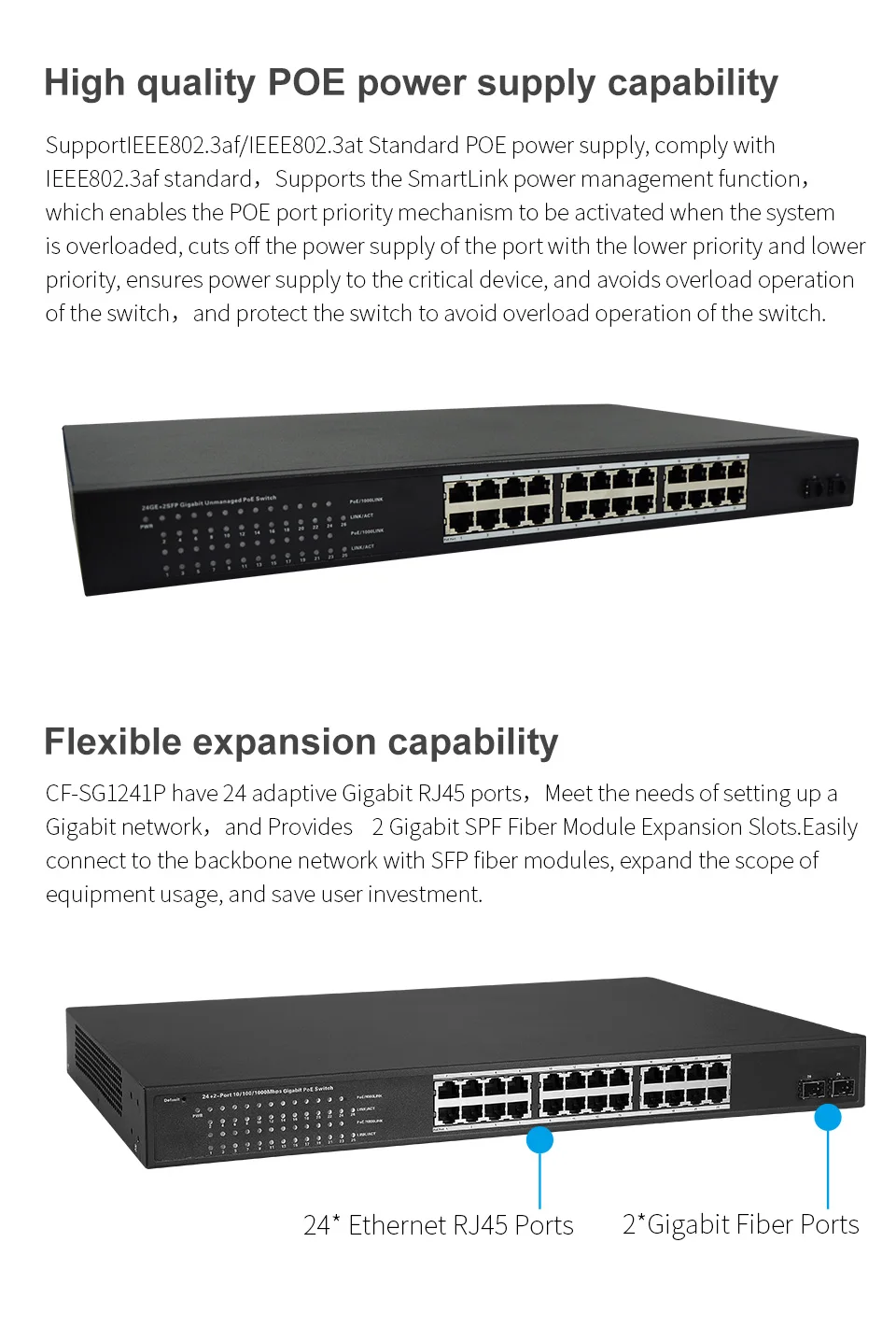

SupportlEEE802.3af/IEEE802.3at Standard POE power supply, Supports the SmartLink power management function, which enables the POE port priority mechanism to be activated when the system is overloaded, cuts off the power supply of the port with the lower priority and lower priority, ensures power supply to the critical device, and avoids overload operation of the switch, and protect the switch to avoid overload operation of the switchHigh quality POE power supply capability

SupportlEEE802.3af/IEEE802.3at Standard POE power supply, comply with IEEE802.3af standard，Supports the SmartLink power management function, which enables the POE port priority mechanism to be activated when the system is overloaded, cuts off the power supply of the port with the lower priority and lower priority, ensures power supply to the critical device, and avoids overload operation of the switch, and protect the switch to avoid overload operation of the switch.

Flexible expansion capability

CF-SG1241P have 24 adaptive Gigabit RJ45 ports, Meet the needs of setting up a Gigabit network, and Provides 2 Gigabit SPF Fiber Module Expansion Slots.Easily connect to the backbone network with SFP fiber modules, expand the scope of equipment usage, and save user investment.Intelligent Adaptation Plug and Play

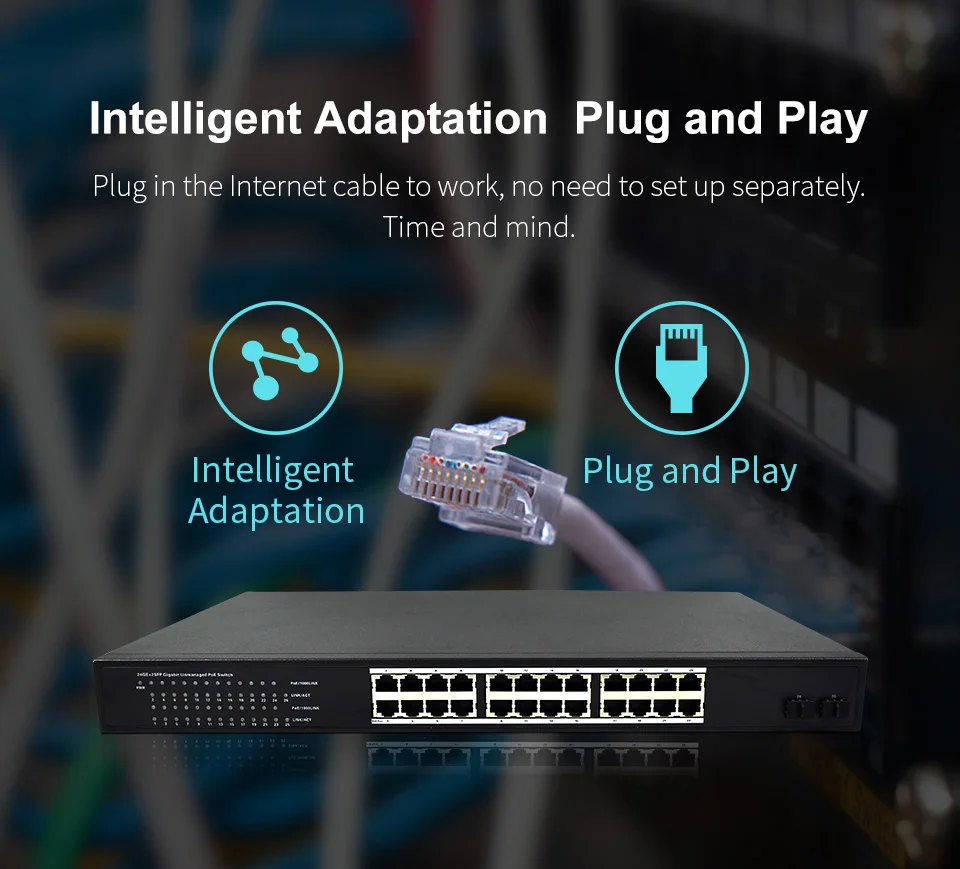

Plug in the Internet cable to work, no need to set up separately.Time and mind.Iron Shell Rapid Heat Dissipation

CF-SG1241P is made of iron shell,has 160 heat emissions holes,which can effectively dissipate heat and reduce internal damage caused by excessive temperature
