COMFAST Wifi 6 Repeater 1500Mbps Wi Fi Repeater 2.4G/5.8G 4 Antennas Hight Boosters Long Range Signal Booster Router For Home

Wifi 6 Repeater 1500Mbps Wi Fi Repeater 5G With Wps 4 Antennas WPA3 Hight Boosters Repetiteur Wi-fi Sans Fil Extender

CF-XR181 is a multi-antenna through-wall wireless repeater with features such as 1500Mbps dual-band, stable signal, and simple configuration;

It is suitable for WiFi signal expansion in home environments such as villas, duplexes, and large apartments. It effectively solves the problem of signal blind spots and is a good home product for complex and large households.

WiFi6 Gigabit Dual Band Repeater, AX1500 / signal extension

Function:

●New generation WiFi6 standard, supporting IEEE802.11ax/a/b/g/n/acprotocol

●Rotating 4 high-gain antennas to expand signal coverage and penetrate walls powerfully

●Body heat dissipation design, good heat dissipation

●Bottom network RJ45 port design supports wireless to wired conversion

●Imported ABS material, heat and pressure resistant

●Work indicator light makes it easy to observe the working status of the equipment

●2.4GHz&5.8GHz dual frequency, more stable signal, efficient anti-interference

●1500Mbps wireless rate, high-speed transmission, better Internet experience

●Support relay, routing, AP working modes

Specification:

Antenna: 4* 3dbi Antennas

Wireless Standard: IEEE802.11a/b/g/n/ac/ax

Transmission Rate: 2.4GHz: 300Mbps; 5.8GHz: 1200Mbps

Output Power (Max): 160mW (≈22dBm)

Receiver Sensitivity (Min): -96dBm

Frequency: 2.412GHz-2 .472GHz; 5. 180GHz-5.825GHz

Working Mode: AP/ Repeater / Router Mode

Physical Ports: 1* 10/100Mbps RJ45 WANL AN Ethemet Port; 1*RESETMPS

Power: 100~240V,50/60Hz

Power consumption: <11W

MTBF: >250000H

IP Index: IP31

Case: Plastic Case (ABS Material)

Working Temperature: 0 C-40 C°

Storage Temperature: -40C~70C

Working Humidity: 10%~90%RH Non-condensing

Storage Humidity: 5%~90%RH Non-condensing

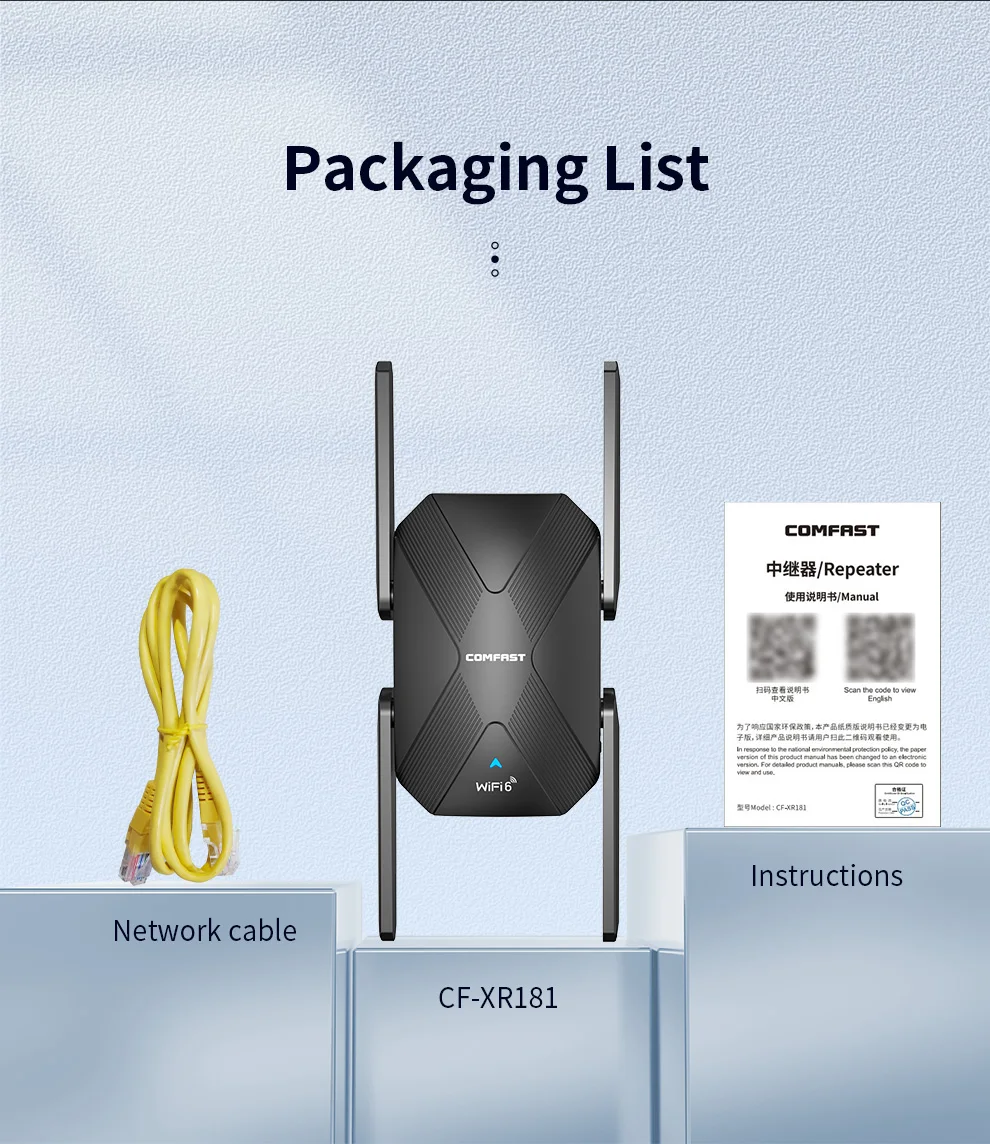

Packing list:

With retail box

1x Dual Band Wireless AX1500 Range Extender

1x Quick Installation Guide

1x RJ-45 Ethernet Cable

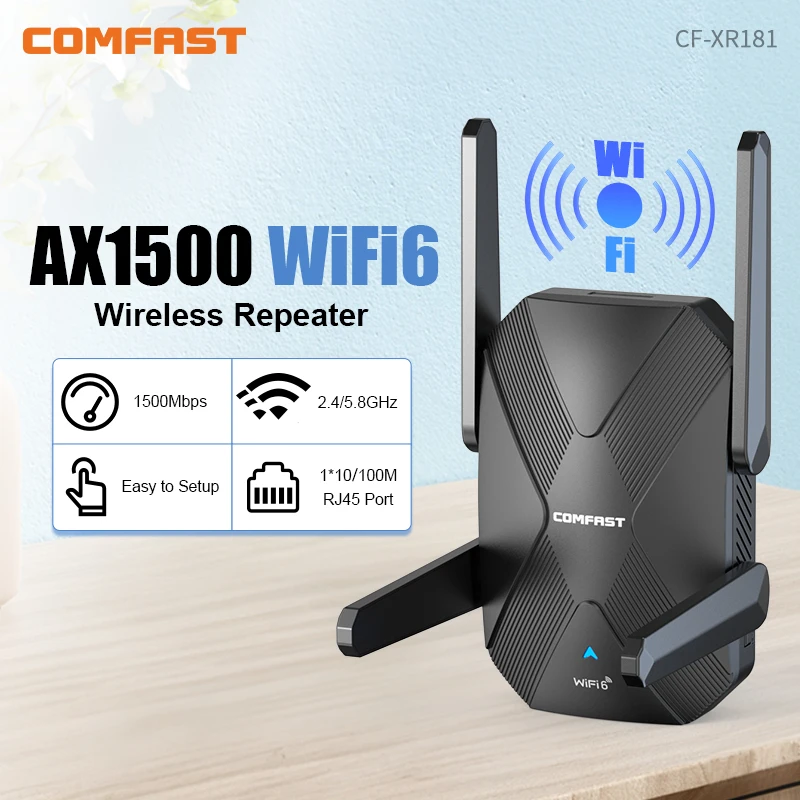

COMFAST

CF-XR181

Strong wifi signal,Extraordinary wifi6 experience

AX1500 WiFi6 Wireless Signal Extender

Dual band gigabit–1500Mbps

Wall penetrating antenna–External 4 antennas

Multiple functions–Flexible application

Simple and easy-to-use–Web page management

Four strong high gainantennas, no worry forsignal problem

Easy to extend your wifi signal to the weak signal area

Remove WiFi dead spot

Expanding without network cables

PS: Users need to add wifi repeaters according to the actual situations

Extend your signal accurately,No more wifi dead Zone

Choose COMFAST Repeater, Say Goodbye to Network Troubles

01、Upgrade WIFi6 to increase speed

02、Gigabit High Speed 1500Mbps,High Speed Internet Access

03、Dual band anti-interference 2.4G/5.8G

04、High gain 4 antennas, strong penetration of walls

05、Multi functional mode suitable

06、Both sides+bottom cooling holes keeplow temperature

07、Powerful memory function, plug and play

08、Simple three step setup without installing an app

WiFi6 is highly improvementfor speed and connectioncompared to WiFi5

Mainstream WiFi6 standard, WiFi6 routing standard,faster speed and lower latency,providing a smoother gaming and video experience

Doubles WiFi speed–Enjoy fast WiFi at home

Support four times thenumber of devices–Up to 128 devices can be connected simultaneously

Latency lower 60%–Playing gaming and watching video low latency

Low power consumption–Lower 30%

Enjoy gigabit high-speed WiFi

2.4G signal and 5.8G signal can be extended simultaneously,with a wireless speed of up to 1500Mbps and strong WiFi coverage

Dual band WiFiefficient transmission

5G WiFi is fast speed strong anti-interference ability and low game latency.

2.4G WiFi is for relatively long distance and better wall penetrating ability.

PS: The higher-level router needs to also have dual dual, and Simultaneous Dual Band

Full performance withoutfear of wall penetration

Four high gain omnidirectional antennas effectively enhancethe sensitivity of WiFi signal transmission and reception,with fast speed and wider WiFi coverage

Multiple modes forinstant connection

01、Repeater Mode (Wireless to Wireless)

Extend the WiFi signal of the main router, effectively solve the problemof weak signal, and clear the dead spots of WiFi

Min router：With limited coverage, and there is nosignal in remote places such as bedroomsand bathrooms

Repeater：Repeater amplifies the signal of therouter, so that WiFi is available inplaces with poor signal

02、AP/Router Mode (Wired to Wireless)

Equipped with a network port, Connect the network cable to the repeaterand use it as a route to transmit WiFi signal

Main router：Repeater is too far away from therouter to receive the router signal

Repeater：Through the network cable, the repeaterconverts wired into wireless for Internet access

03、Don’t worry about not having a network cable(wireless to wired)

Long distance, can receive router wireless signal and then convert to wired

for desktop/laptop with internet connection

Main router：Router is in living room, computeris in bedroom. It is troublesome toput a network cable

Repeater：Repeater amplifies routersignal + wired output

Efficient heat dissipationwith immediate results

Exquisite appearance, practical and versatile, better integrated into home.Both sides and bottom holes ensures efficient heat dissipation and stable operation

Ps: The chip/circuit board is a rendering image, please refer to the actual product for accuracy

Plug and play

No need to connect a power adapter, it can be used with a socket;it has a powerful memory function, and can be plugged andused after the setting is completed

Easy to set up

No need to download APP, just access the IP address to set up,simple and convenient

1、Connect the mobile phone toa WiFi repeater, such asCOMFAST XXX

2、Access the the setting interfacevia 192.168.10.1 in the browser,click on the repeater mode

3、Select the WiFi that needs tobe expended, enter the password,click Settings and wait for 5seconds, the light will be bluewhen the setup is successful

Q&A：

Q: Can’t connect to internet after finished setting ?

A: Please check whether you enter the same password as your router, and check is there any special characters in it, such as *&^%$#@!. If yes, please change your router password. Repeater can not identify special characters.

Q: How to reset the repeater ?

A: Please long press the reset button for 10 seconds under powered.

Q: What is the coverage of repeaters?

A: The range of the wifi repeater is about 10-20m

Q: After the repeater is set, unplug or power off, do I need to reset it?

A: There is no need to reset, the original configuration information is saved unless you manually restore it to the factory state.

Q: Does it work with the other brands Router ?

A: Our Repeater work with most routers on the market ,It work best with comfast wireless router.

Q: Can a wifi extender increase my wifi speed?

A: we are sorry to tell you that the function of a wifi extender is to extend wifi coverage into the dead area. A wifi extender only extends the existing wifi range but does not increase wifi speed. Often the transponder speed is reduced and cannot reach the original speed.

Q: There are many rooms in the house, is one repeater enough?

A: If you need to fully cover the WiFi signals in multiple rooms, you need to add an appropriate number of repeaters based on the specific environment.

Q: What is the wifi speed of this repeater ?

A: The Speed is depend on the main router. If your router is dual band 2.4G & 5G wifi signal, this mode repeater can received 2.4G  wifi signal, and give 2.4G wifi speed.

Q: What is the difference between 2.4GHz and 5GHz?

A:  2.4GHz: The penetration is good, the transmission distance is much greater than 5GHz.

5 GHz: The speed is faster than 2.4 GHz, but the penetration is not better than 2.4G, the speed is reduced by half when there are barriers such as walls between extenders and devices.

Q:How many phones can the repeater connect to at the same time?

A:Usually the amount of the machine depends on the main router. Maybe it can support 5-10

Q:Does the setting of the repeater must need to be connected to the computer with a network cable?

A:No, the repeater can achieve one-click pairing connection through the WPS button, or it can be set up by connecting the wifi signal of the repeater through a mobile phone.

Q: How to protect the service life of the repeater？

A: In order to protect the life of the repeater and reduce the loss of product use. Please do not use the repeater for a long time (more than 24 hours). When not in use, please remove it from the power supply.

Q: Do I need to plug in a network cable to use a repeater?

A: The repeater does not need to plug in a network cable when extending the signal. It is directly plugged into the socket, receives the signal from the router, and then transmits the wireless signal.

Q: Does the effect of repeaters extending up and down stairs have the same effect as when used on the same floor?

A: Since the repeater antenna is omnidirectional, and the vertical cross-section is larger than the top cross-section, the walls going up and down the stairs are thicker, causing much greater signal loss and interference, so the effect on the same floor is better than the extended effect going up and downstairs. good.
