Yieryi new AC-112 digital thermostat insert row -40-100 ℃ aquarium reptile incubator greenhouse greenhouse fish tank thermostat

Yieryi new AC-112 digital thermostat insert row -40-100 ℃ aquarium reptile incubator greenhouse greenhouse fish tank thermostat

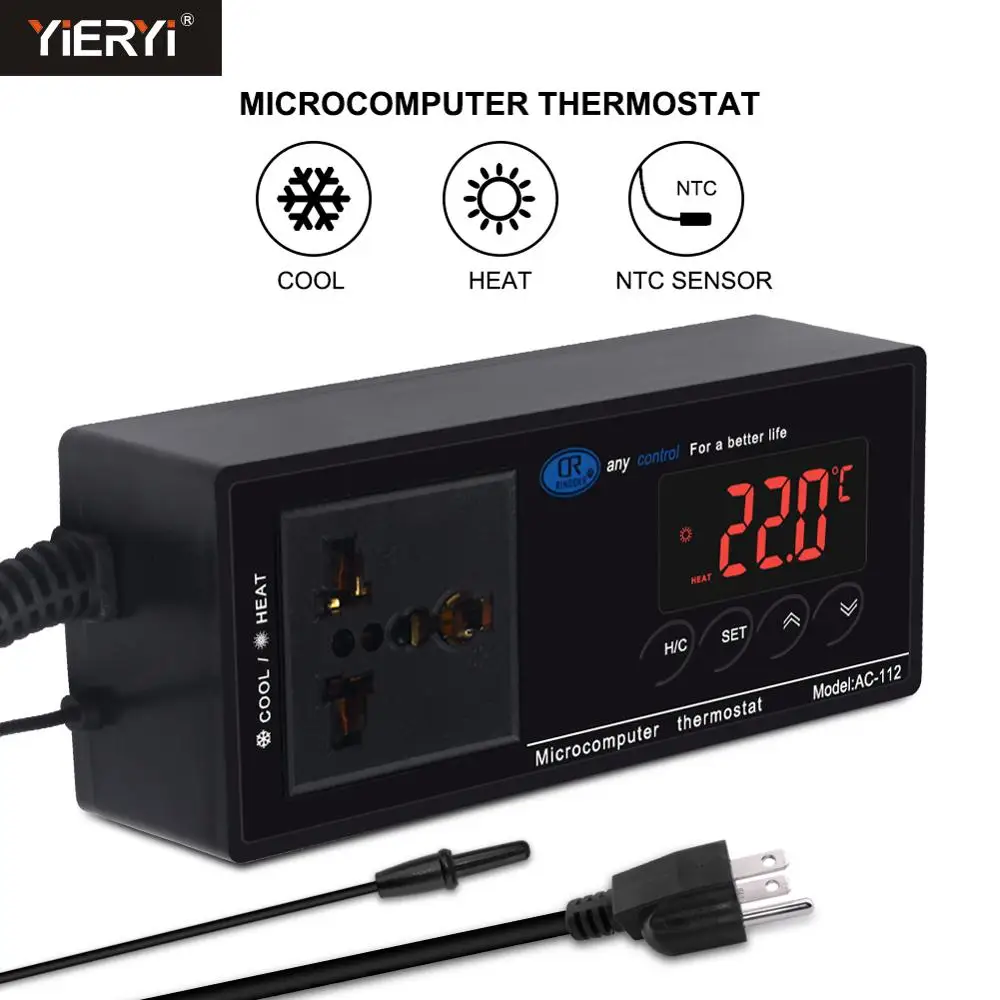

AC-112 thermostat is widely used in aquariums, reptile markets, thermostats, greenhouses, refrigerators and other places that require constant temperature control. One channel for temperature control (heating or cooling)

Features:

Describe the details of the selling point above, attracting and providing trust to your potential users.

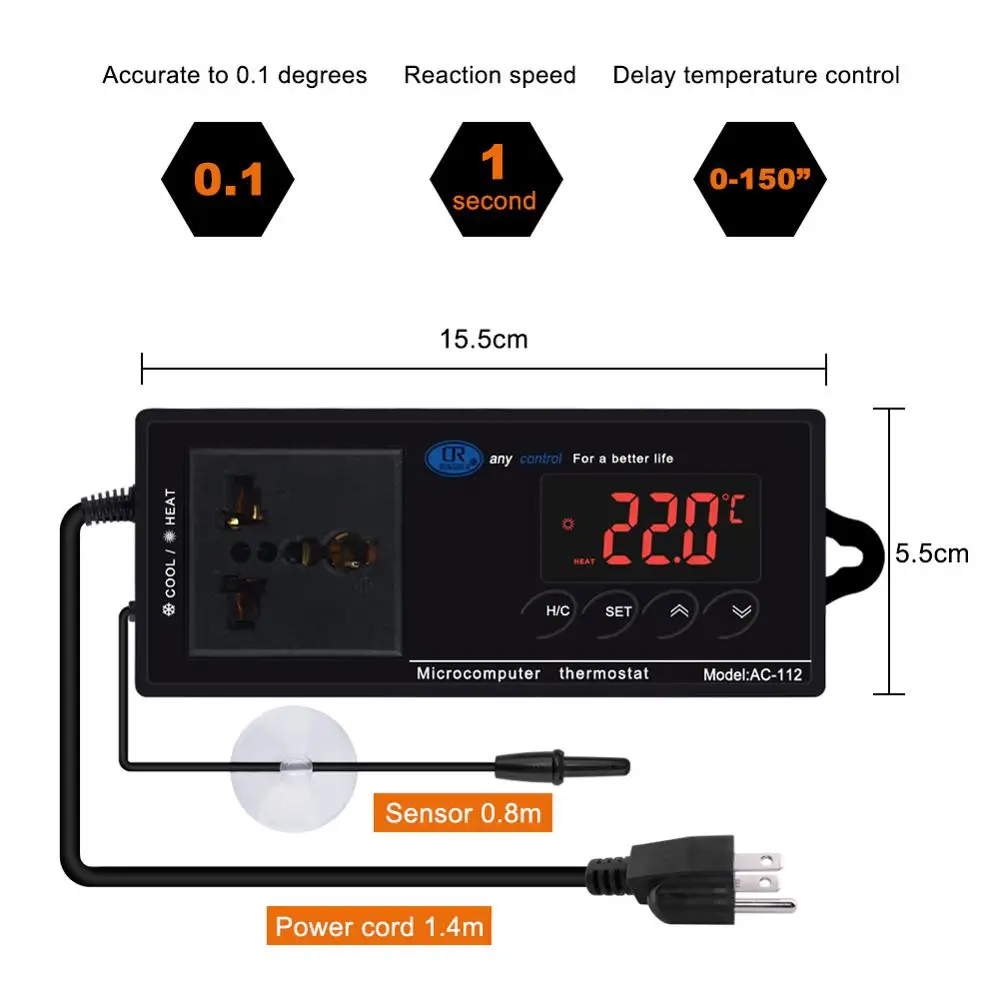

Specifications:

1.LED display, friendly interface, easy to read, operates, and set the parameters.
2.Can choose cOOL or HEAT mode Can switch between C and oF.
3.Temperature controlling range: 16-40%
4.Temperature measuring range: -40-100°
5.Resolution: 0.1C; Accuracy: ±1.0℃

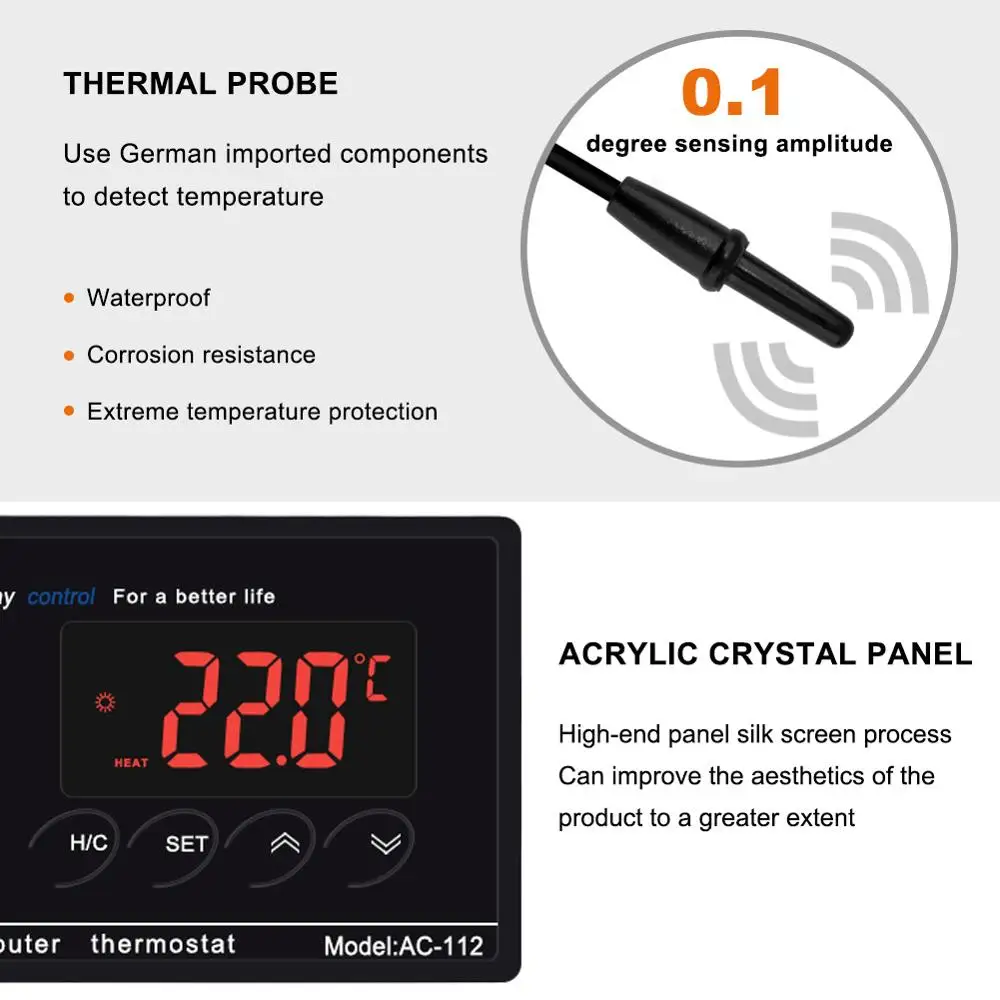

6.Input: 1 NTC sensor
7.Relay: 10A/220V(standard); 16A/220V(optional)
8.Product consumption: s3w
9.Input voltage: 220Vac±15% (standard), 110Vac±15%(optional)
10.Ambient Requirements: Temperature(-10-60℃): 11.Humidity(20%-85%C) Output(10A): resistive loads1100W/220V, 12.inductive loads275W/220V filament lamps220W/220V
13.Output(16A optional): resistive loads1760W/220V, inductive 14.loads440W/220V, filament lamps352W/220V
15.Output(10A-optional 110V): resistive load<550W/110V, inductive 16.load<138W/110V lament lamp<110W/110V
17.Output(16A-optional 110V): resistive load <880W/110V, inductive 18.load<220W/110V, filament lamp 176W/110V

Packing list

1 * Thermostat
1 * English User Manual
1 * Color box

FAQ

Q:Parameters setting:

A:Parameters would be set according to the following circular mode in the first time; All the parameters are set and saved instantly.
First of all, make sure the controller is power on
1. Choose HEATICOOL mode:
2. Stop temperature setting: Press H/C key to switch mode between
HEAT and COOL in normal working status
Press UP or Down key in normal working status to display the default stop temperature value, while icon C/E flashing, then press UP or DOWN key to adjust the ideal stop temperature you want. Press and hold UP or DOWN can adjust the parameter rapidly.

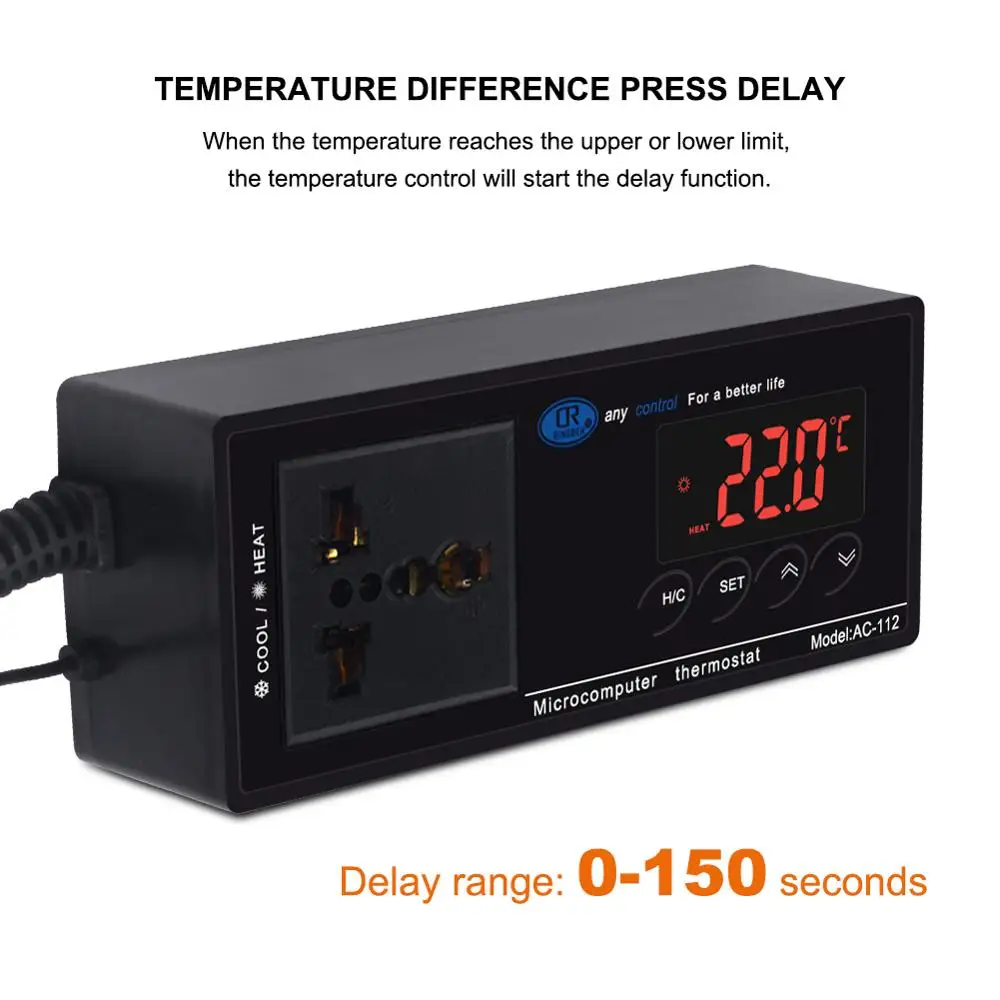

3. Set DIFF and DELAY(temperature difference and compressor delay): Press SET key in normal working status to display the default DIFF value while icon DIFF lashing, then press UP or DOWN key to adjust the ideal temperature difference you want.
Then press SET key to display the default DELAY value while icon DELAY flashing, then press UP or DOWN key to adjust the ideal

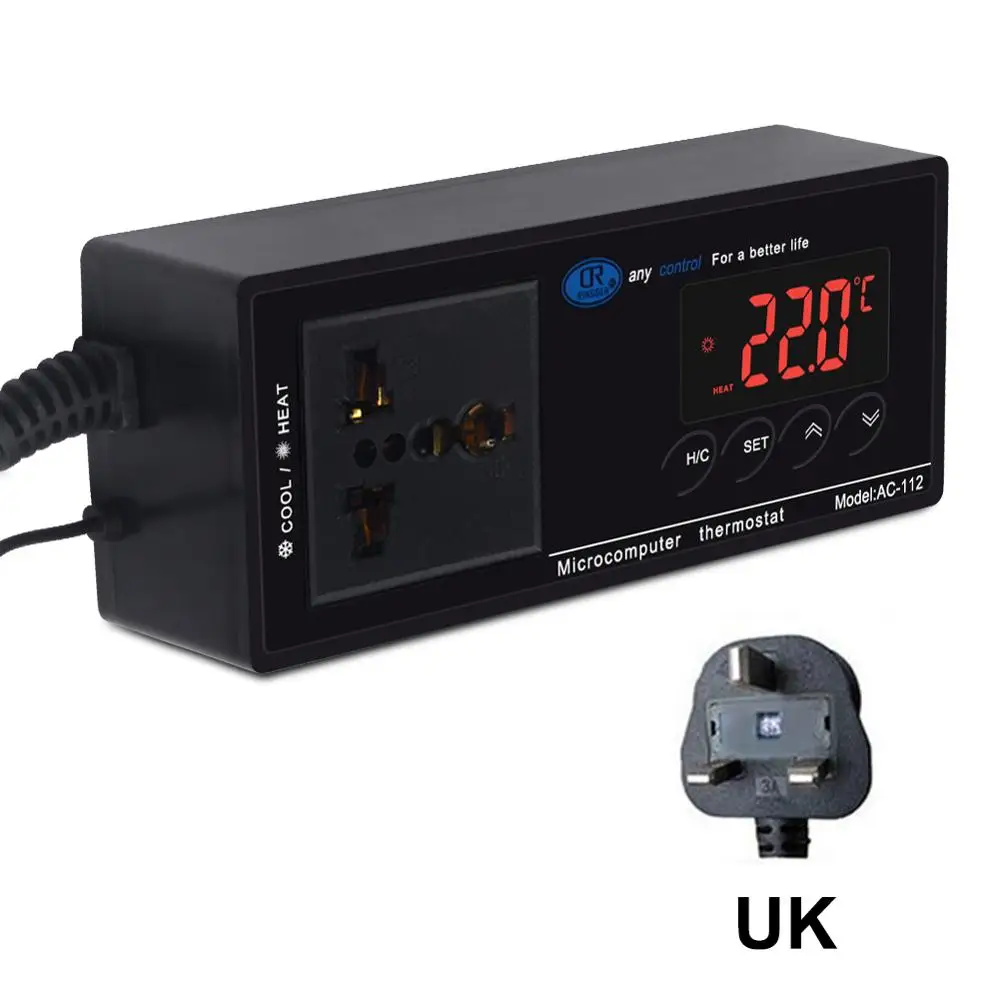

Q:When buying, please pay attention to the plug of the product

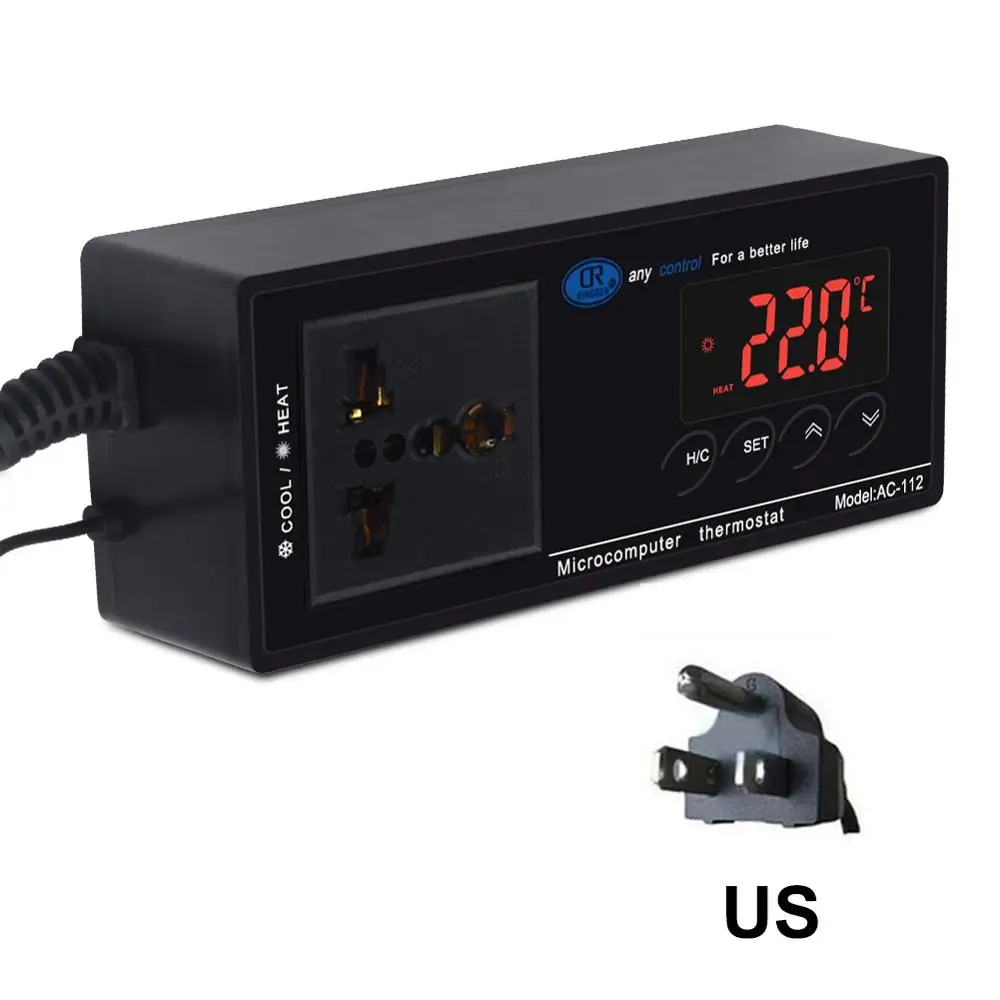

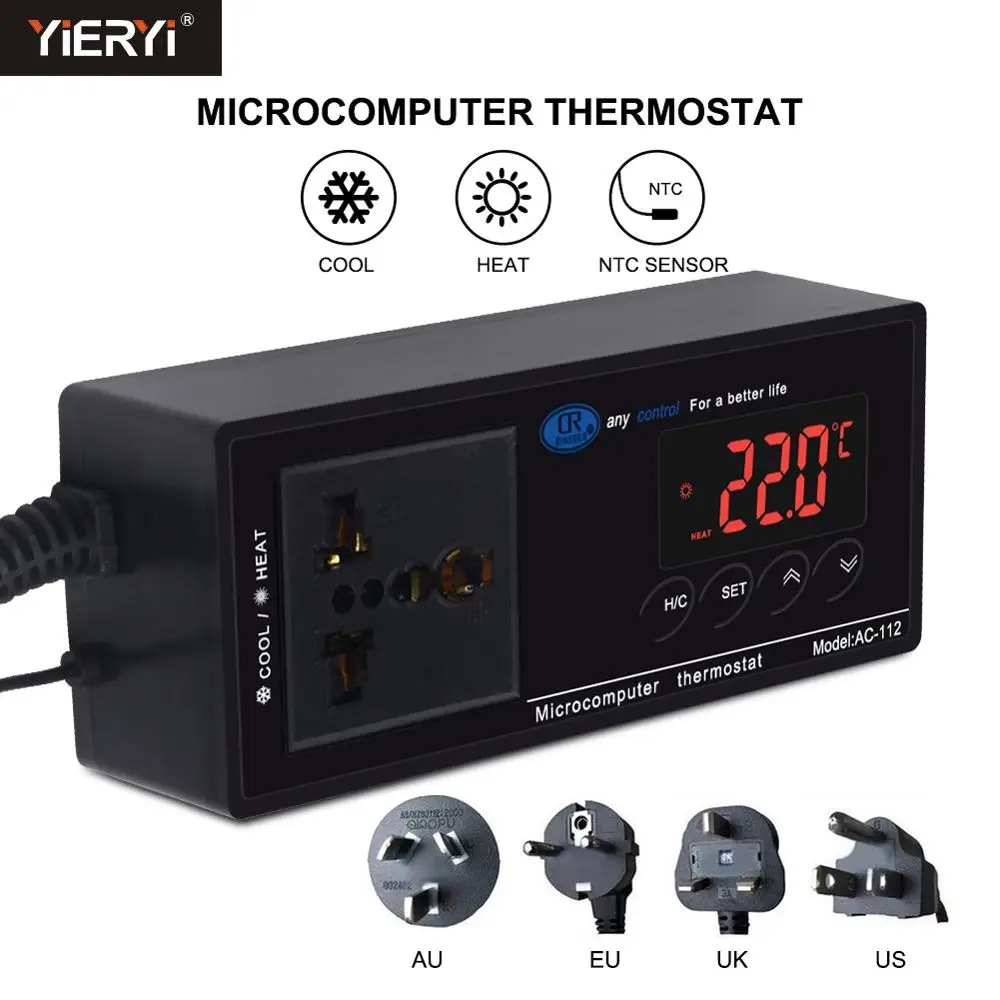

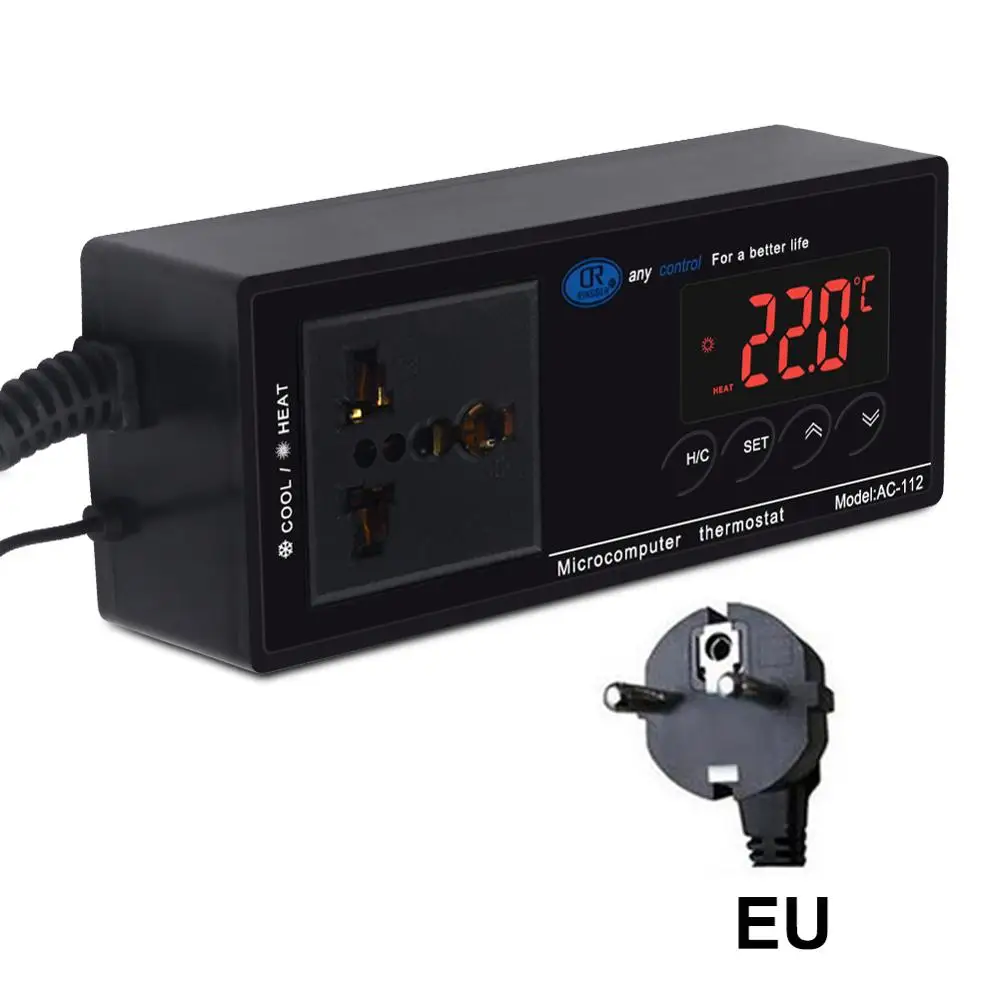

A: The product consists of 4 different types of plugs:EU/AU/UK/US

Q：About breakage:

A:
1. Please avoid overload, load short circuit, misuse, and human damage. The compensation of this product is not within this range.
2. The product received is damaged and cannot work, please keep calm, then take a picture or video of the product received, contact our customer service, we will try our best to solve the problem for you.
