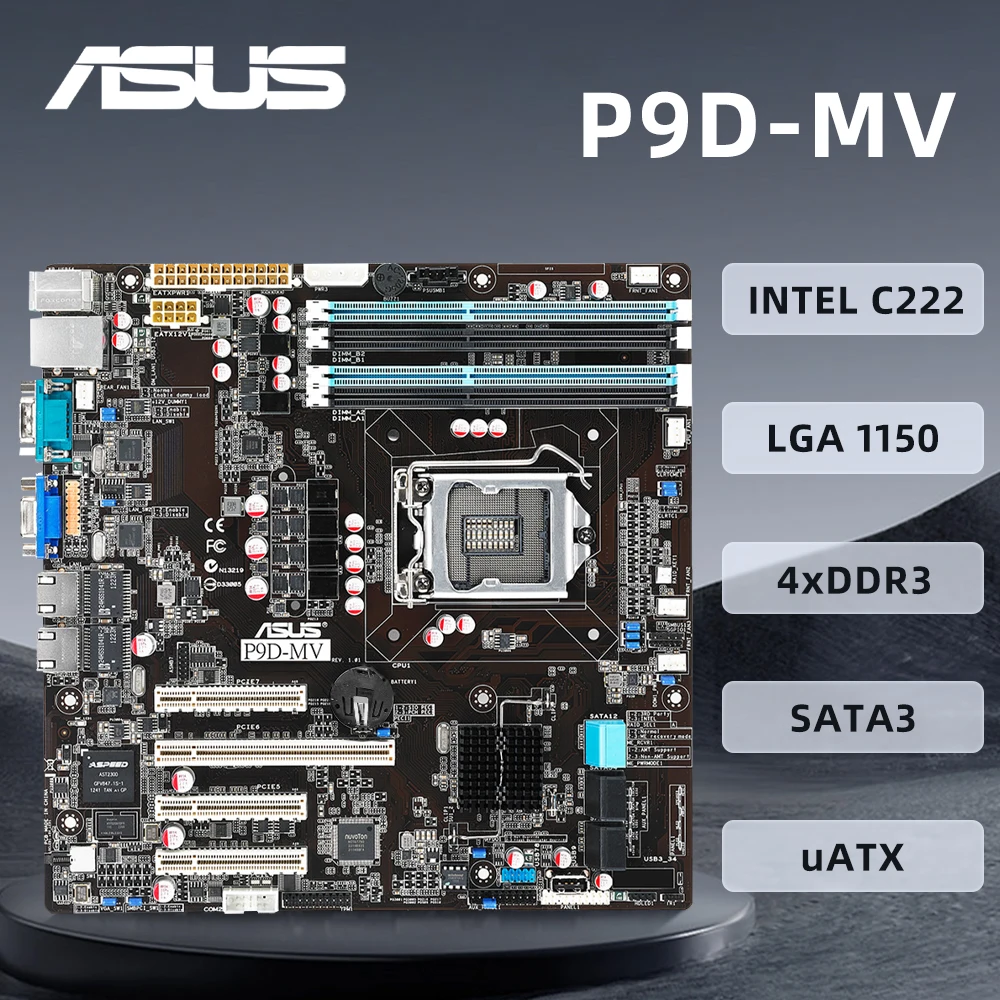

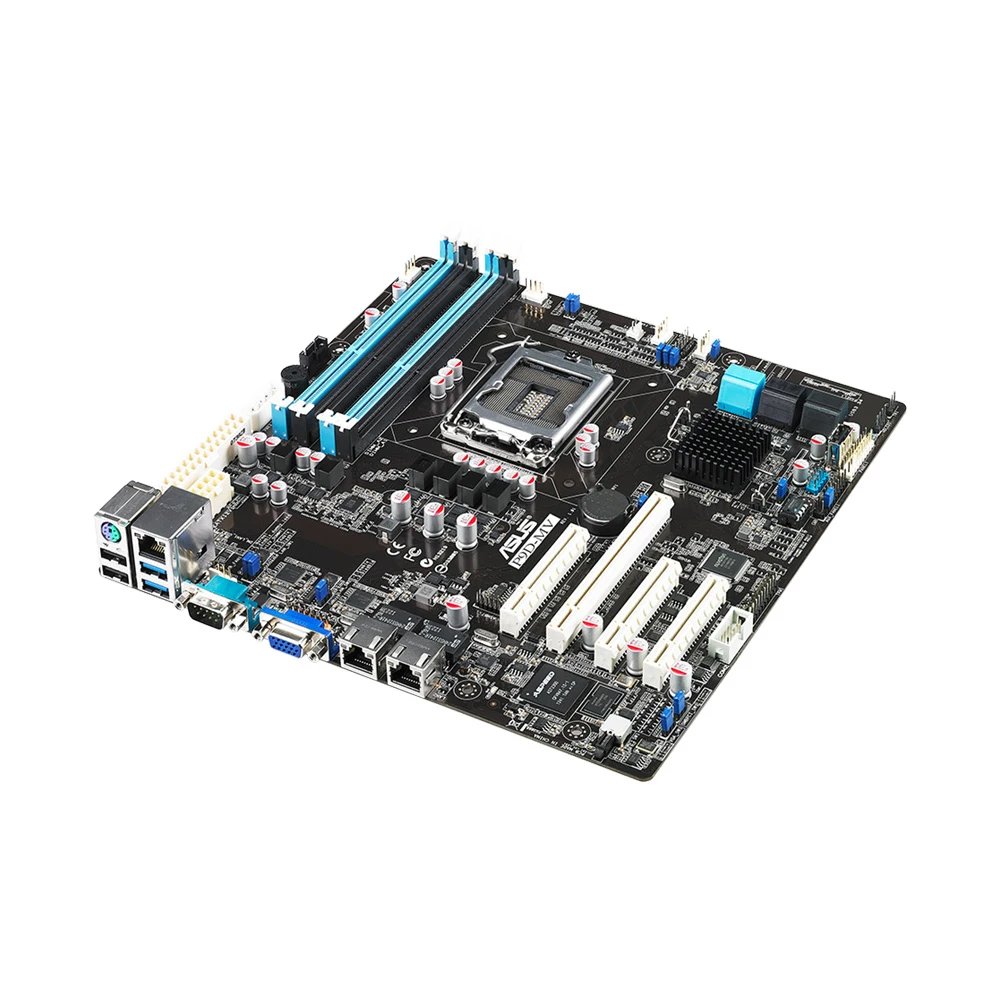

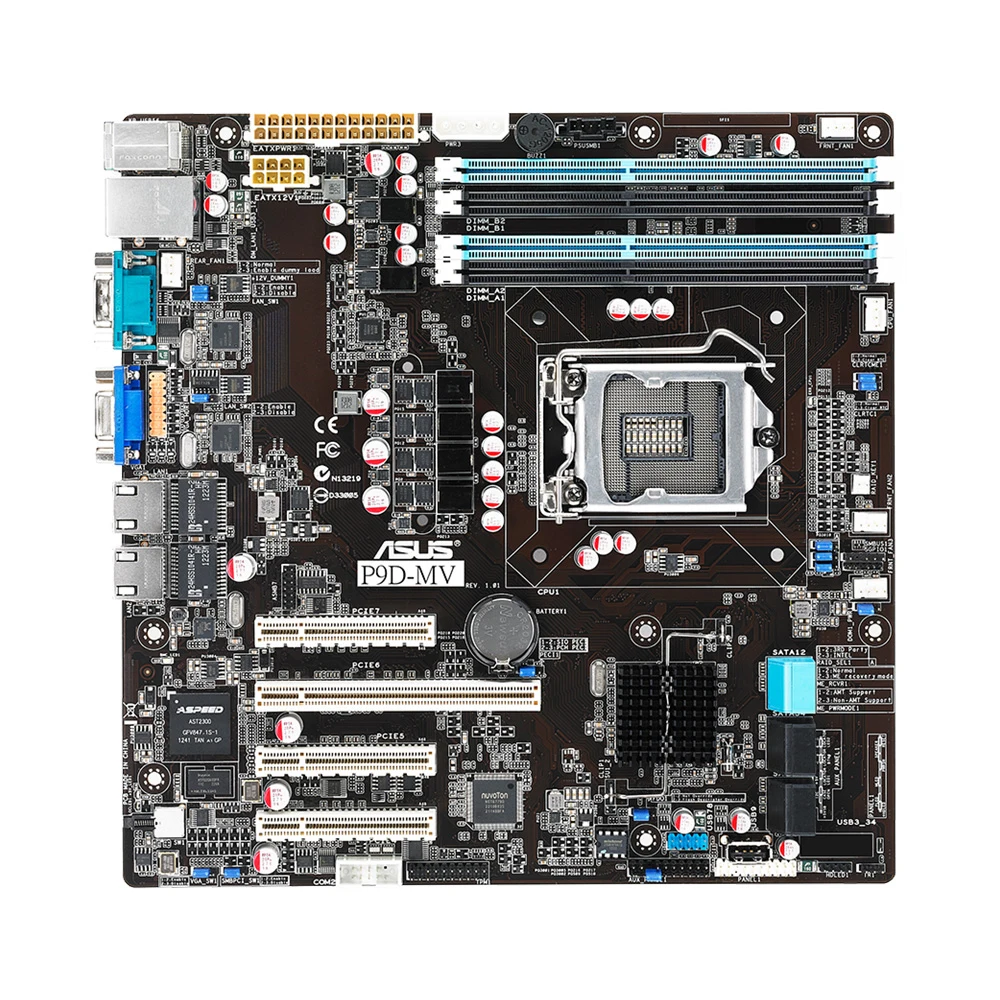

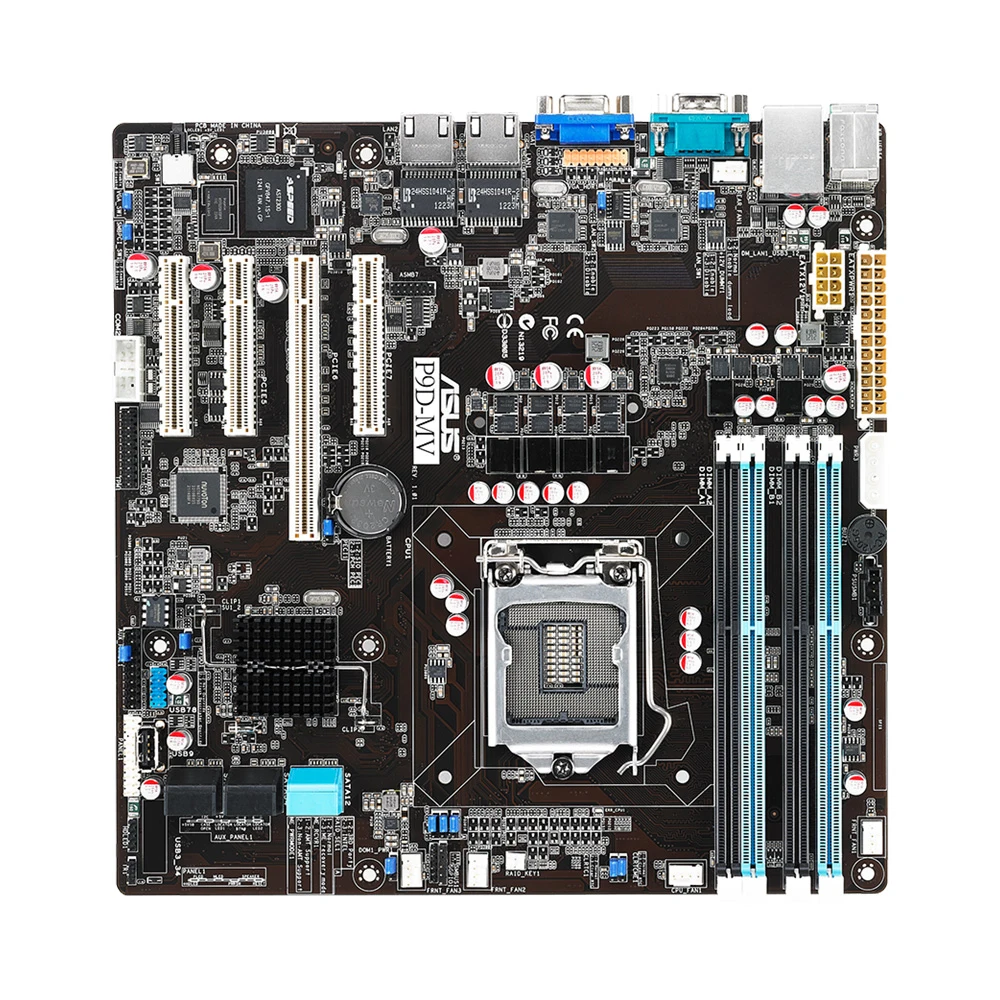

ASUS P9D-MV Motherboard with Intel C222 Chipset Supports Core i3/Xeon E3-1200 v3 Socket 1150 Motherboard.

ASUS P9D-MV Motherboard with Intel C222 Chipset Supports Core i3/Xeon E3-1200 v3 Socket 1150 Motherboard.

Note:

The motherboard has been used, but the appearance is relatively new, and it looks almost new The product does not come in the original box.

The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.

For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can’t, we don’t recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.

Please check our Bundle carefully before purchasing.Purchase a single motherboard. We don’t send CPU and memory. Please check carefully.

Motherboard Chip

Integrated chip sound card/network card
Main Chipset Intel C222
Chip maker Intel
Chipset Description Using Intel C222 Chipset
Graphics chip Aspeed AST2300 + 32MB VRAM
Network chip Onboard Intel I210AT Gigabit LAN

CPU Specifications

Applicable platform Intel
CPU type Pentium/Celeron/Core i3/Xeon E3-1200 v3
CPU description Support Intel 22nm processor
CPU socket Socket 1150
Number of CPUs supported 1

Memory Specifications

Memory type DDR3
Memory Description 4×DDR3 DIMMs
Maximum support 32GB memory, support dual-channel DDR3 1600/1333MHz memory

Expansion Slot

Graphics card slot 1×PCI-E X16 graphics card slot
3×PCI-E X8 graphics card slots
SATA interface 4 x SATA III interface; 2 x SATA II interface

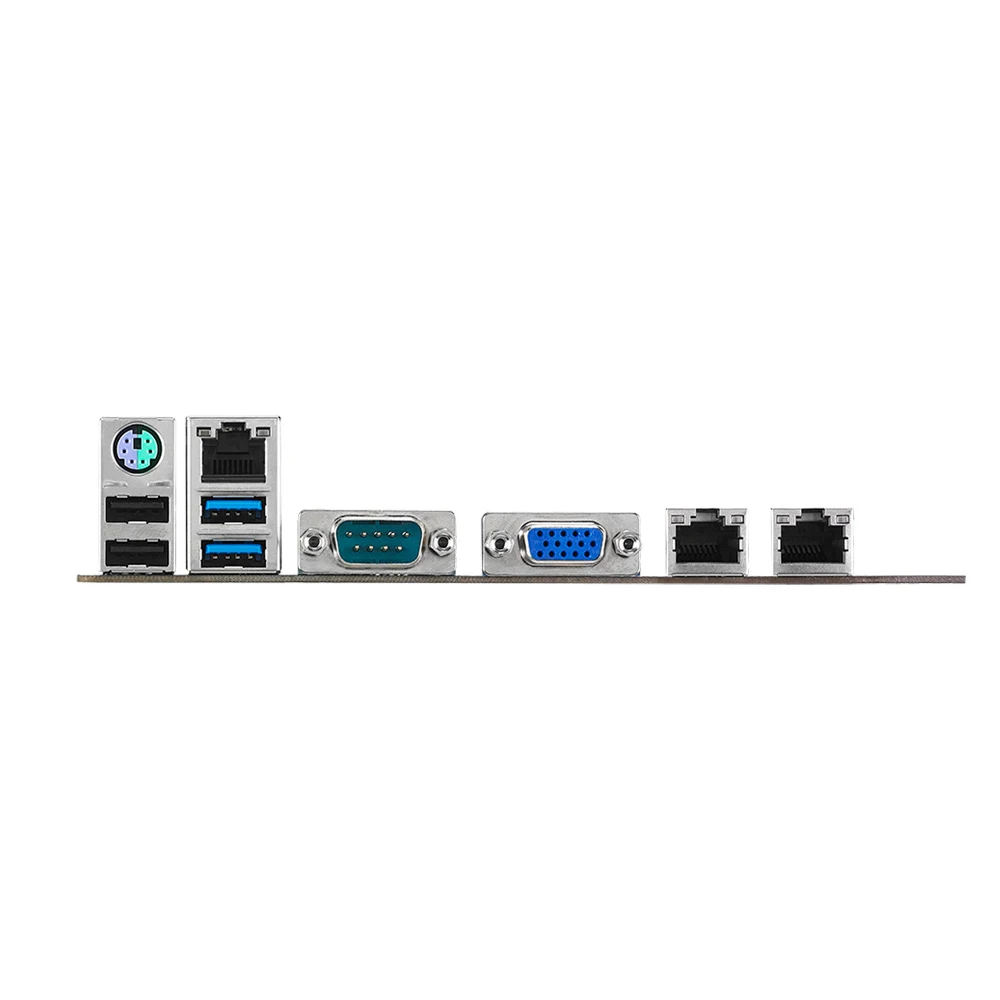

I/O interface

USB interface 2×USB2.0 interface; 2×USB3.0 interface
PS/2 interface PS/2 keyboard and mouse general interface
Parallel port Serial COM port
External port 1×VGA interface
2×RJ45 network interface
1×Fiber interface
