comfast Outdoor Wireless Wifi Extender AP Bridge 3-5KM Long Range 300Mbps 2.4G WI-FI Signal Amplifier Antenna 2*14dBi Router

Long Distance 300Mbps Outdoor Wifi Router CPE 2*14dBi Wifi Antenna High power 2.4g WIFI Repeater rj45 poe Wireless bridge

wifi роутер 5g

Suggestion:

The distance “3-5KM” mean 2pcs CPE based on point to point bridge mode.

There are many factors that affect distance, such as obstacles (trees, walls, buildings, trucks, etc.), raw network signals, etc
If you want the good signal, we suggest you buy 2pcs!

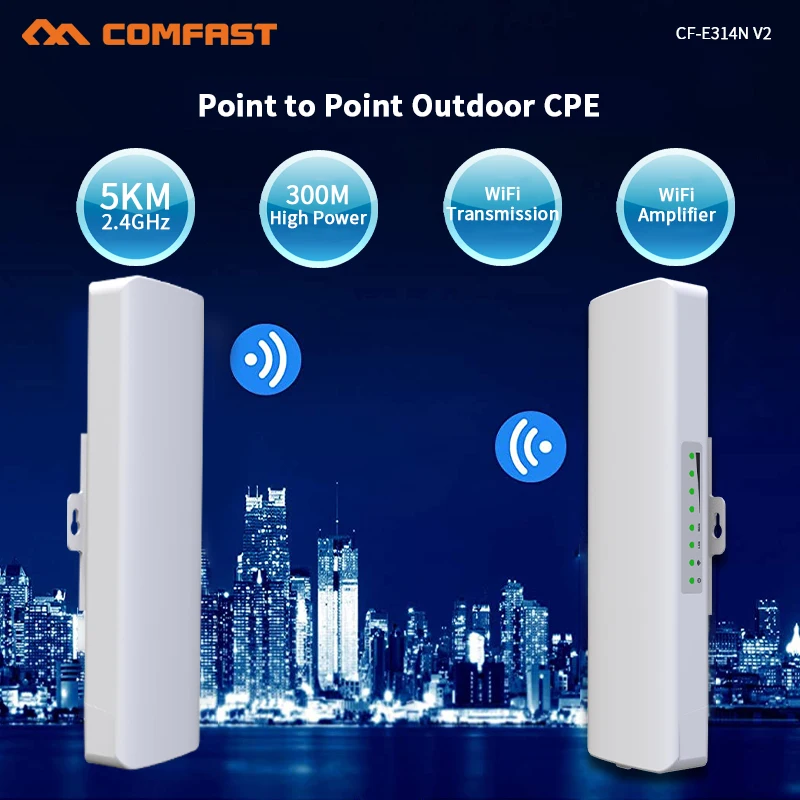

CF-E314NV2 Product Overview:

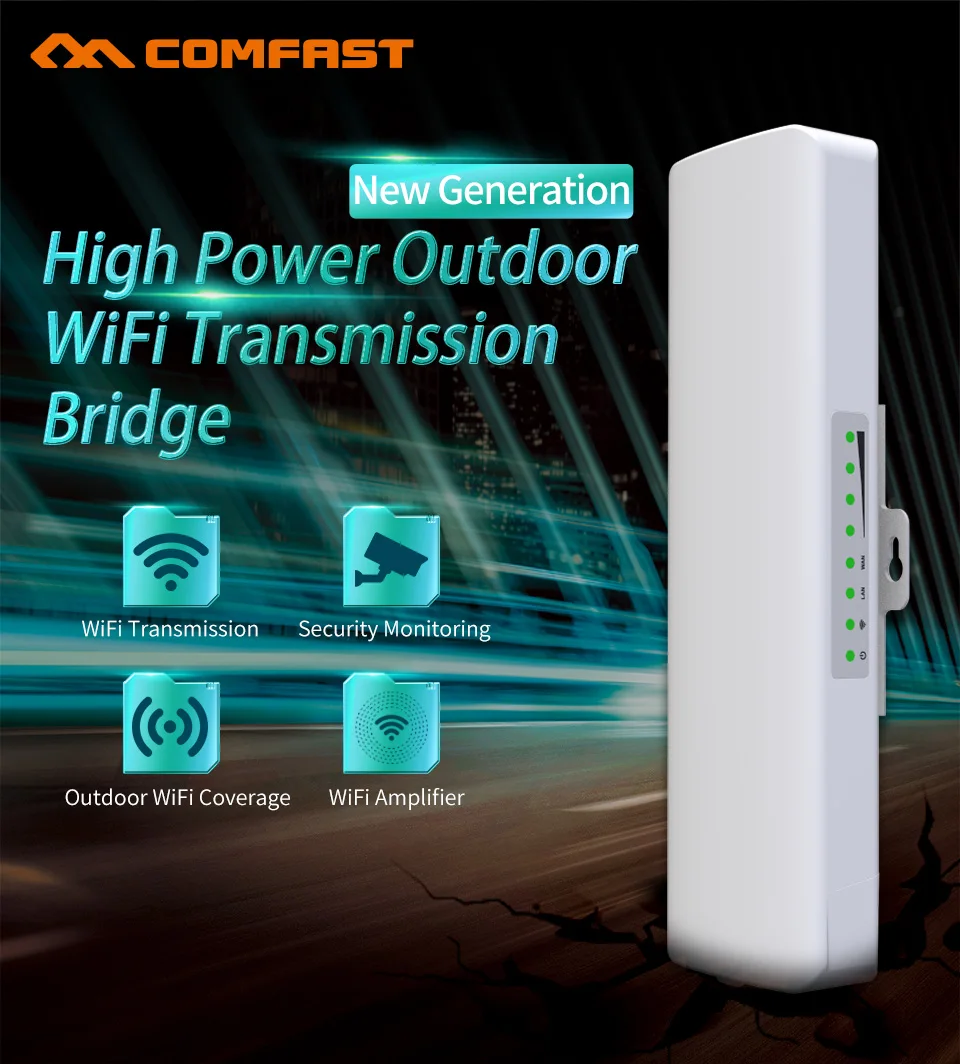

-COMFAST CF-E314N 300Mbps Wireless outdoor CPE ,Indoor&Outdoor Point-to-Point wireless Bridge/CPE.

–Supports 2-5KM transmission distance solution for PTP, PTMP application (WDS)Wireless Access Point/Bridge.

–CF-E314N  is a high performance 300Mbps outdoor CPE with LED display to configure the WDS PT/PTMP connection.

–Save much human work and cost, make the long range wireless Transmit, data transmit and wireless monitoring.

–Compatible with 802.11b/g/n,2.4 GHz  300Mbps wireless speed ensures high speed internet access and more end users access.

–Suitable for long range video transmission point to point 2-5km Pre-program WDS mode ,Very simple installation .

—Easy to set CPE with IP camera(cameras) and networks DVR also support long range wifi Transmit .

–Wireless CPE Bridge Waterproof, dust proof, lighting protection. Operating Temperature: -30℃-55℃  Storage Temp: -40℃-70℃

 –Equipped 2 *10/100M LAN ports, 2 times Ethernet data rate faster than normal CPE ,Support Gateway (PPPOE, static IP, dynamic IP), Wireless AP, Repeater, WDS operation mode.

Main Features:

1. AR9341Chipset, 802.11b/g/n Support

2. Built-in 14dBi 2×2 dual-polarized directional MIMO antenna

3. Adjustable transmission power from 0 to 27dBm/500mw

4. AP / Wireless Client / Repeater operation modes

5. Outdoor stabilized enclosure with IP65 waterproof

6. High Quality 48V Poe Adapter

7. Extend the reach of your existing company network to another building

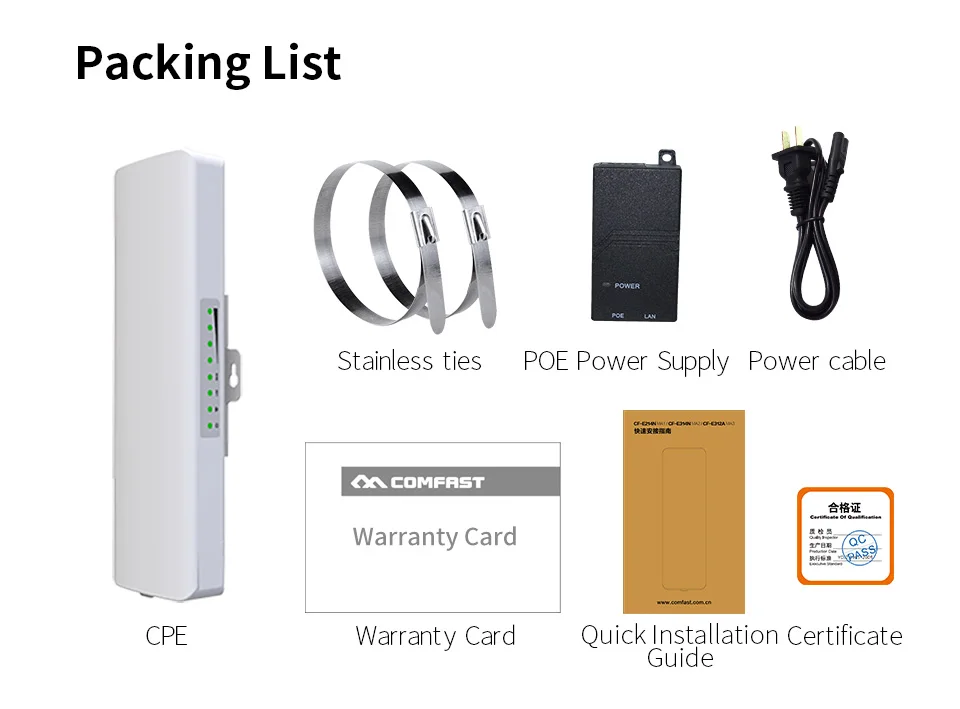

Package included :

Outdoor CPE *1 or 2

Poe Adapter*1 or 2

Quick install guide *1 or 2

Stainless Steel Ring *1 or 2

 Please make a note what plug you need or we will send according your country need ,many thanks!

8 Advantages Quality Assurance

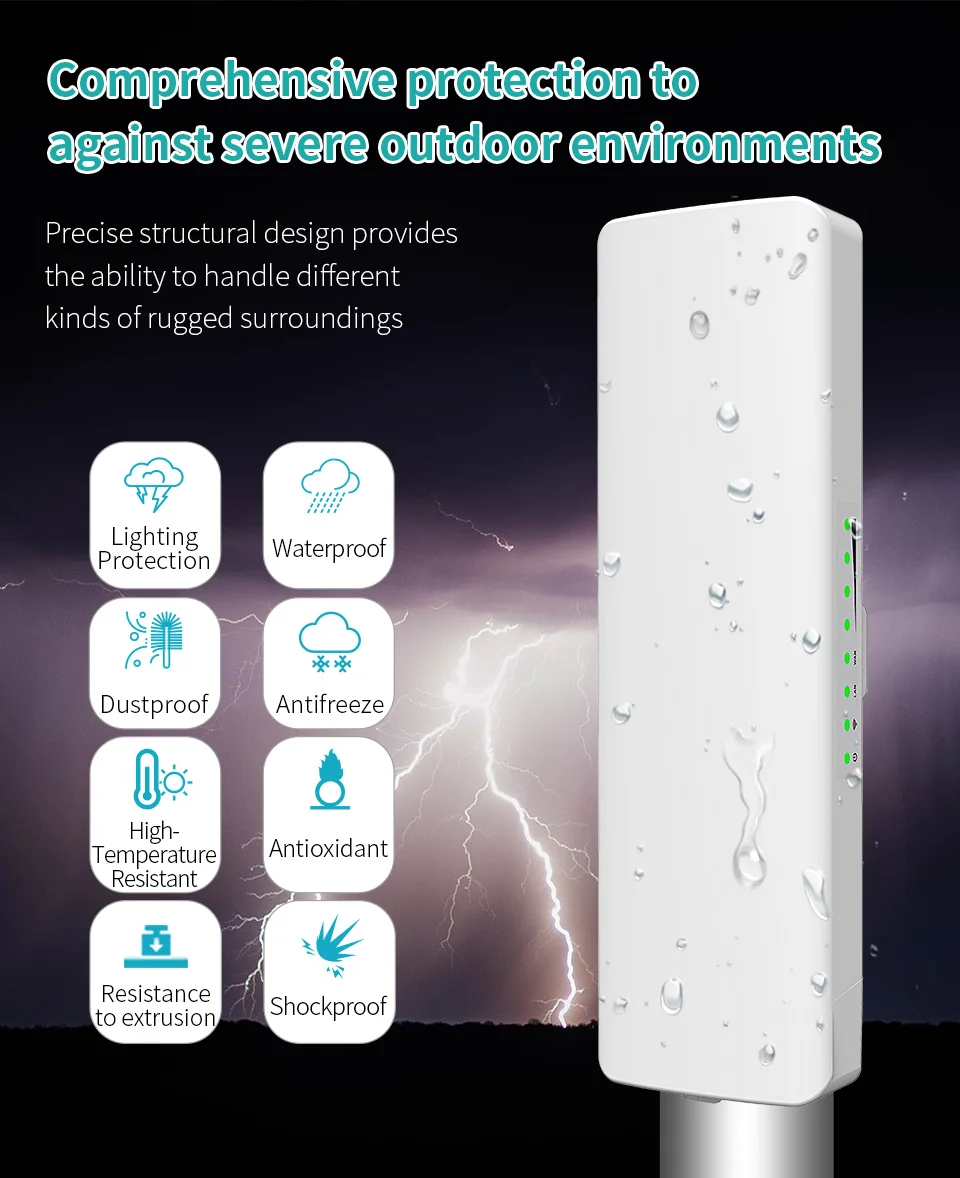

2* 14dbi Antenna / Professional Outdoor Protection / Qualcomm Chip High Quality / Built-in Power Amplifier Chipset / WDS Technology / Easy Set-up / No Crack WiFi Hide SSID / Four Modes Multi FunctionsComprehensive protection to against severe outdoor environments

Precise structural design provides the ability to handle different kinds of rugged surroundings

Lighting Protection / Waterproof / Dustproof / Antifreeze / High-Temperature Resistant / Antioxidant / Resistance to extrusion / ShockproofLow Temperature Protection

It can support work and start up under low temperature.Qualcomm Chip Perfect Performance

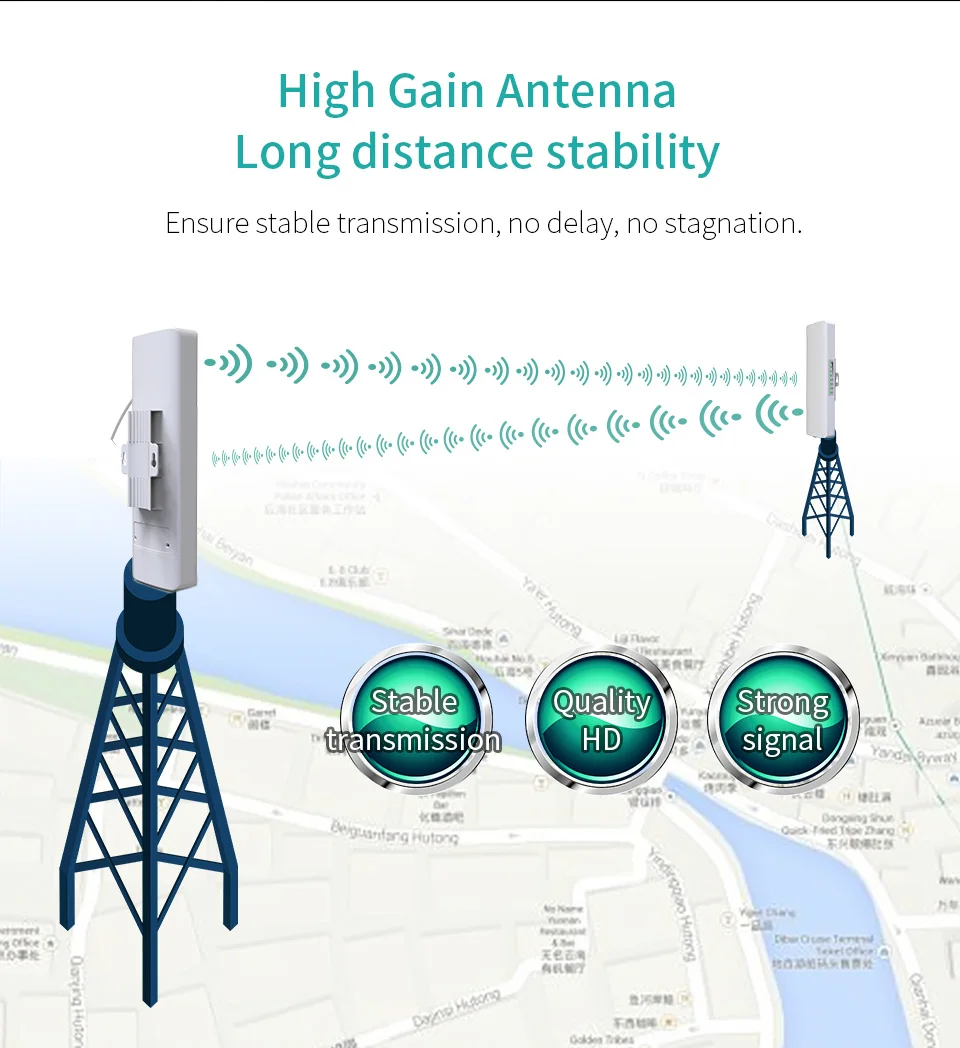

As Qualcomm’s global strategic partner, COMFAST products all use Qualcomm chipset, because we believe that QUALCOMM holds the high performance highland around the world.High Gain Antenna,Long distance stability

Ensure stable transmission, no delay, no stagnation. More channels Less interference

It provides more optional channels. And support channel automatic selection.Substantially reduce the interference From same channel when transfer signal.48V POE Power Supply ,Reduce network costs

Toggle the switch to the left, connect a network cable to supply power to the surveillance camera, and realize view transmission, saving engineering cost and power supply troubles!

No external power supply required / only one network cable / safe and simpleHidden SSID Safety WiFi

Support SSID hiding, solve network problems, and ensure project stabilityPowerful Sinmax Software OS

SINMAX is a multifunctional software OS and it is very easy to do settings up.

Connect Application Diagram

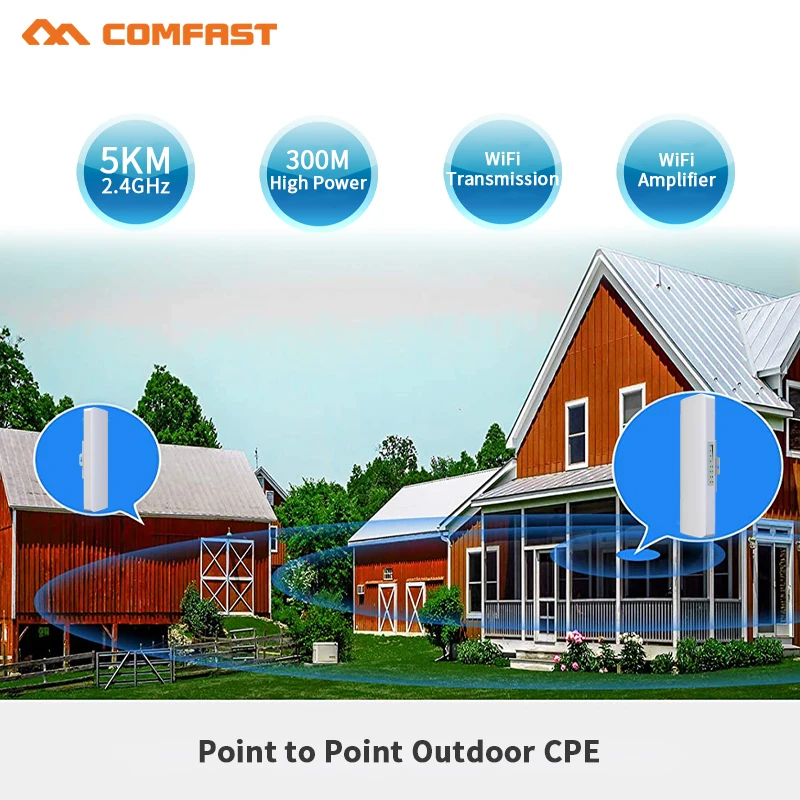

1、Point to Point Connection Diagram

①Multiple cameras connecting way 1: Connect the camera to the switch, then connect withCOMFAST CPE. It will transmit the data through two CPE.

②Multiple cameras connecting way2: If the distance among the cameras is so far,each camera is configured with double CPE. The control center connect CPE with AP mode through the switch, then connect with the DVR.

2、Point to Multi-point Connection Diagram

If the angle between camera and control center is within 60 , there can consider one point

to multi point connection. It can reduce CPEs with the transimitting mode, which can save

project cost a lot. Pls pay attention that it has to be meet the angle and brandwith requirements.

In wireless monitoring transmission, we suggest you to use above way to do connection. Pls pay attention that the transimission angle for the device is 60°Construction assistant

Four signal strength indicator for easy construction adjustment When the signal indicator is weak, it may be set to be aligned or too far away. Please adjust according to the signal indicator.

Note: When the signal strength is very weak, the device may be misaligned or the distance is too far. Please adjust according to the signal indicator.How to connect

A:This is a directional Antenna , For no obstacles environment 2pcs Point to Point can reach 1-5KM

Q2.How Many pieces included in the package ?

A:There have 2 choices, when you make order it will show 1pcs or 2pcs, If you want to reach long distance and better signal ,we suggest that you choose 2pcs,(Wifi signal is affected by many factors,such as trees, walls, buildings, trucks, etc., raw network signals)

Q3.Does it work as a WiFi repeater?

A:The Antenna support AP/Router/Repeater/Bridge mode

can set as repeater mode , just repeater mode will have signal loss , generally we suggest set 1pcs connected with router by network cable as AP mode and another 1pcs to receive the signal from the fist one set as bridge mode.

Q4.If use 1pcs can reach 300m?

A: If just use 1pcs thisdepond on the real using environment , Because just use 1pcs ,then can not set as bridge mode , the range willlimited,wifi signal be effected by many factors,trees,walls , trucks …

Also if the receive wifi device with low power ,also can not have a good range.

Q5.If the antenna can be connected with 48V poe switch?

A: The Antenna can connected with 48V poe switch as power supply

Q6. Does it included the Poe Adapter ?

A: Yes, Packaged included the 48V Poe Adapter

Q7. Does the antenna wifi coverage 1km?

A: The antenna is directional antenna , not the omnidirectional , need 2pcs point to point no obstacles environment can reach 1-5km.

Real picture showed
