COMFAST Outdoor High Power Weatherproof CPE/Wifi Extender/Access Point/Router/2.4G 2-5km 300Mbps WIFI Antenna Bridge Nanostation

1-5KM long Range Wifi Transmission Outdoor Wireless CPE bridge 2.4Ghz Comfast  Wifi access Point repeater  Wifi antenna Nanostation

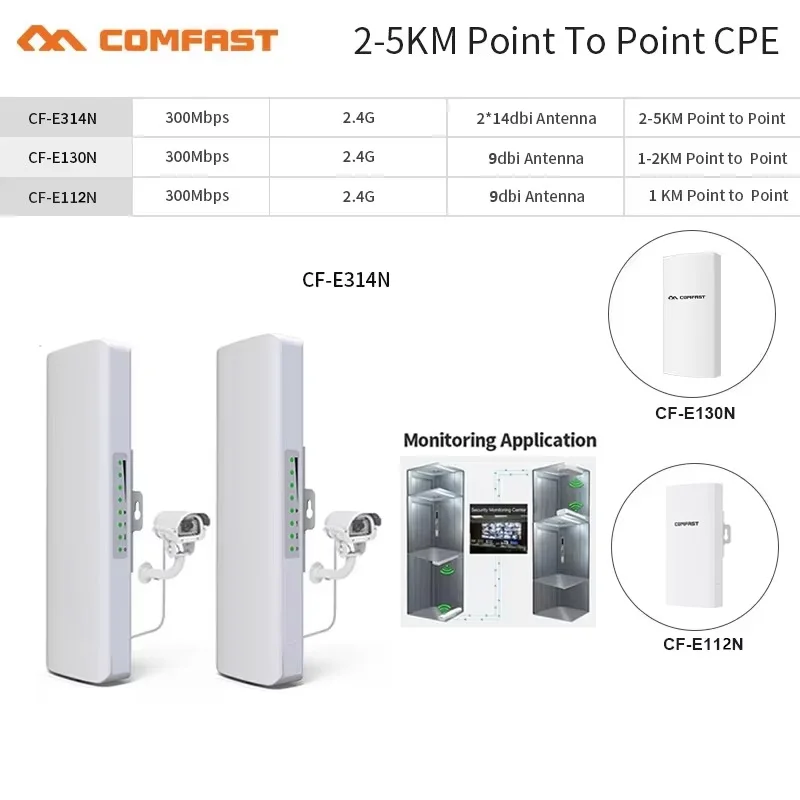

Difference:

CF-E314NV2 300Mbps 2.4G 2*14dbi Antenna 500mW 48V Poe Adapter 2 RJ45 Port Point to Point 3-5KM

CF-E112NV2  300Mbps 2.4G    9dbi Antenna      200mW     48V poe Adapter     2 RJ45  Port  Point to Point 1KM

CF-E130NV2 300Mbps 2.4G 9dbi Antenna 200mW 9-24V poe Adapter 1 RJ45 Port Point to Point 1KM

Installation Instructions：

CF-E314NV2 Product Overview:

-COMFAST CF-E314N 300Mbps Wireless outdoor CPE ,Indoor&Outdoor Point-to-Point wireless Bridge/CPE.

–Supports 2-5KM transmission distance solution for PTP, PTMP application (WDS)Wireless Access Point/Bridge.

–CF-E314N  is a high performance 300Mbps outdoor CPE with LED display to configure the WDS PT/PTMP connection.

–Save much human work and cost, make the long range wireless Transmit, data transmit and wireless monitoring.

–Compatible with 802.11b/g/n,2.4 GHz  300Mbps wireless speed ensures high speed internet access and more end users access.

–Suitable for long range video transmission point to point 2-5km Pre-program WDS mode ,Very simple installation .

—Easy to set CPE with IP camera(cameras) and networks DVR also support long range wifi Transmit .

–Wireless CPE Bridge Waterproof, dust proof, lighting protection. Operating Temperature: -30℃-55℃  Storage Temp: -40℃-70℃

 –Equipped 2 *10/100M LAN ports, 2 times Ethernet data rate faster than normal CPE ,Support Gateway (PPPOE, static IP, dynamic IP), Wireless AP, Repeater, WDS operation mode.

Main Features:

1. AR9341Chipset, 802.11b/g/n Support

2. Built-in 14dBi 2×2 dual-polarized directional MIMO antenna

3. Adjustable transmission power from 0 to 27dBm/500mw

4. AP / Wireless Client / Repeater operation modes

5. Outdoor stabilized enclosure with IP65 waterproof

6. High Quality 48V Poe Adapter

7. Extend the reach of your existing company network to another building

Package included :

Outdoor CPE *1 or 2

Poe Adapter*1 or 2

Quick install guide *1 or 2

Stainless Steel Ring *1 or 2

8 AdvantagesQuality Assurance

2* 14dbi Antenna / Professional Outdoor Protection / Qualcomm ChipHigh Quality / Built-in PowerAmplifier Chipset / WDSTechnology / Easy Set-up / No CrackWiFi Hide SSID / Four ModesMulti Functions

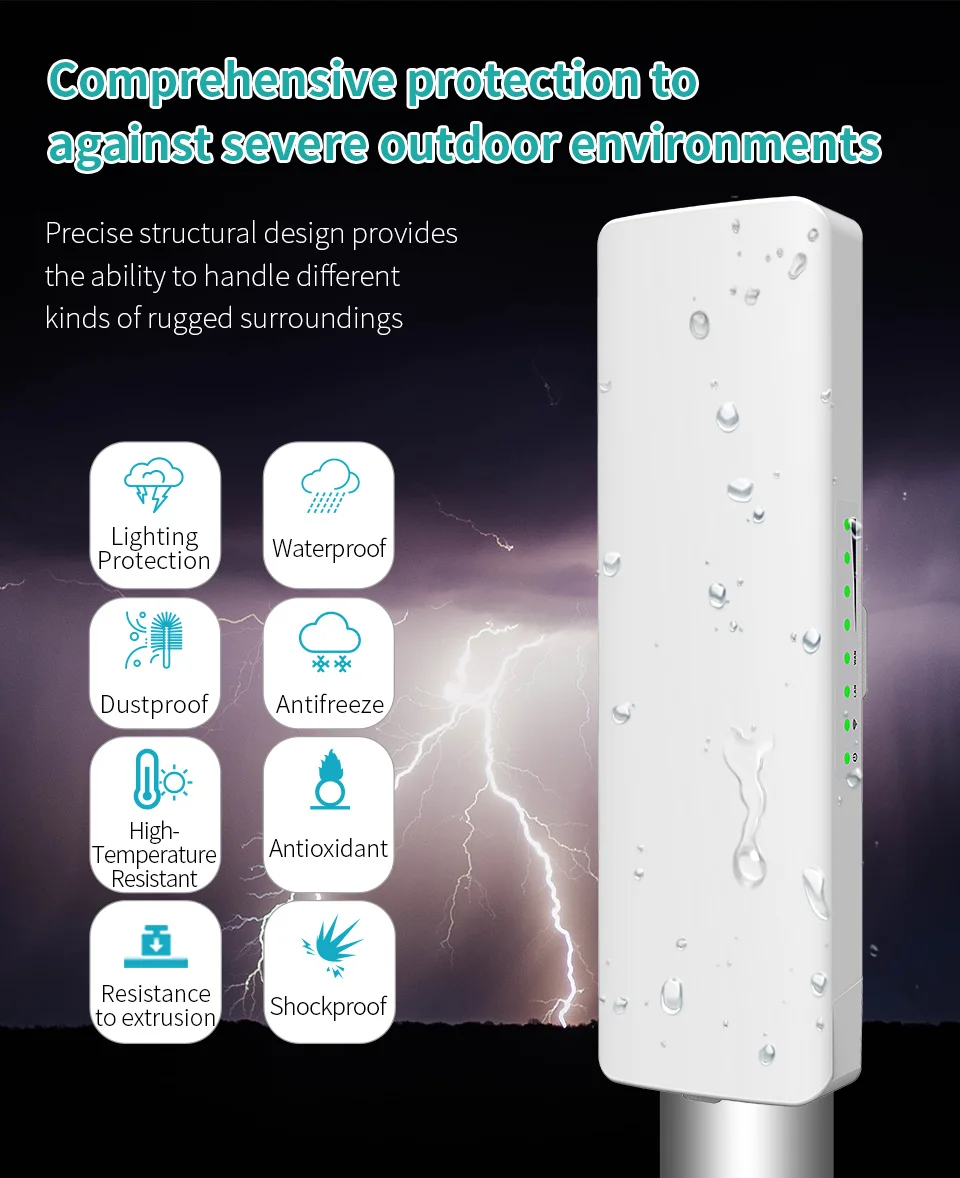

Comprehensive protection toagainst severe outdoor environments

Precise structural design providesthe ability to handle differentkinds of rugged surroundings

LightingProtection / Waterproof / Dustproof / Antifreeze / High-TemperatureResistant / Antioxidant  / Resistanceto extrusion / Shockproof

Low Temperature Protection

It can support work and start up under low temperature.

Qualcomm Chip Perfect Performance

As Qualcomm’s global strategic partner, COMFAST productsall use Qualcomm chipset, because we believe that QUALCOMMholds the high performance highland around the world.

High Gain Antenna,Long distance stability

Ensure stable transmission, no delay, no stagnation.

48V POE Power Supply ,Reduce network costs

Toggle the switch to the left, connect a networkcable to supply power to the surveillancecamera, and realize view transmission, savingengineering cost and power supply troubles!

No external powersupply required / only onenetwork cable / safe and simple

Connect Application Diagram

1、Point to Point Connection Diagram

①Multiple cameras connecting way 1: Connect the camera to the switch, then connect withCOMFAST CPE. It will transmit the data through two CPE.

②Multiple cameras connecting way2: If the distance among the cameras is so far,each camera is configured with double CPE. The control center connect CPE with AP mode through the switch, then connect with the DVR.

2、Point to Multi-point Connection Diagram

If the angle between camera and control center is within 60 , there can consider one point

to multi point connection. It can reduce CPEs with the transimitting mode, which can save

project cost a lot. Pls pay attention that it has to be meet the angle and brandwith requirements.

In wireless monitoring transmission, we suggest you to use above way to do connection. Pls pay attention that the transimission angle for the device is 60°

Construction assistant

Four signal strength indicator for easy construction adjustment When the signal indicator is weak, it may be set to be aligned or too far away. Please adjust according to the signal indicator.

Note: When the signal strength is very weak, the device may be misaligned or the distance is too far. Please adjust according to the signal indicator.

access point wifi outdoor mostek bezprzewodowy

extensor de señal wifi

wifi cpe wifi router long range cpe exterior wireless bridge outdoor камера роутер

punto a punto para internet

How to connect

wifi extender outdoor ripetitore wifi da esterno lunga distanza estensore segnale wifi wifi esterno trasmettitorw wifi per amplificatore

беспроводной мост comfast wifi мост уличный вай фай

wlan repeater steckdose wlan störsender

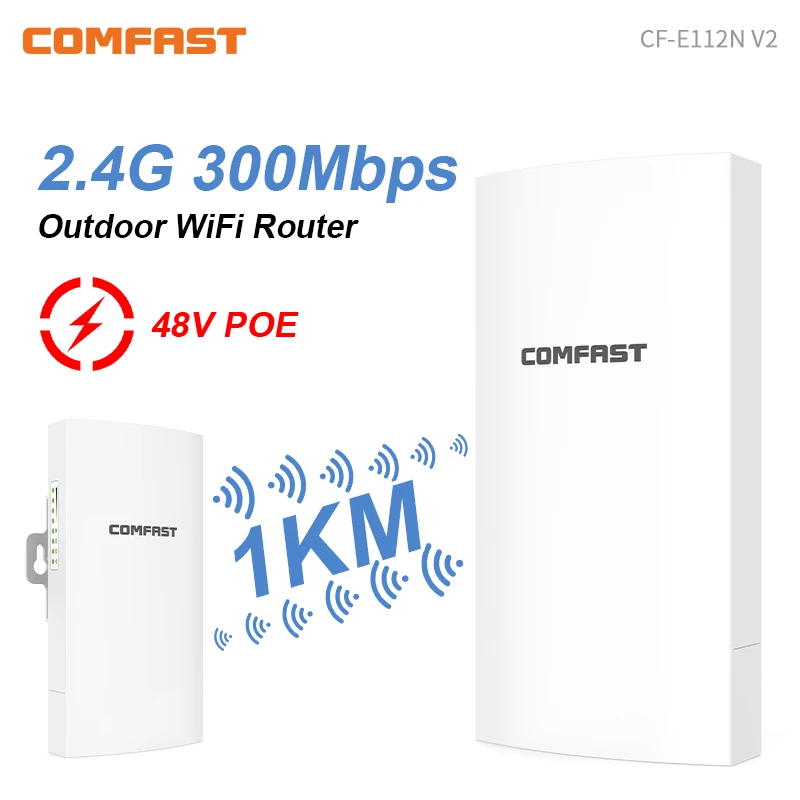

CF-E112NV2 Targeted pairing CPE 300Mbps 1KM

Main Features

7.8*Indicator(Power, 2*WAN/ LAN, WiFi, Signal(1-4))

point acces wifi exterieur range extender wi fi antenne wifi exterieur longue portée antenne wifi exterieur

ap 라우터 실외 와이파이 증폭기 와이파이확장 실외 와이파이 증폭기

roteador wifi longo alcance roteador wifi longo alcance repetetidor wifi repetidor wifi amplificador repetidor wifi longo alcance externo roteador potente longo alcance wifi extender outdoor

cf

CF-E130NV2



A:This is a directional Antenna , For no obstacles environment 2pcs Point to Point can reach 1-5KM (According the you choose,2pcs CF-E130N 1KM, 2pcs CF-E110N 1-3KM,2pcs CF-E314N 1-5KM)

Q2.How Many piece included in the package   ?

A:There have 2 choices, when you make order it will show 1pcs or 2pcs, If you want to reach long distance and better signal ,we suggest that you choose 2pcs,(Wifi signal is affected by many factors,such as trees, walls, buildings, trucks, etc., raw network signals)

Q3.Does it work as a WiFi repeater?

A:The Antenna support AP/Router/Repeater/Bridge mode ,can set as repeater mode , just repeater mode will have signal loss , generally we suggest set 1pcs connected with router by network cable as AP mode and another 1pcs to receive the signal from the fist one set as bridge mode.

Q4.If use 1pcs can reach 300m?

A: If just use 1pcs thisdepond on the real using environment , Because just use 1pcs ,then can not set as bridge mode , the range will have limited,wifi signal be effected by many factors,trees,walls , trucks …

Also if the receive wifi device with low power ,also can not have a good range.

Q5.If the antenna can be connected with 48V poe switch?

A: CF-130N/CF-E110N need connected with 9-24V Poe Switch

     CF-314N need connected with 48V poe switch

Q6. Does it included the Poe Adapter ?

A: Yes, the packaged included the Poe Adapter

Q7. Does the antenna wifi coverage 1km?

A: The antenna is directional antenna , not the omnidirectional , need 2pcs point to point no obstacles environment can reach 1-5km.
