COMFAST Long Range Outdoor WIFI CPE 300-900M 2.4/5G Wireless AP Bridge Access Point WIFI Antenna Repeater Nanostation Amplifer

3-10KM Long Range Outdoor WIFI CPE 300-900Mbps 2.4/5Ghz Wireless AP Bridge Access Point WI-FI Antenna Repeater Nanostation Amplifer Router

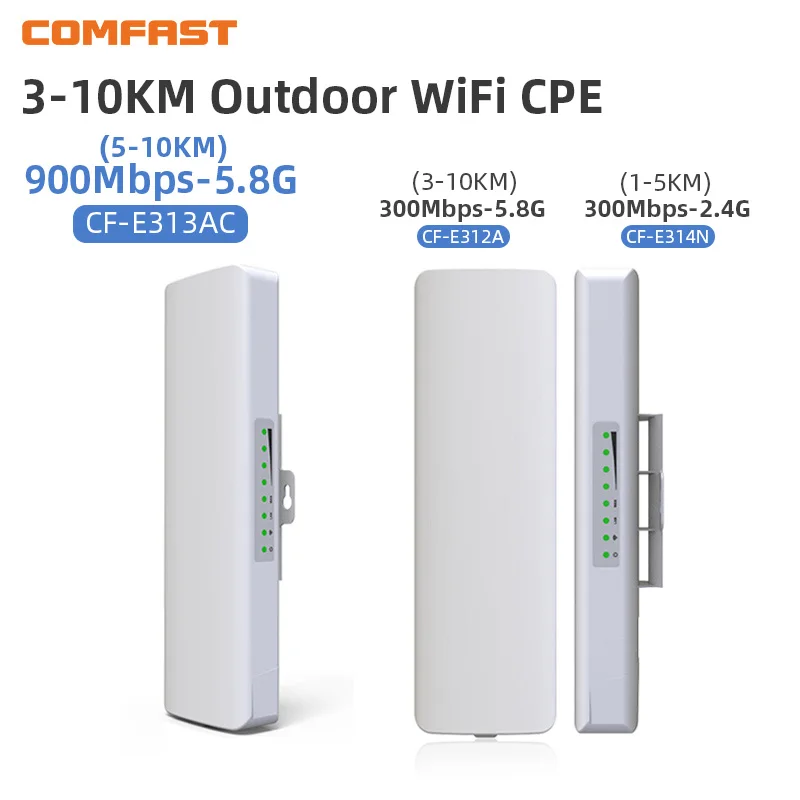

Difference :

CF-E313AC 900Mbps     5-10KM      5.8G WirelessCPE     2*12dbi Antenna        48V Poe Adapter

CF-E312AV2  300Mbps     3-10KM     5.8G Wireless CPE    2*14dbi Antenna        48V Poe Adapter

CF-E314NV2  300Mbps    1-5KM        2.4G Wireless CPE      2*14dbi Antenna        48V Poe Adapter

Installation Instructions：

Suggestion:

The distance “3-10KM” mean 2pcs CPE based on point to point bridge mode.

There are many factors that affect distance, such as obstacles

(trees, walls, buildings, trucks, etc.), raw network signals, etc
If you want the good signal, we suggest you buy 2pcs!

CF-E313AC Product Overview：

—CF-E313ACWireless Outdoor CPE is specially designed to provide cost effective solution for outdoor wireless networking applications.

—It adopts the latest 802.11a/an/ac standard, delivering wireless speeds up to 900Mbps. With two built-in 12dbi  antennas, high power output and multiple working modes.

—CF-E313AC is used extensively in point to point, point to multipoint and outdoor WiFi coverage  applications. Meanwhile, its professional structural design is suitable for any kinds of severe climate. So it is an ideal choice for outdoor Wi-Fi transfer over long distance.

—Waterproof wireless AP/Outdoor CPE/Network Bridge/Repeater/WIFI signal booster & Amplifier ,for Ip cam monitor/ elevator monitor

—Outdoor Point to point as wifi bridge 5km (no obstacles)

5.8G cpe more better for the ip cam monotor or elevatior , less interference ,long Range Wifi Transmit.

Main Features：

1. QCA9531+QCA9886 Chipset, 802.11a/an/ac Support

2. Built-in 12dBi dual-polarized directional MIMO antenna

3. Adjustable transmission power from 0 to 23dBm/200mw

4. AP / Wireless Client / Repeater operation modes

5. Outdoor stabilized enclosure with IP65 waterproof

6. High Quality 48V Poe Adapter

7. Extend the reach of your existing company network to another building

Package included :

CF-E313AC CPE *1/2
Poe Adapter*1/2
Quick install guide *1/2
Power cable *1/2
Stainless Steel Ring *2/4

900Mbps5.8GHzOutdoor CPE

5km Monitoring Transmission

. Easy installation

. Dual network port POE power supply

9 Advantages Make it Extraordinary

HD CPE Worry-Free Monitoring

Choose COMFAST CPE, Make monitoring worry free

900Mbps / 5km Transmission / 5.8G Anti-interference

Support 10-20HD cameras / Qualcomm Chip

Dual network portpower supply / High-power

-30°CLow Temperature / Easy Setup

CF-E313AC use 802.11ac wireless technology,make transmission faster and more fluentwith 900Mbps.
5km Stable Transmission

Full engineering-level hardware technology with two high-power PA RF poweramplifier chips, can achieve 5km point to point and point to multipointtransmission, and separate monitoring and centralized management ofdistributed video surveillance in different manufacturing sites orconstruction sites, terminals, parks, etc.

HD Video TransmissionNO Delay, No Pause

5GHz 900Mbps, provide multiple channels to choose, improve Wi-Fi signal,avoid data loss, reduce video pause, guarantee stable HD quality.Powerful hardware configuration ensures high quality HD transmission.

Qualcomm Chips Guarantee Perfect Performance

Qualcomm chipset has been tested and precipitated over time,and it is trusted and favored by engineering users.

Chips       Qualcomm 650Mhz High quality

Antenna High Gain orientation for long distance transmission

RAM       64M,Help CPU work provide smoother network

RF         23dbm

Setup   Easy set up in Low Temperature

FM       16MB Strong data exchange capability

Reduce Interference Effectively with 5.8GHz

Too many equipment working in 2.4GHz cause interference. CF- E313ACworks in 5.8GHz, which reduces interference, makes POE work more stable.

Comprehensive Protection against

Severe Outdoor Environment

Precise structural design provides the ability to handledifferent kinds of rugged surroundings.

Low Temperature Protection

It can support work and start up in low temperature.

Precise Location

Four-grid signal strength indicator for easy construction adjustment.When the signal indicator shows weak, it can be set to be aligned.Pls adjust according to the signal indicator.

POE Power Supply, More Convenience

CF-E313AC supports power supply with dual network ports, effectivelysolves the problem of webcam power supply difficulties andenable seamless IP video integration.

Toggle the switch to the left, then it suppliespower to the surveillance camera andrealizes view transmission, saving engineeringcost and power supply troubles.

Connecting Application Diagram

Point- to-point connection diagram

Multiple cameras connecting way 1: Connect the camera to the switch, thenconnect with COMFAST CPE. It will transmit the data through two CPE.

Multiple cameras connecting way 2: If cameras are far away from each other,configure each camera with two CPEs. The control center connects CPE withAP mode via switch, then connect with DVR.

Point to Muti-point Connection Diagram

If the angle of camera and monitor center is less than 60degree,there canconsider one point to multi point connection.It can reduce CPEs with thetransmitting mode,which can save project cost a lot.Pls pay attention thatit has to meet the angle and Broadband requiement.

In wireless monitoring transmission,we suggestyou to use above way to do connection.Pls payattention the transmission angle for the device

CF-E312AV2

CF-E314NV2

How to connect :

Q&A
Q1.How long the range of the antenna  ?

A:This is a directional Antenna , For no obstacles environment 2pcs Point to Point can reach 3-10KM

Q2.How Many pieces included in the package ?

A:The link included  2 choices, when you make order it will show 1pcs or 2pcs, If you want to reach long distance and better signal ,we suggest that you choose 2pcs,(Wifi signal is affected by many factors,such as trees, walls, buildings, trucks, etc., raw network signals)

Q3:Does it included the poe adapter ?

A:The package included standard antenna with 48V poe adapter and Stainless ties ,Power cable ,Warranty card ,Installation Guide.

Q4.Does it work as a WiFi repeater?

A:The Antenna support AP/Router/Repeater/Bridge mode

can set as repeater mode , just repeater mode will have signal loss , generally we suggest set 1pcs connected with router by network cable as AP mode and another 1pcs to receive the signal from the first one set as bridge mode.

Q5.If use 1pcs can reach 300m?

A: If just use 1pcs this depond on the real using environment , Because just use 1pcs ,then can not set as bridge mode , the range willlimited,wifi signal be effected by many factors,trees,walls , trucks …

Also if the receive wifi device with low power ,also can not have a good range.

Q6.If the antenna can be connected with 48V poe switch?

A: Yes, the antenna can connected with 48V poe switch as power supply.

Q7. Does the antenna can be a router ?

A: Yes, support

Q8. Does the antenna wifi coverage 1km?

A: The antenna is directional antenna , not the omnidirectional , need 2pcs point to point no obstacles environment can reach 3-10km
