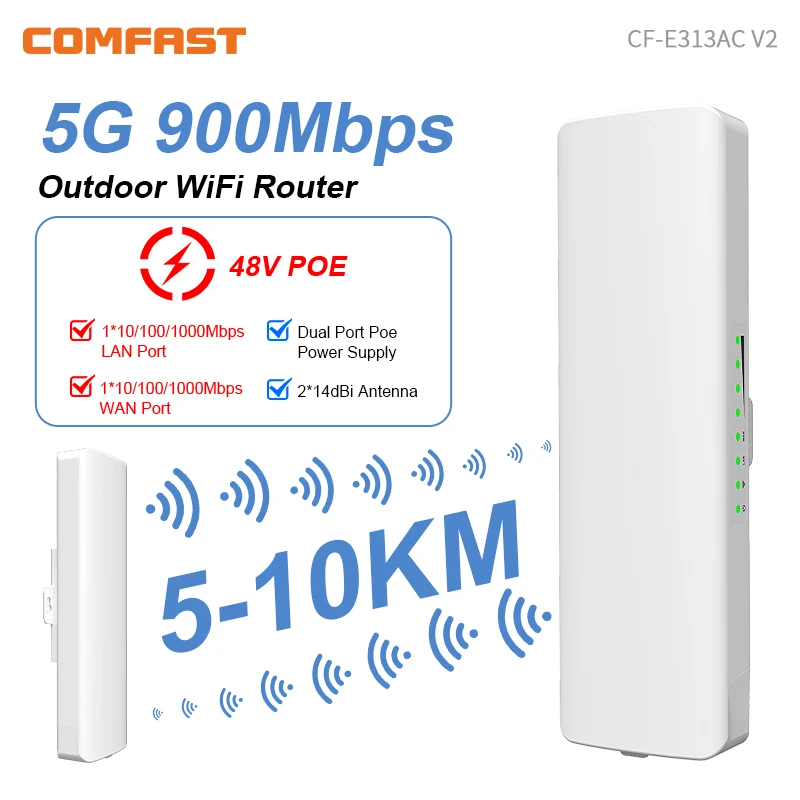

Comfast 5KM 5.8G WiFi Bridge Outdoor CPE 900Mbps Access Point Router Long Range Extender Repeater AP PTP 48VPOE Power Waterproof

5KM 5.8Ghz 300Mbps Outdoor Wireless Bridge CPE Router Wi fi Signal Amplifier Booster Extender Repeater CPE AP

set up video:

(Note: Dear customers, CF-E313ACV2 is an upgraded version of CPE. It is different from the CF-E313AC chip. If you need to update and upgrade the firmware, please identify it carefully on the comfast official website. They cannot use the same firmware upgrade. [Use the V1 version to flash V2 firmware will damage the product]).

Suggestion:

1、The distance “3-10KM” mean 2pcs CPE based on point to point bridge mode.

2、There are many factors that affect distance, such as obstacles (trees, walls, buildings, trucks, etc.), raw network signals, etc

3、If you want the good signal, we suggest you buy 2pcs!

4、Dear Russian buyers, if your order is through the channel of Cainiao Delivery-OD-RU POST, when the package arrives in the local area, please pick it up within 7 days. If you do not pick up the goods, the package will be automatically returned.

5、Please choose according your detail environment and your router , and all cpe with standard EU US UK ,AU power adapter ,please note a note which one you need ,or we will send according your country , thanks

Product advantages

• QCA9563+QCA9886+QCA8337 scheme;

• Built-in PA, strong signal, high-speed transmission;

• Comply with IEEE802.11a/an/ac standard;

• 867Mbps high-speed wireless transmission rate;

• Can carry 10-20 HD cameras

• Transmission distance up to 5 kilometers in open space;

• Built-in 2*14dBi large area gain antenna, wide transmission and reception rate;

• The signal strength indicator light allows you to intuitively understand the working status of the device;

• Imported ABS material, simple and fashionable appearance;

• Convenient outdoor installation, easy to disassemble and use;

• Outdoor safety protection, also suitable for wind, frost, rain and snow weather conditions;

product specifications

1.Output Power: 200mW(23dBm);

2.Receiving Sensitivity: -96dBm;

3.WorkingFrequency:5.180GHz-5.825GHz

Package content:

With retail box

1/2*CPE main body

1/2*48V POE power adapter

1/2*stainless steel ring

1*User manual

1*guarantee card

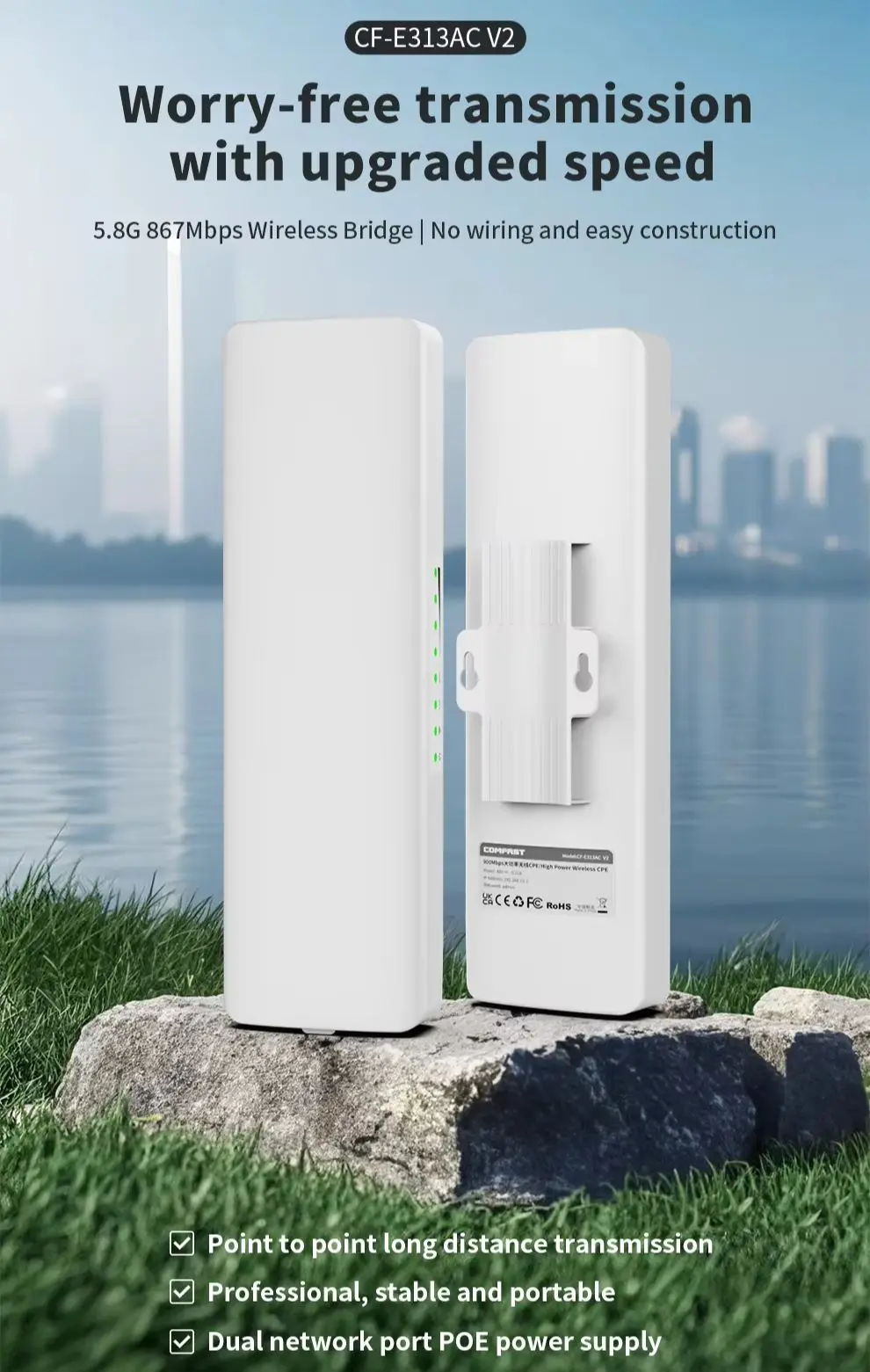

Worry-free transmission with upgraded speed

5.8G 867Mbps Wireless Bridge | No wiring and easy construction

Point to point long distance transmission

Professional, stable and portable

Dual network port POE power supplyFour reasons to choose wireless bridge

Help security industry four major advantages,can meet different scenarios network needs

Convenient construction:Wired wiring is laborious,Plug and play

Cost reduction:High cost for long distance traveling,Cost-effective bridge

Long Distance Transmission:Point-to-point directional transmission,Long distance is not a problem

Network Sharing Network Sharing sharing one networkHD bridge for worry-free monitoring

867Mbps high speed transmission

5.8Ghz anti-interference

5KM long distance transmission

Qualcomm chip

Dual network port power supply

Built-in high power PA

Simple installation

Worry-free outdoor

10-20 monitoringExtraordinary quality performance escort

adopts Qualcomm chip brand program, the performance of each big improvement,

High speed/Powerful chip/Power amplifier/High antenna gain5km stable transmission

Full engineering grade hardware technology, high power PA RF amplifier and 2*14dBi high gain antenna. Can realize 5km point-to-point and point-to-multipoint wireless transmission.

Note: Transmitter and receiver should be free of physical obstruction,otherwise it will affect the signal strength.5.8G effective anti-interference More stable data transmission

CF-E313AC V2 works in 5.8GHz band with less interference,The bridge works more stably, ensuring stable,clear and lag-free data transmission

Stable Transmission/Strong Signal/HD Monitoring lmage

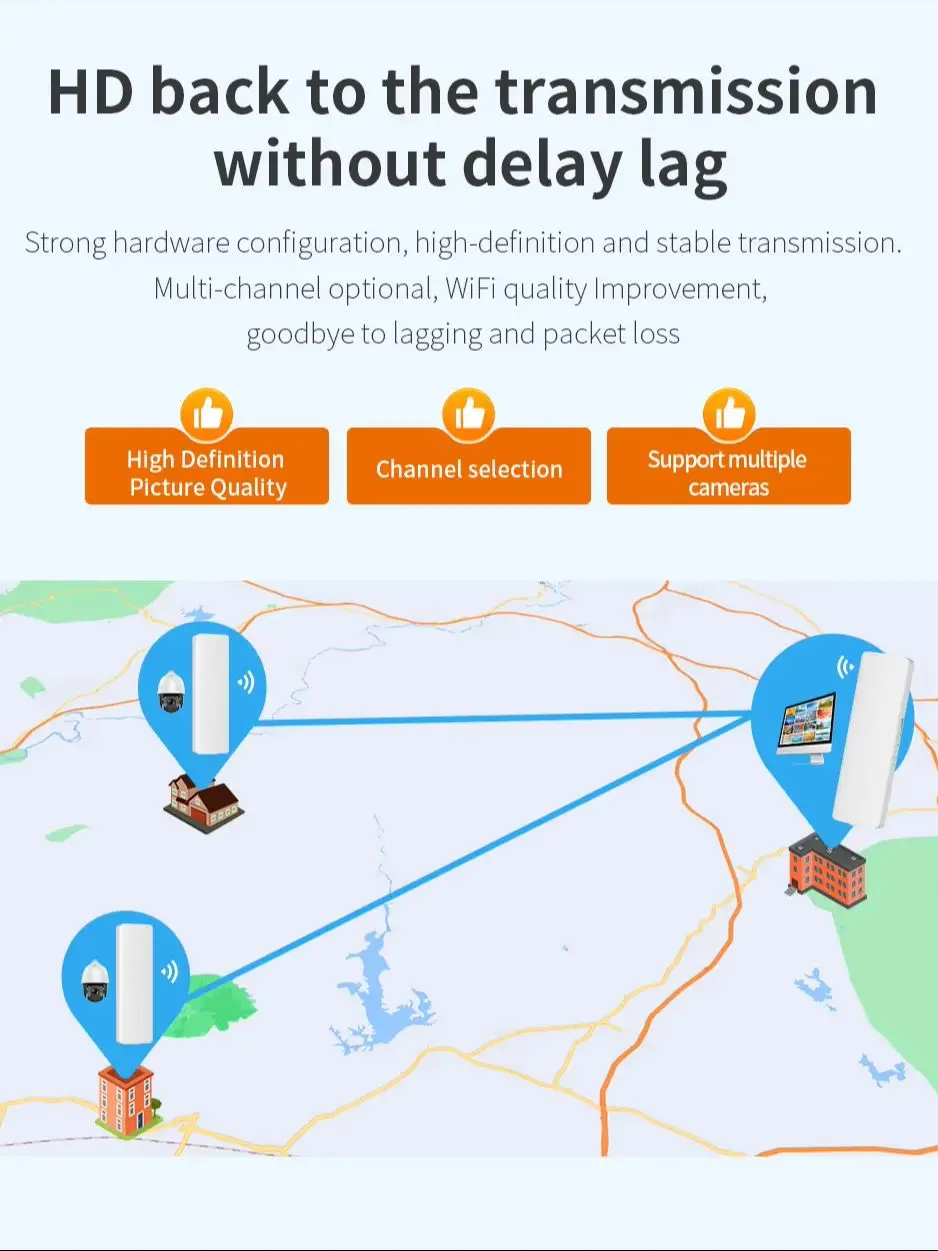

Note: The transmitter and receiver need to be free of physical obstructions,otherwise the signal strength will be affected.HD back to the transmission without delay lag

Strong hardware configuration, high-definition and stable transmission.Multi-channel optional, WiFi quality lmprovement,goodbye to lagging and packet loss

High Definition Picture Quality/Channel selection/Support multiple camerasProfessional Outdoor Design

Equipped with lP65 waterproof enclouse and high quality hardware design,CF-E313AC V2 can work in various weather conditions,such as sunshine, rainfall or extremely low/high temperature environmentDual-port POE power supply

CF-E313AC V2 supports dual POE power supply, effectively overcoming the difficult problem of network camera power supply,to meet the power supply and data transmission function.

No external power supply required/Only need a network cable/Safe and easy to use

Toggle the switch to the left and connect a network cable to power the surveillance camera and realize the view transmission, which helps you save the project cost and power supply problems!Hidden SSlD Safety WiFi

Support SSlD hiding,solve network problems,and ensure project stabilityConstruction Assistant Precise Positioning

Four signal strength indicators, according to the indicator to adjust the direction and angle of the Accurate and intuitive expression of equipment alignment,construction and installation is more convenient

Note:When the signal strength is weak, the device may not be aligned or the distance is too far,please adjust according to the signal indicator.Rich software features

The wireless bridge software has a scientific and user-friendly interface,

Both mobile phones and computers can be set up for internet access,

allowing for real-time monitoring of device statusConnecting Application Diagram

Point- to- point connection diagram

Multiple cameras connecting way 1: Connect the camera to the switch, then connect with COMFAST CPE. It will transmit the data through two CPE.

Multiple cameras connecting way 2: If cameras are far away from each other,configure each camera with two CPEs. The control center connects CPE with AP mode via switch, then connect with DVR.Point to Muti- point Connection Diagram

If the angle of camera and monitor center is less than 60degree,there canconsider one point to multi point connection.t can reduce CPEs with thetransmitting mode,which can save project cost a lot.Pls pay attention thatit has to meet the angle and Broadband requiement.

In wireless monitoring transmission,we suggestyou to use above way to do connection.Pls payattention the transmission angle for the deviceEasy Installation Method

Pole mounting without tools required

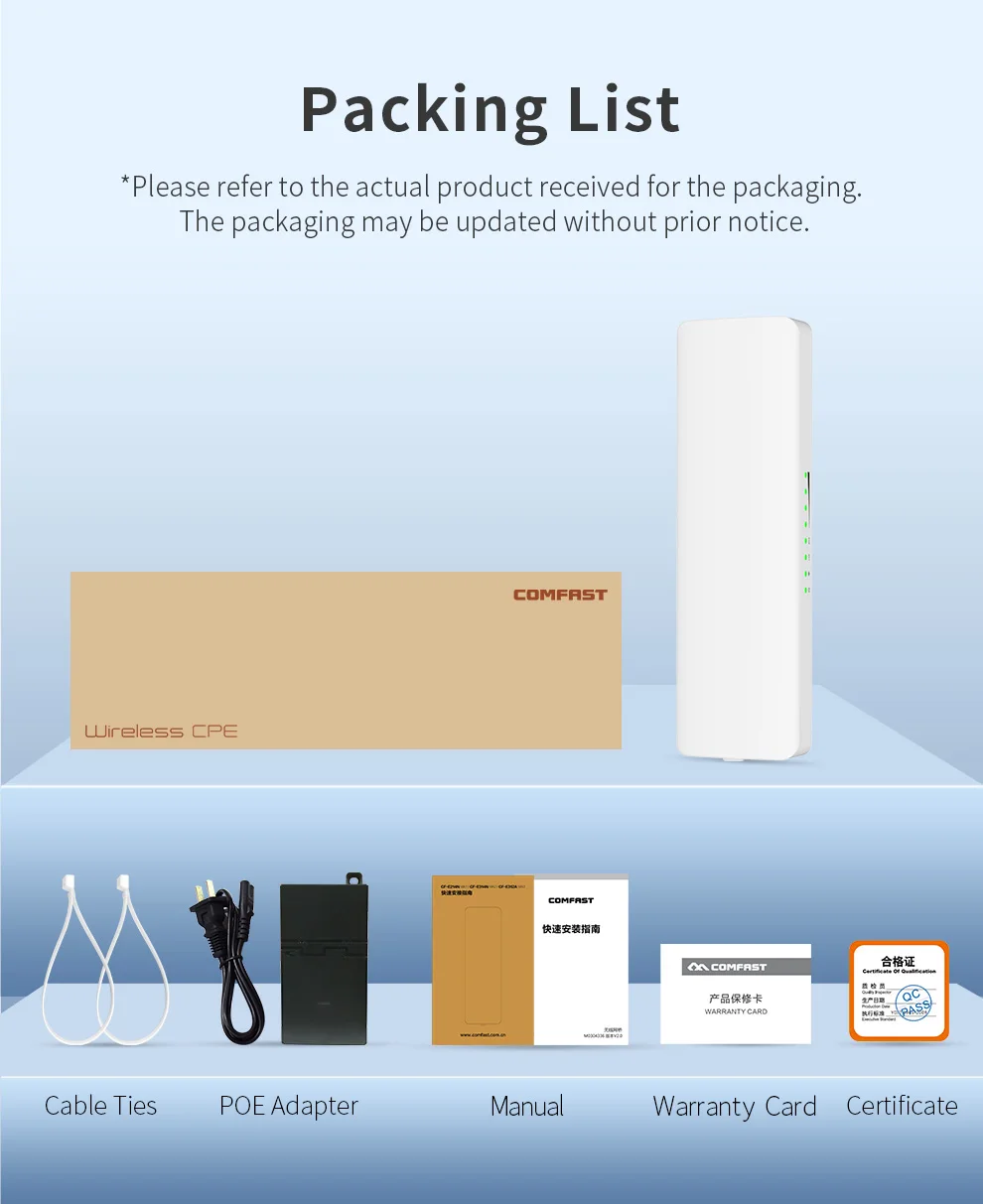

(Can be mounted on a pole, suspended, or mounted on a bracket.Please purchase the bracket yourself.)Packing List

*Please refer to the actual product received for the packaging,The packaging may be updated without prior notice.

1*CPE, 2*Cable Ties   1*48V POE Adapter, 1*Manual, 1*  Warranty Card
