COMFAST WiFi 5 PCI-E Wireless Adapter 1750Mbps MU-MIMO 2.4G/5G Wi-Fi Card 4 Antenna Wi Fi PCIe Adaptador For Desktop Win7/10/11

WiFi 5 PCI-E Wireless Adapter 1750Mbps MU-MIMO 2.4G/5GHz Wi-Fi Card 11AC 4 Antenna Wi Fi PCIe Adaptador For Desktop Win7/10/11

Feature:

1、Instant 802.11ac Wi-Fi upgrade for your desktop PC: no more messy Ethernet cables needed;WiFi reception, desktop wireless Internet access.

2、Support 2.4G / 5.8G two working frequency bands, users can freely choose according to the terminal equipment and surrounding environment, effectively avoiding wireless interference and network congestion, more stable and faster WiFi signal;

3、High-power design for greater signal coverage;

4、Specially-designed heatsink ensures stable and reliable continuous operation.

Specification：

PCI EXPRESS interface dual-band wireless network card

RTL8814AE chip

External 4*3dBi omnidirectional high-gain antenna

Antenna rotates freely

1750Mbps high-speed wireless transmission rate

Support MU-MIMO

PCI EXPRESS X1 serial bus interface

2.412-2.472GHz: 450Mbps

5.180-5.825GHz: 1300Mbps

Packing list:

1*CF-WP1750 PCI Express dual-band wireless network card

1*Waranty Card

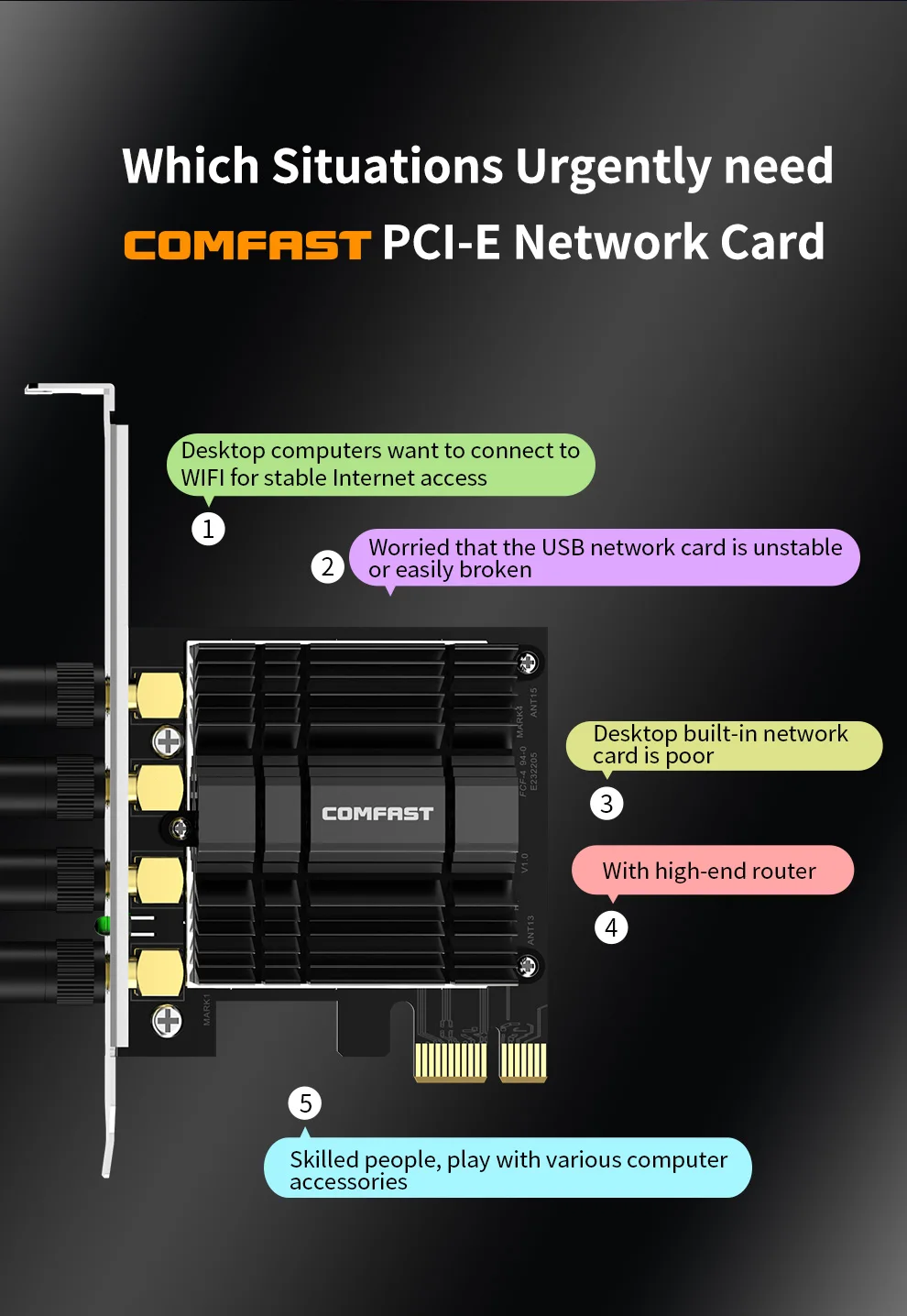

Which Situations Urgently need COMFAST PCI-E Network Card

1.Desktop computers want to connect to WIFI for stable Internet access

2.Worried that the USB network card is unstable or easily broken

3.Desktop built-in network card is poor

4.With high-end router

5.Skilled people, play with various computer accessories

8 Advantages ，Completely Comparable  to Wired Network Card

1750Mbps dual band

Well-made

Good heat dissipation

Extremely stable

Strong signal with 4 antennas

Widely compatible with multiple systems

WiFi receiving and transmitting

Simple installation

1750Mbps High-speed Experience

Up to wireless speed 1750Mbps 450Mbps 2.4Ghz + 1300Mbps 5.8Ghz Gigabit network card with optical fiber broadband,user experience fast &smooth network

(* 1750Mbps is the theoretical speed, the actual is 2.4G 450Mbps + 5.8G 1300Mbps)

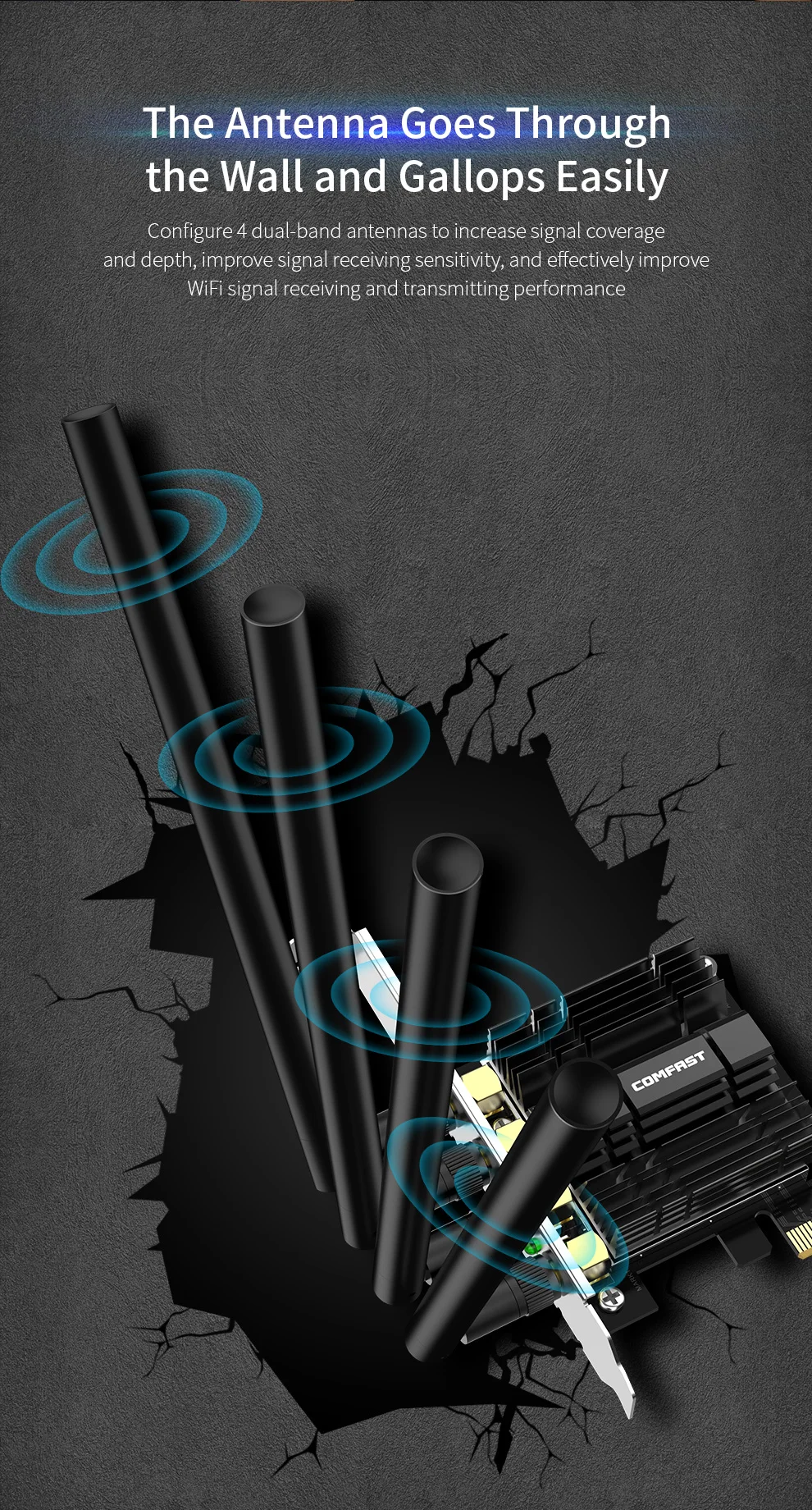

The Antenna Goes Through , the Wall and Gallops Easily

Configure 4 dual-band antennas to increase signal coverageand depth, improve signal receiving sensitivity, and effectively improveWiFi signal receiving and transmitting performance

MU-MIMO Internet，Access is More Efficient

The network card adopts a new generation of MU-MIMO(multi-usermulti- input multi-output technology). When multiple terminaldevices access the Internet together,the inefficient one by one queuingand sequential passage method becomes a highly efficient parallel advancement.

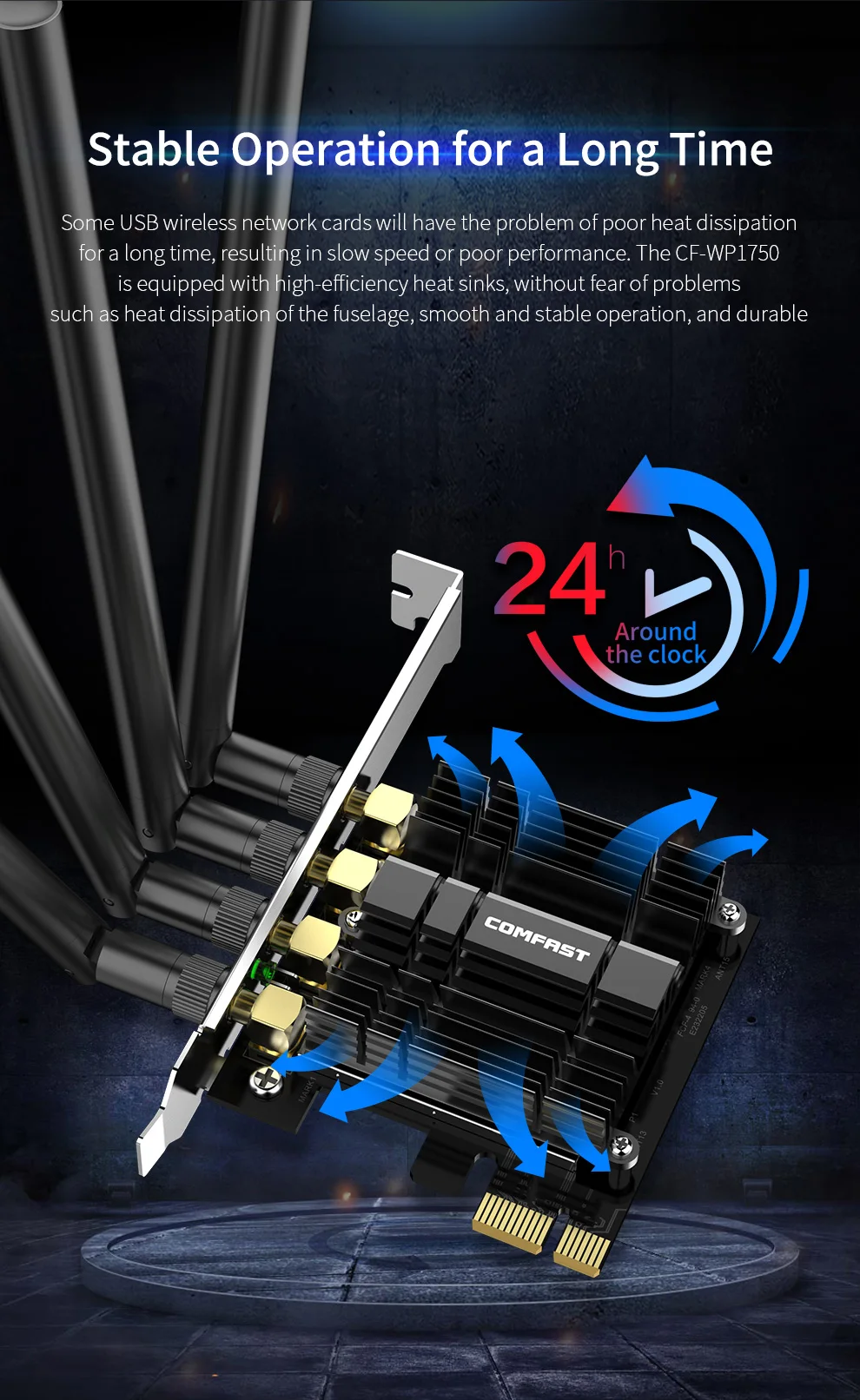

Stable Operation for a Long Time

Some USB wireless network cards will have the problem of poor heat dissipation for a long time, resulting in slow speed or poor performance. The CF-WP1750 is equipped with high- efficiency heat sinks, without fear of problems such as heat dissipation of the fuselage, smooth and stable operation, and durable

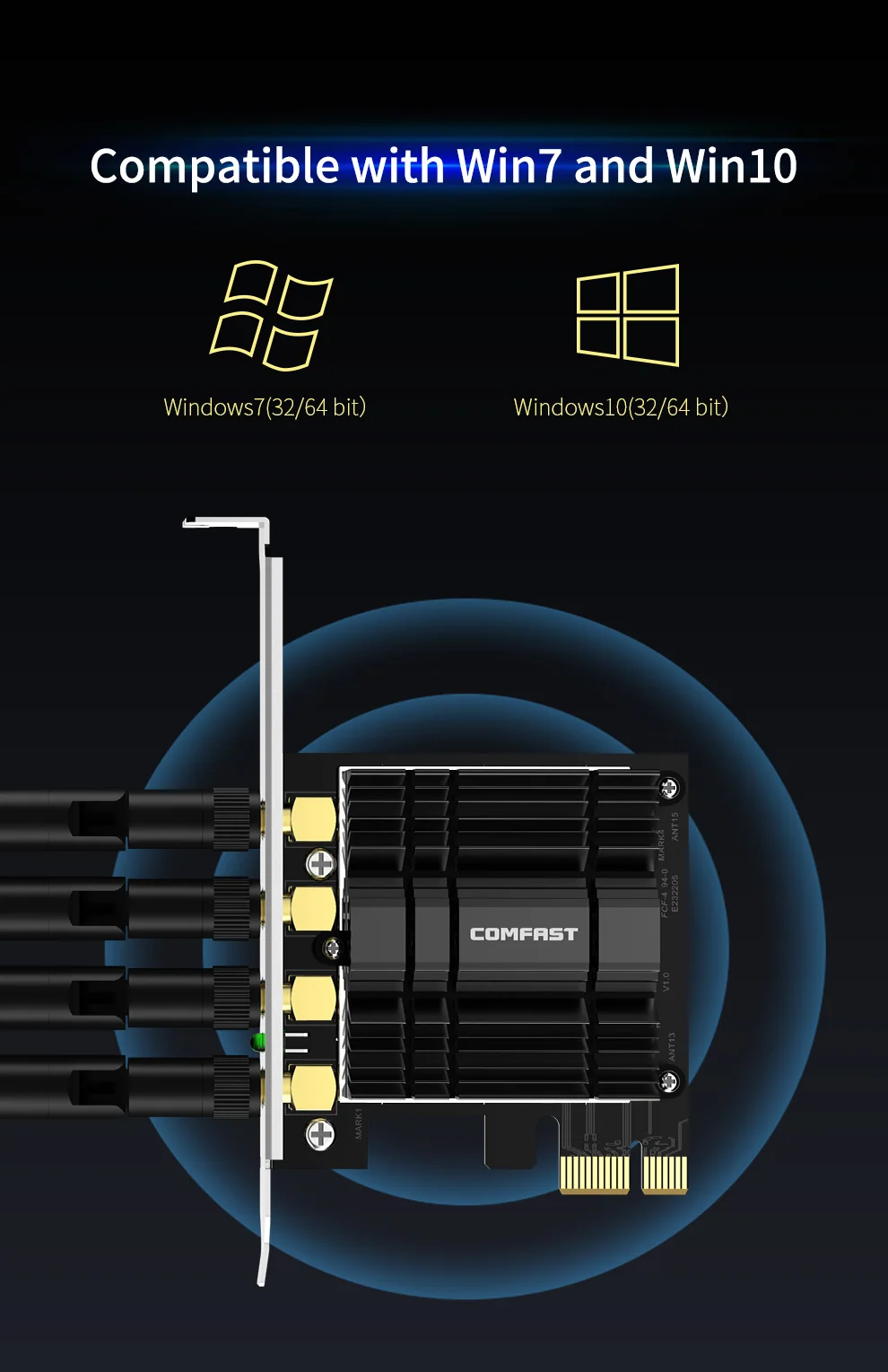

Compatible with Win7 and Win10

Windows7(32/64 bit) / Windows10(32/64 bit)

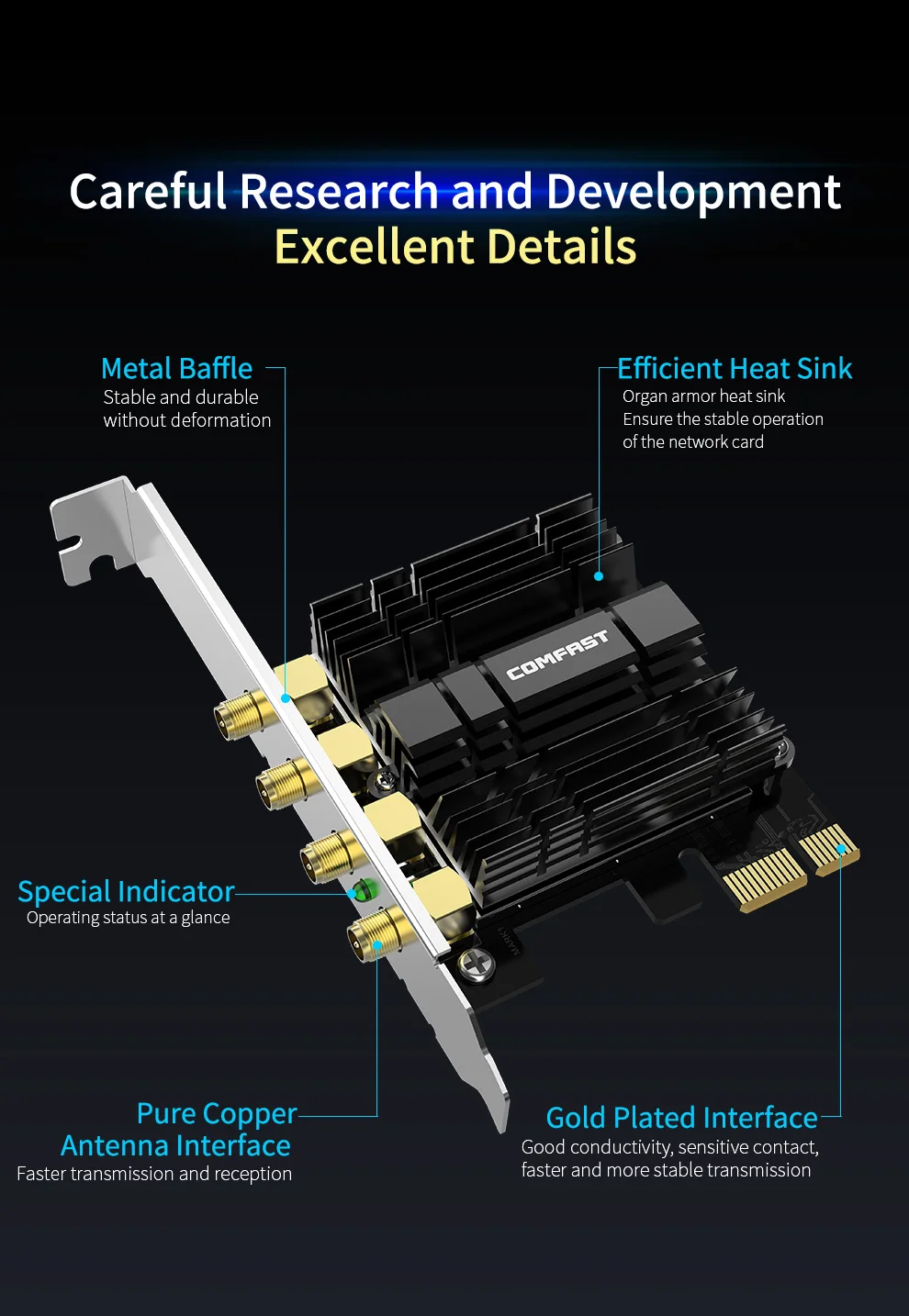

Careful Research and Development Excellent Details

Metal Baffle一Stable and durable without deformation

Efficient Heat Sink–Organ armor heat sink ；Ensure the stable operation of the network card

Special Indicator–Operating status at a glance

Pure Copper Antenna Interface–Faster transmission and reception

Gold Plated Interface–Good conductivity, sensitive contact,faster and more stable transmission

Product Installation Guide

The same series product has the same Installation guide,any questions please follow the User manual

①Open the side cover of the chassis

Power off the laptop and take off the back cover of the PCI-E slot

②Product inserted into PCI-E card slot

Insert the PCI-E wifi card into the slot. Make sureit’ s tightened

③Assemble the antennas

After inserted the card, screw tight the baffle onto the computer box, and screw  tight the antennas.

Compatible Interface

The device is compatible with PCI-E interface, not PCI interface

Q&A

Q: Does it work on AMD chipset motherboard?

A: NO,Please contact Customer Service for help.

Q: Does it support Linux system?

A: Sorry friend. currently we only provide Win 7/8/10 driver, no Linux service.

Q: Does it support WiFi and Bluetooth function?

A: Only support WiFi.

Q: The WiFi doesn’t work, what should I do?

A: ① Check whether the device wifi is recognized by the computer in the device manager. If there is a network controller with a yellow exclamation mark, please install the wifi driver. If the driver is already installed, a yellow warning will still be displayed. Please right-click, click Update, and select the driver file path to manually update.

② Check whether there is an M.2 hard disk on the motherboard, which may cause a hardware function conflict. The M.2 hardware in the parallel channel needs to be unplugged.

Check that the antenna connection is secure.

* If your desktop computer has built-in wifi function, please turn off the built-in wifi when using it on the desktop

computer.

Q：how to download driver file?

A:please click the COMFAST Official web and download the driver: //www.comfast.cn/index.php?m=content&c=index&a=show&catid=30&id=449

Then install the driver and restart your pc and test it.

Or contact online customer service to obtain the driver
