COMFAST AC1300 High Power Outdoor Wireless Access Point Roteador Wifi Longo Alcance 2.4G/5G 48V POE Gigabit Router AP

AC1300 High Power Outdoor Wireless Access Point Weatherproof Roteador Wifi Longo Alcance 2.4G/5G 48V POE Gigabit Router AP

1300Mbps dual-band high-power outdoor AP

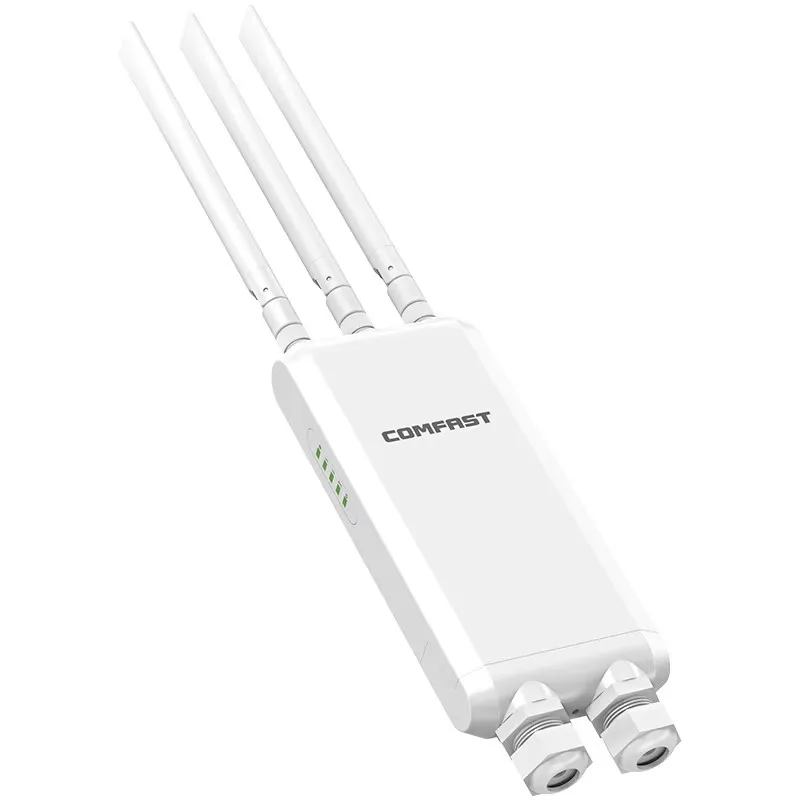

CF-EW85 is a high-power outdoor AP with dual-band 1300Mbps wireless transmission rate. It has a professional outdoor housing design and an external waterproof antenna that is strictly waterproof. Three high-gain omnidirectional antennas ensure 360° full coverage of the signal. Its high standards ensure that the equipment can be used in large outdoor places such as squares, resorts, and scenic spots.

Product Features:

• Wireless transmission rate up to 1300Mbps (2.4GHz 450Mbps + 5.8GHz 867Mbps);

• The 2.4GHz frequency band has strong compatibility, longer transmission distance and wider coverage;

• The 5GHz frequency band has less interference, low latency, and smoother high-bandwidth applications;

• Supports PoE network cable power supply and flexible distribution;

• 3*5dBi dual-band omnidirectional antenna to improve signal transceiver performance;

• Dual-band equipped PA power amplifier chip, increased power, stronger signal than ordinary AP;

• Supports 100+ users;

• Adjustable power to reduce mutual interference between APs;

• The coverage radius in the open environment is about 200 meters (for reference, specific needs to be combined with actual application conditions);

• Support IP66, external waterproof antenna design;

• Indicator lights provide intuitive understanding of working status

• Fully meet the long-distance wireless coverage needs of outdoor squares, stadiums, scenic spots, parks, playgrounds and other environments;

Product specifications:

Memory: 128MB

Flash memory: 16MB

Power amplifier chip: 2.4G frequency band: SKY65900*3; 5.8G frequency band: SKY85743*2

Antenna: 3*5 dBi omnidirectional antenna

2.4GHz rate: 450Mbps

5GHz rate: 867Mbps

Maximum transmit power: 800mW (29dBm)

Minimum receiving sensitivity: -96dBm

Working frequency: 802.11ac/n/a: 5.180GHz-5.825GHz; 802.11b/g/n: 2.412GHz-2.484GHz

Wired interface: 1 10/100/1000Mbps/ WAN RJ45 port; 2 10/100/1000Mbps/ LAN RJ45 ports

Power supply method: 48V POE power supply (up to 100 meters)

Power adapter: 48V POE power adapter

Installation method: wall hanging, pole installation

Working temperature: 0℃~40℃

Storage temperature: -40℃～70℃

Working humidity: 10%~90%RH non-condensing

Storage humidity: 5%~95%RH non-condensing

Packing list:

1*1300Mbps dual-band high-power outdoor AP

1*48V POE power supply

Do outdoor projects

The following problemsmust be avoided

Small coverage area

Unstable internetspeed

Too few concurrents

Installation trouble

Often disconnected

Water gets rusty

Reject hidden dangersEnsure worry-free projects

Select COMFAST high-power outdoor AP,to cope with various complex scenarios

Triple-cores CPU–Surging power

1300Mbps–High speed

Built-in PA–Higher power

360coverage–High gain three antennas

Full Gigabit network port–1WAN port+2LAN ports

POE/DCpower supply–Convenient project

Centralized management–Plug and play

More concurrents–160+ concurrents

Gigabit dual-band，High-speed transmission

2.4&5.8GHz dual-band concurrent, priority connection to 5G,wireless speed up to 1300Mbps, ensuring more and higher-standardterminal access, providing high-speed and stable wireless connectionsfor scenic spots, gardens, stadiums and other crowded places

PS: 1300Mbps (2.4GHz 450Mbps + 5.8GHz 867Mbps)

Qualcomm three-coresPerformance guaranteed

Adopting Qualcomm chip solution, powerful three-core CPU,stable signal, long-term engineering test, worthy of users’ trust

Built-in PA Strong signal

CF-EW85 is equipped with 5 high-gain independent signalamplification chips to truly enhance the signal and upgradethe coverage area,3 external high-gain omnidirectionalantennas can easily penetrate walls, making outdoor network use easier

Gigabit port One step faster

CF-EW85 adopts Gigabit port design, which greatly increases thespeed compared to 100M port, breaking through the wiredbottleneck and achieving faster network speed,internet access becomes smoother.

High-density access , Smooth network speed

When the user density in a certain scene is too high, the capacityof WiFi equipment will often be tested. With the high-densitycapacity of CF-EW85, WiFi can be maintained fast and smooth

no matter how dense the users are.

A single AP can access160+ terminal devices

Dual power supply modes , Flexible layout

Supports both POE/DC power supply methods, which can be selected .according to actual construction needs,making installation more flexible.

Adjustable power , Effective anti-interference

When AP in high-density coverage has strong interference, the APpower can be flexibly adjusted according to the actual applicationenvironment to improve wireless stability.

Before adjustment: big interference and weak signal

( Turn on automatic adjustment function )

After adjustment: little interference and good experience

Unified managementto facilitate projects

When implementing large-scale outdoor WiFi projects,WithCOMFAST brand AC management equipment,outdoor APs can be central managed and controlled,can significantly save engineering debug and maintenance costs.

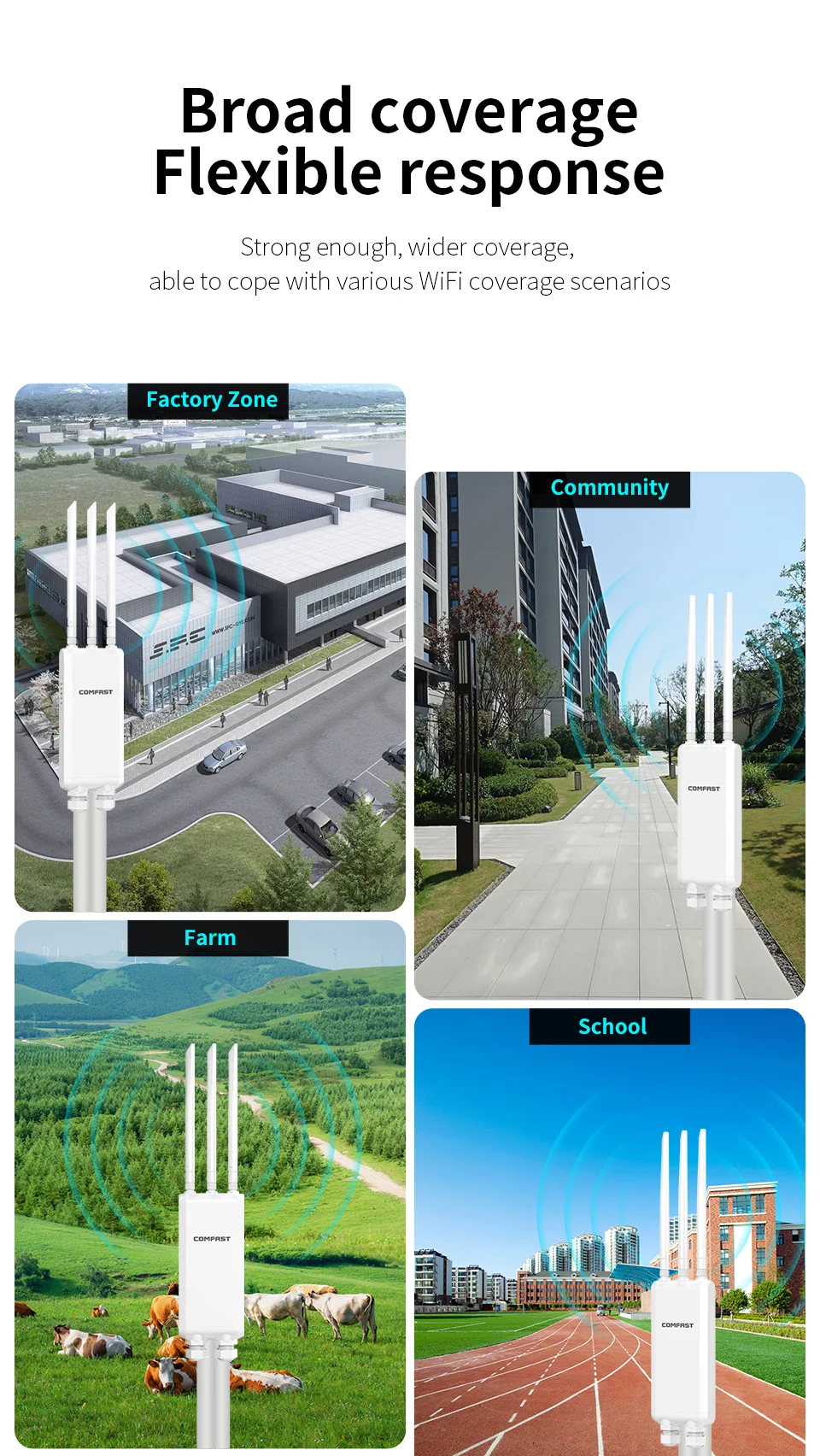

Broad coverageFlexible response

Strong enough, wider coverage,able to cope with various WiFi coverage scenarios

Wall-mounted/Pole , Easy to be installed

Installation diagram For reference only

1、Wall-mounted installation

2、Pole installation
