Dual Band WiFi 6 Intel AX200 2974Mbps Bluetooth 5.2 WiFi 6E AX210 Wireless M.2 802.11ax MU-MIMO NGFF Laptop Wlan WiFi Card Win10

Features:

The Wi-Fi 6 M.2 AX200 supports 802.11ax MU-MIMO over the 2.4 GHz and 5 GHz bands.
The maximum throughput supported by the Wi-Fi 6 AX200 is a speedy 2.4 Gbps(160Mhz)
AX200NGW supports Bluetooth 5.1.
The AX200 can provide Gigabit download speed and dramatically improve your connected experience at home, work, or on the go.

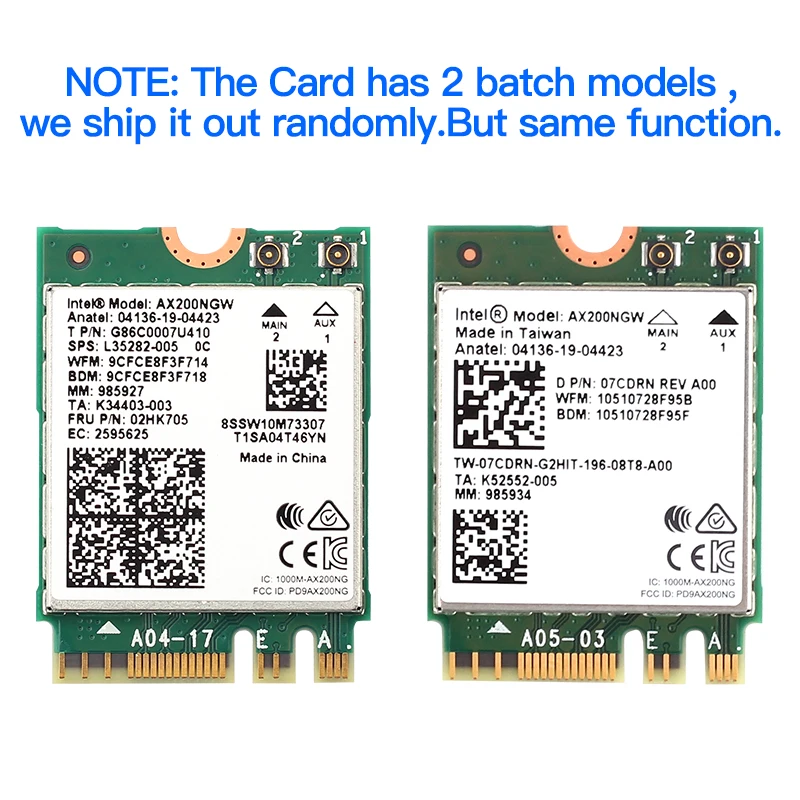

NOTE: The Card has 2 batch models ,we ship it out randomly.But same function.

Description:

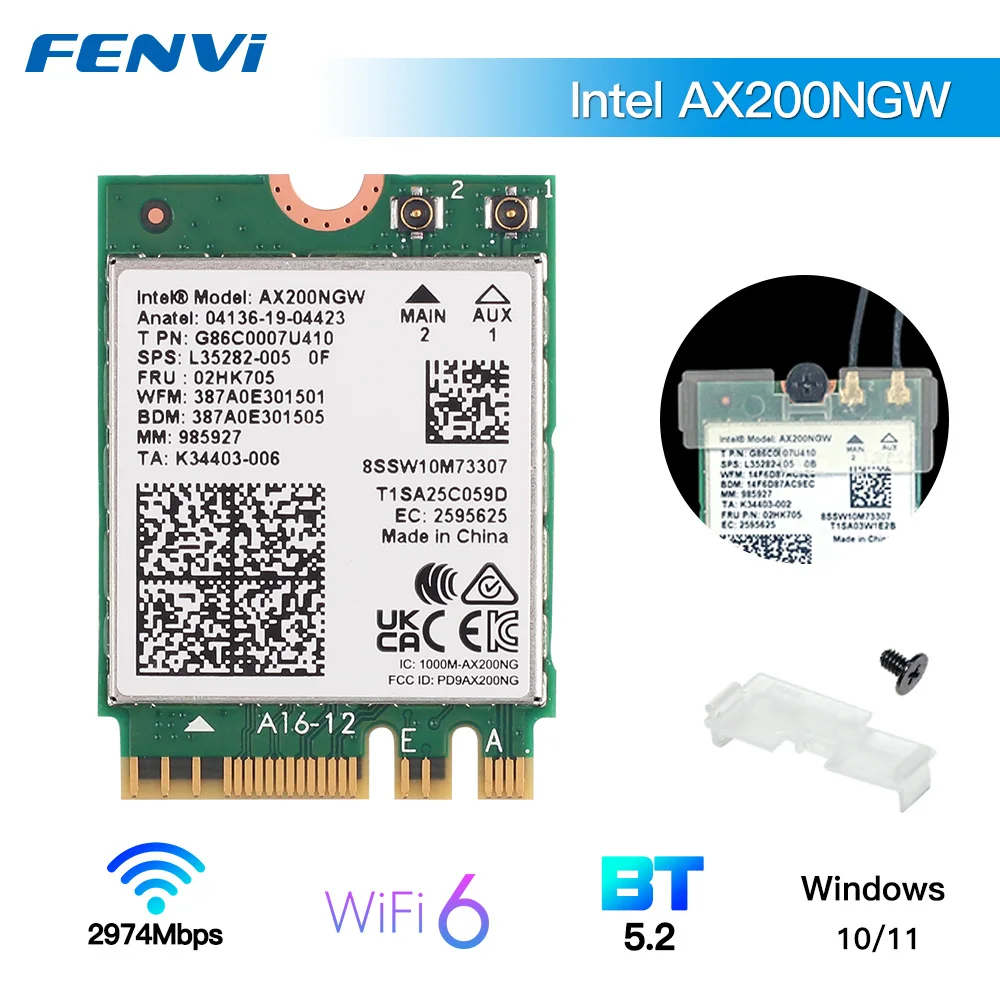

Model: New Wi-Fi 6 AX200 (AX200NGW);
Interface: M.2 NGFF, Not compatible with M.2:CNVI;
Dual band: 2.4Ghz / 5Ghz (160Mhz);
Speed up to 2400Mbps (The router must on 160Mhz)(802.11ax);
Support Bluetooth 5.1;
Support MU-MIMO;
Support Windows 10 64bit, Linux;
Note: Not support Windows 7/8/8.1.

Compatible With:

It can used on Samsung/Dell/Sony/ACER/ISUS/MSI/Clevo/Terransforce/Hasee etc.
Not support IBM/Thinkpad/lenovo/hp laptop.(But for 2016 above of HP/Lenovo laptop, it can support.)

Package include：

1* AX200 Wireless card
1* bracket（Antenna anti loose clip）
Some Screws

M.2 NGFF Key E To Mini PCI-E Adapter

Brand: fenvi;
Condition: New;
Interface type: M.2 / NGFF Key E A to Mini PCI-E;
Feature: Include IPEX 4 antenna interface, IPEX interface, that don’t need to replace the antennas;
No need extra power adapter and any drivers;
Supports and Designed for: Mini PCI-E slot;
Note: Only support KEY A+E to PCI-E(The single Key E interface cann’t be used),compatible with Wireless Wifi Bluetooth card, Such as AX200, 9260, 8265, 8260 and BCM94352Z, DW1560 NGFF(M.2) Wireless card, ect.
Not fit 9560NGW, AX201, SSD ,3G/4G module.

FV-102 M.2 NGFF To PCI-E Adapter

Description:
Condition: New;
Brand: Fenvi;
Model: FV102;
with 2* 6DBIantenna;
Great signal; high speed;
Convert NGFF card (such as WLAN, WWLAN, BT) to standard PCI-e 1X slot;
Two 6Dbi antenna, copper inside, 360 degree rotation;
Gold-plated antenna connector, zero impedance;
3U black immersion gold PCB board, great connection.

Note:
Not include wireless wifi card (If you need wifi card, pls contact with our staff, thank you.) We suggest Intel AX200NGW, 9260NGW, 8260NGW, 8265NGW NGFF(M.2) Wireless Card.

Package includes:
1 x Converter board
1 x Alumium cover case
1 x w/Low Profile Bracket
1 x Bluetooth cable
1 x Set of screws
2 x Antenna.

FV-326 PCIE Adapter converter

1, M.2 To PCIe Adapter;
2, With 2X External Antenna;
3, Convert M.2 wifi card (such as WLAN, WWLAN, BT) to standard PCI-e 1X 4X 8X 16X slot;
4, Gold-plated antenna connector, zero impedance;
5, Compatible with Intel AX210 AX200 9260;
6, The black USB cable must connect from the adapter board to motherboard in order to use bluetooth.
