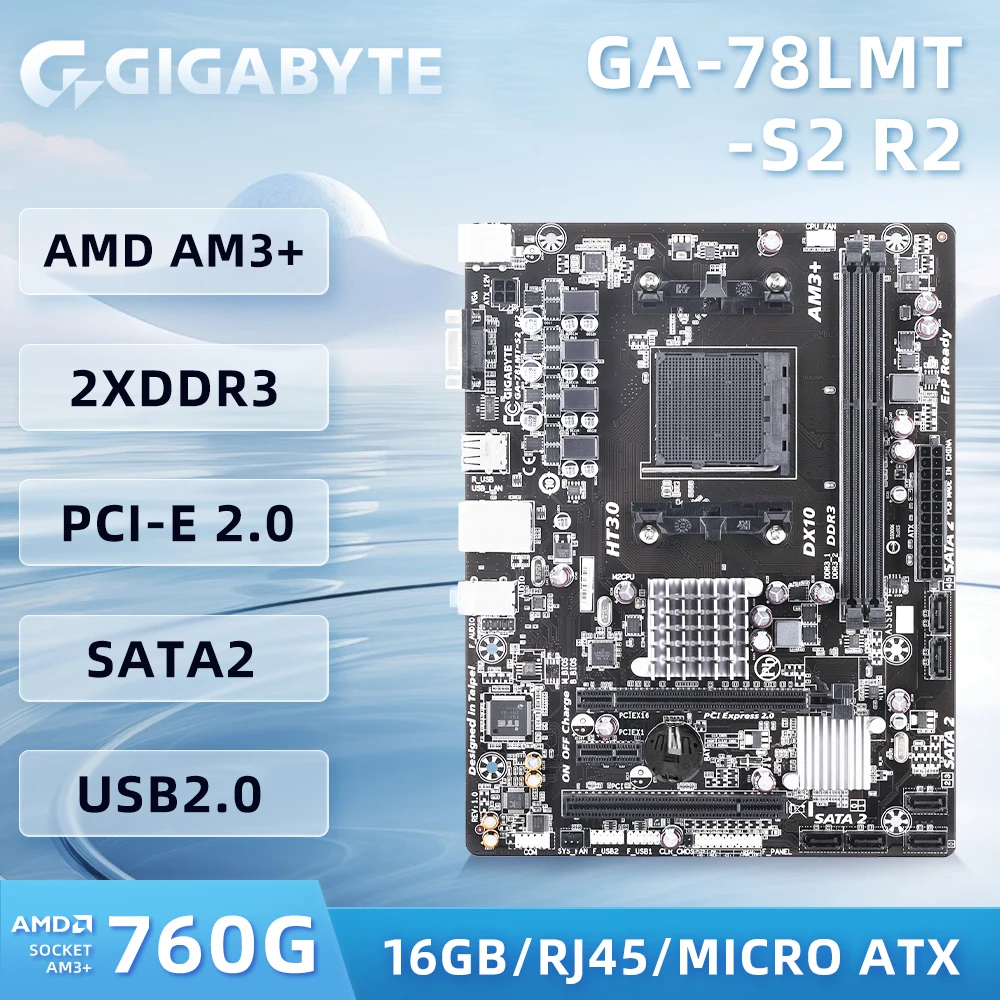

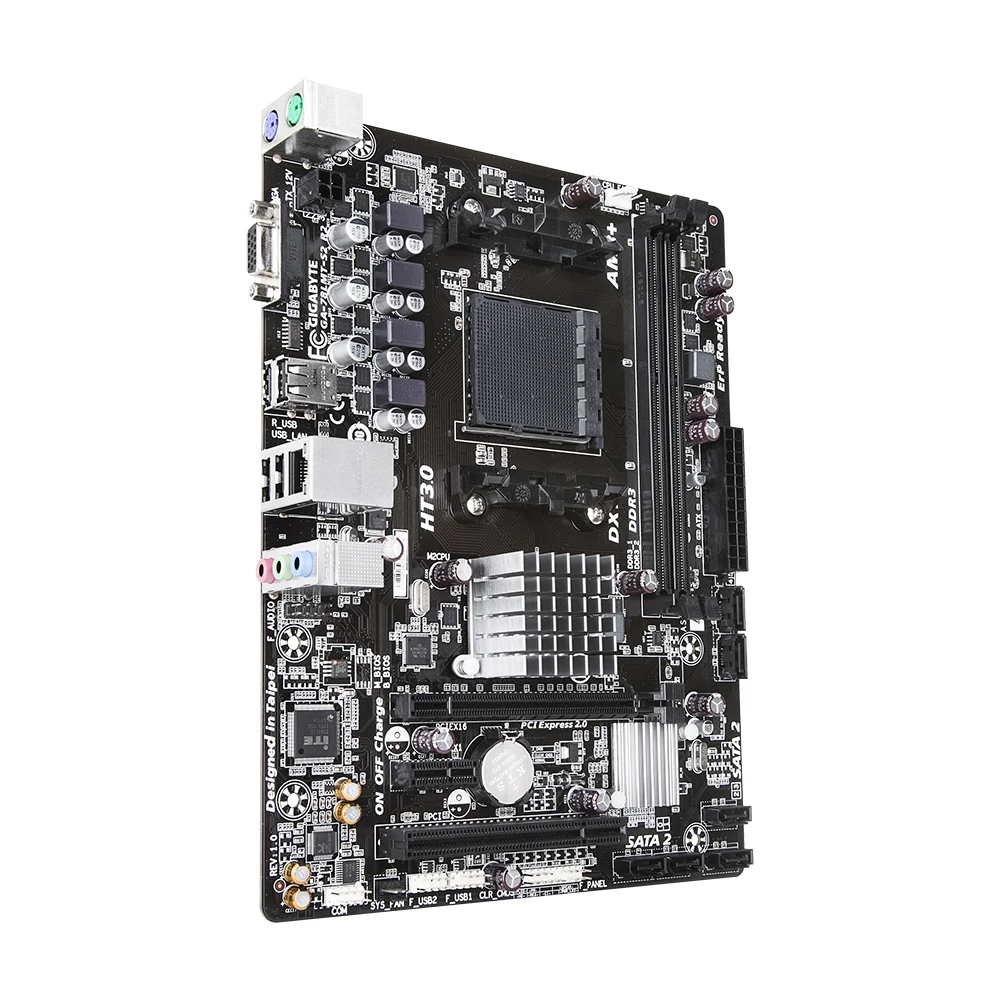

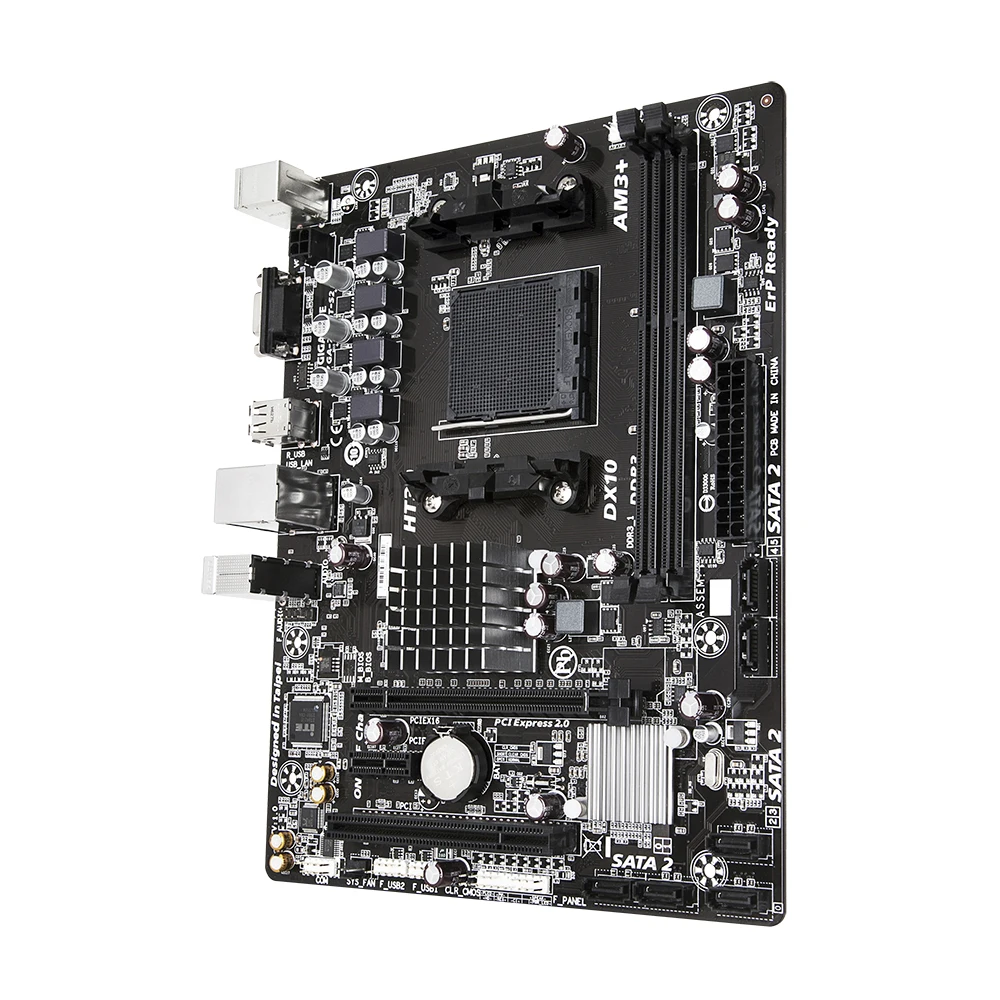

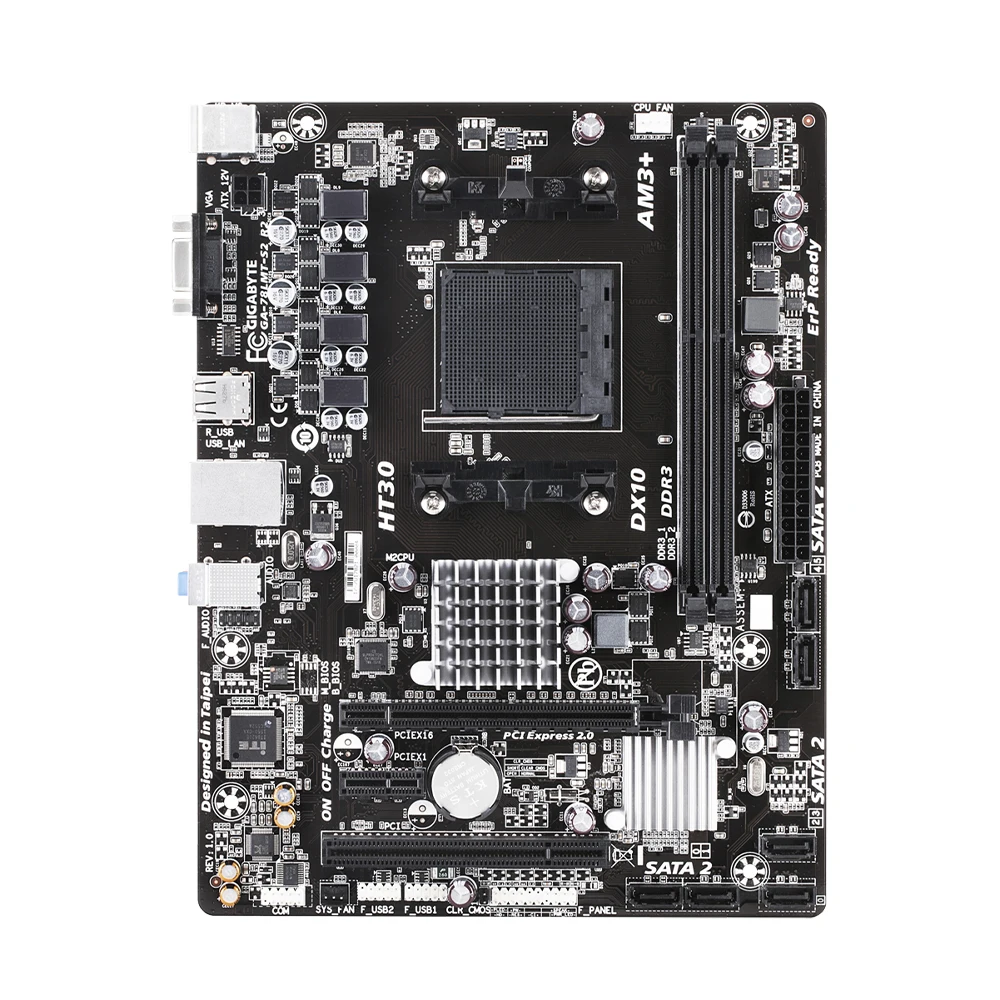

Gigabyte GA-78LMT-S2 R2 motherboard, AM3+ slot Support for AMD AM3 Phenom II processor/AMD Athlon II processor DDR3 1333MHz ATX

CPU

AM3+ Socket:
Support for AMD AM3+ processor
Support for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor
(Please refer “CPU Support List” for more information.)

Hyper Transport Bus

HyperTransport™ 3.0
Support up to 5200MT/s

Chipset

North Bridge: AMD 760G
South Bridge: AMD SB710

Memory

2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for 1333+ (O.C.)/1066 MHz memory modules
(Please refer “Memory Support List” for more information.)

Onboard Graphics

North Bridge:
1 x D-Sub port, supporting a maximum resolution of 1920×1200
Maximum shared memory of 1 GB

Audio

Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
(All PCI Express slots conform to PCI Express 2.0 standard.)
1 x PCI slot

Storage Interface

South Bridge:
6 x SATA 3Gb/s connectors
Support for SATA RAID 0, RAID 1, RAID 10, and JBOD

USB

Chipset:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
6 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper

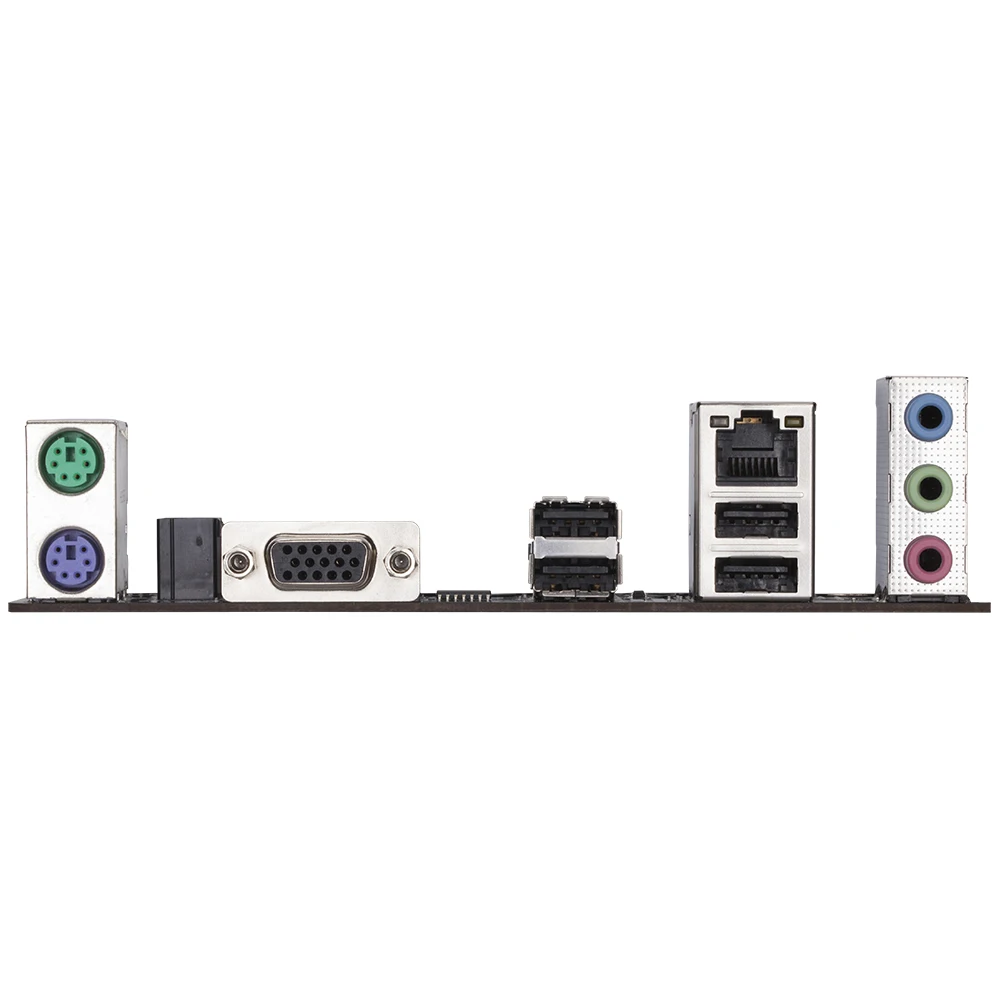

Back Panel Connectors

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
