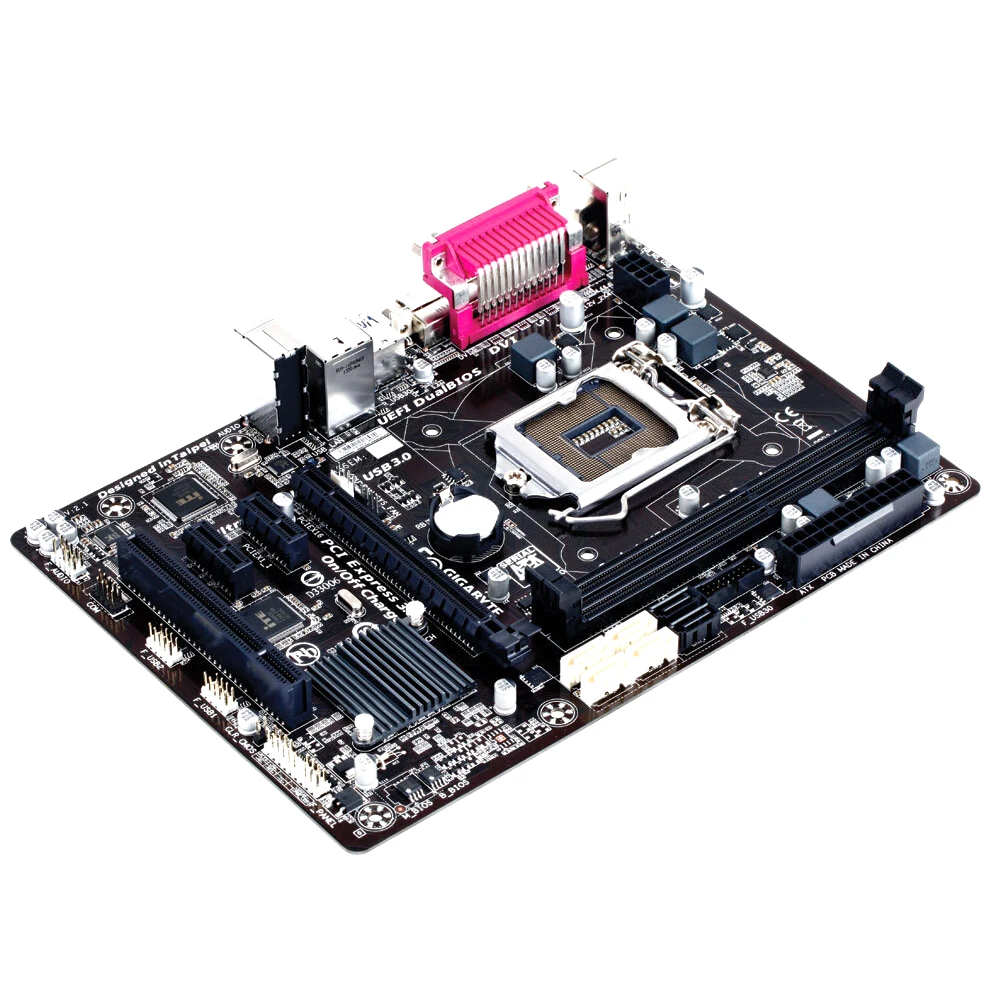

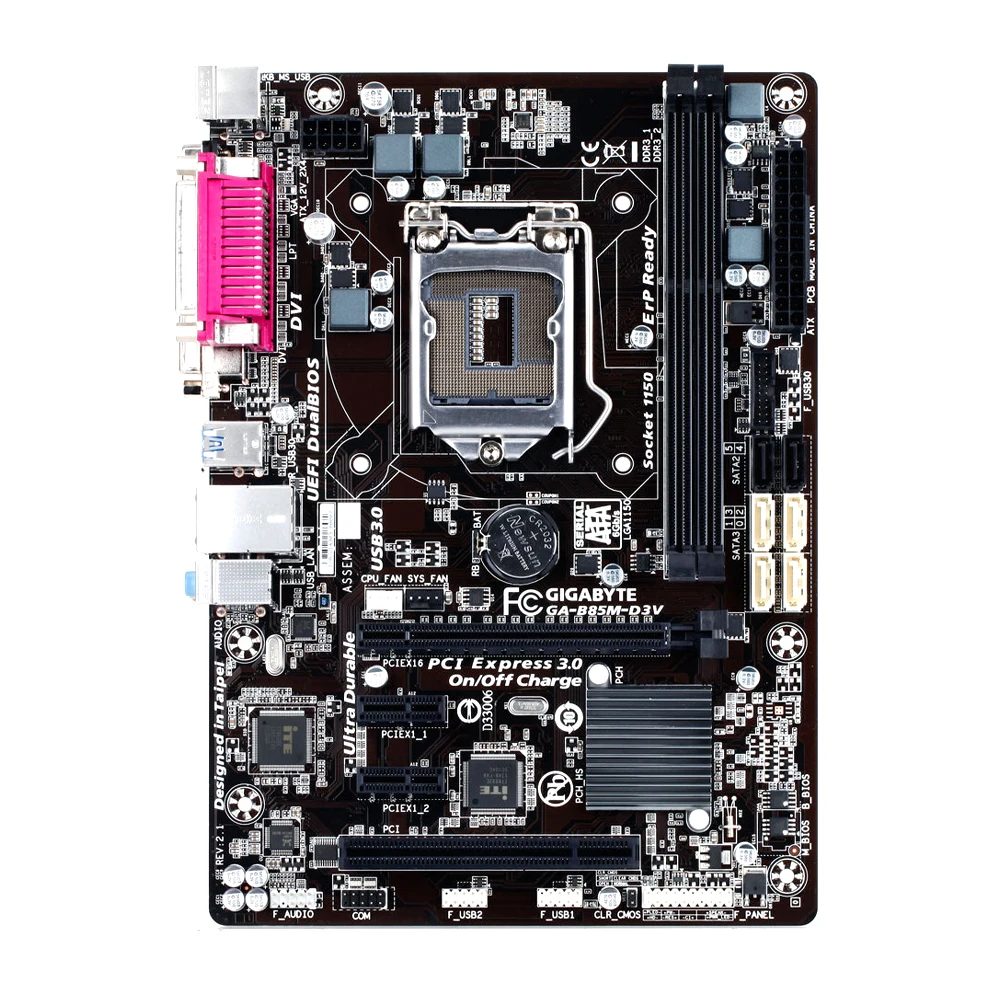

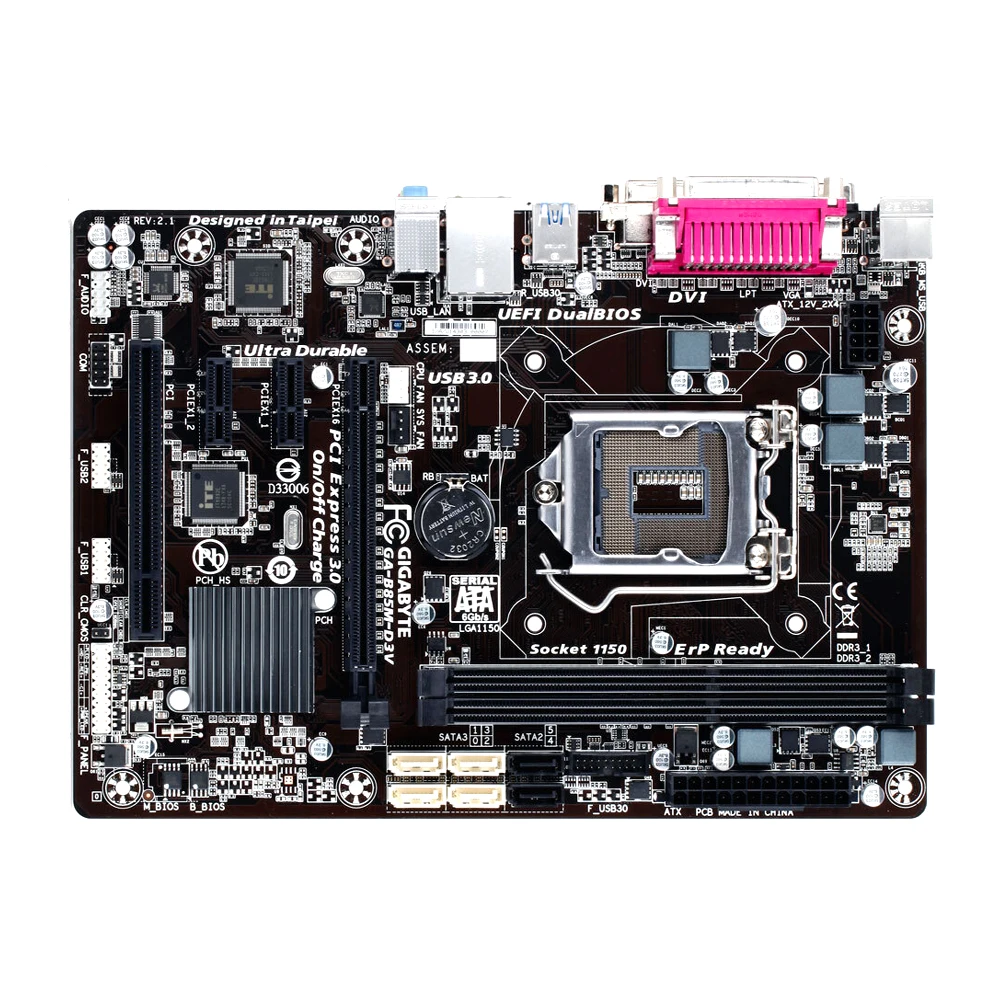

Gigabyte GA-B85M-D3V Motherboard Support i7-4790K 4770K i5-4690K 4670K Intel B85 Core i7 i5 i3 CPU 4xDDR3 32GB USB3.0 SATA III

Motherboard Chip

Integrated chip: sound card/network card
Chipset Description: Intel B85 Chipset
Display chip: CPU built-in display chip (requires CPU support)
Audio chip: Integrated Realtek ALC887 8-channel audio chip

Processor Specifications

CPU platform: Intel
CPU type: Core i7/Core i5/Core i3/Pentium/Celeron
CPU socket: LGA 1150
Number of supported CPUs: 1

Expansion Slot

Graphics card slot: PCI-E 3.0 standard
PCI-E slot: 1 x PCI-E X16 graphics card slot
2 x PCI-E X1 slots
PCI slot: 1 x PCI slot
SATA interface: 2×SATA II interface; 4×SATA III interface

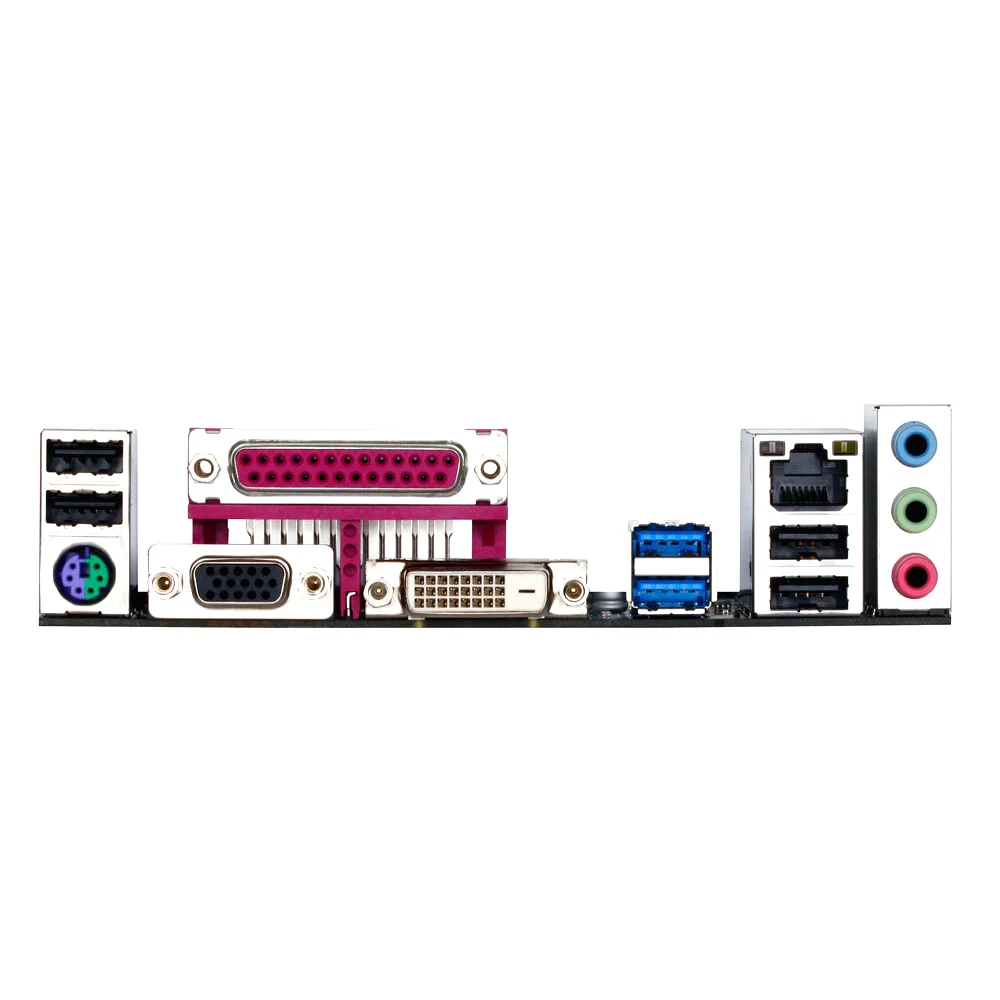

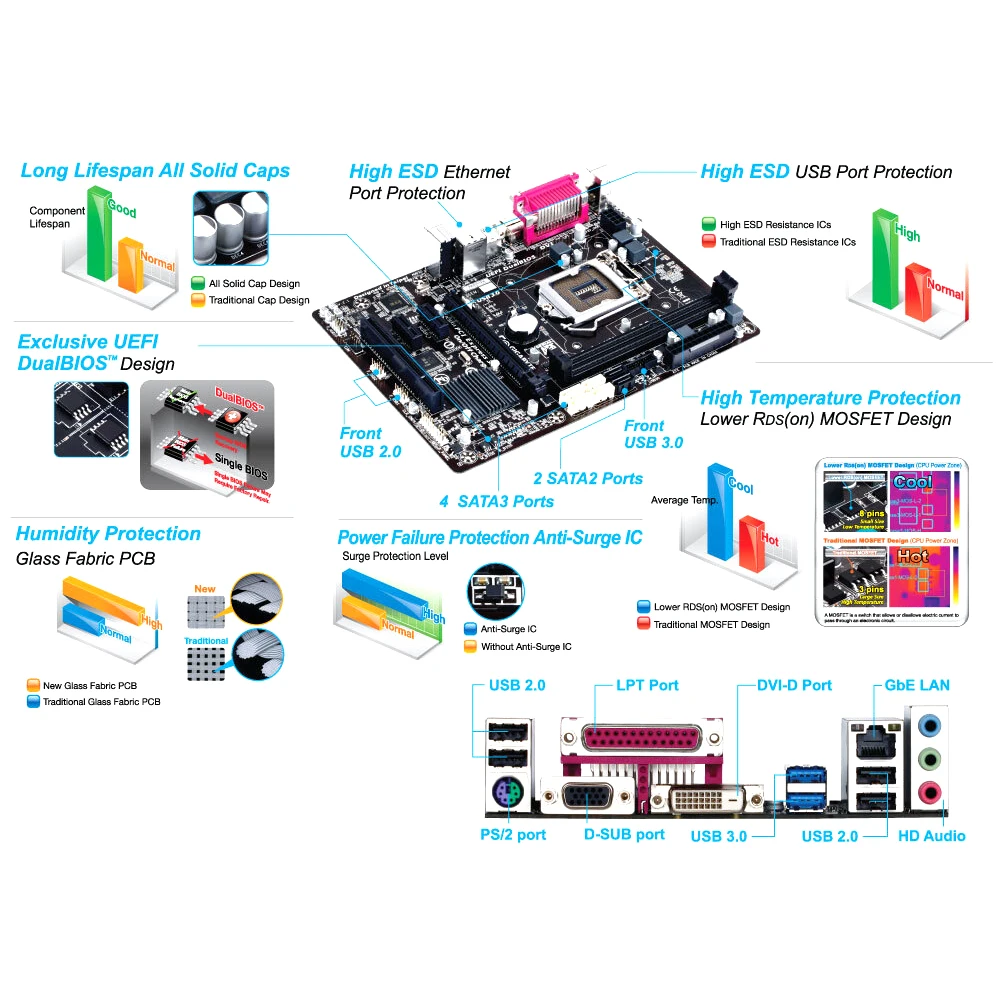

I/O interface

USB interface: 8 x USB2.0 interface (4 built-in + 4 backplane); 4 x USB3.0 interface (2 built-in + 2 backplane)
External port: 1×DVI interface
1 x VGA interface
PS/2 interface: PS/2 universal interface for keyboard and mouse
Parallel serial port: 1 parallel port
Other interfaces: 1×RJ45 network interface
audio port

Plate Type

Motherboard board type: Micro ATX board type
Dimensions: 24.4×17.4cm

Software Management

BIOS performance: two 64Mbit flash
Use licensed AMI EFI BIOS
Support DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Other Parameters

Multi-graphics technology: support AMD CrossFireX mixed crossfire technology
Audio effects: does not support HIFI
Power socket: one 8-pin, one 24-pin power interface
Hardware monitoring: system voltage detection
CPU/system temperature detection
CPU/system fan speed detection
CPU/system over temperature warning
CPU/system fan failure warning
CPU/system intelligent fan control
Other features: support for Extreme Memory Profile (XMP) memory
Other features: support Microsoft Windows 8/7 operating system
Motherboard information: Gigabyte GA-B85M-D3V-A-SI
