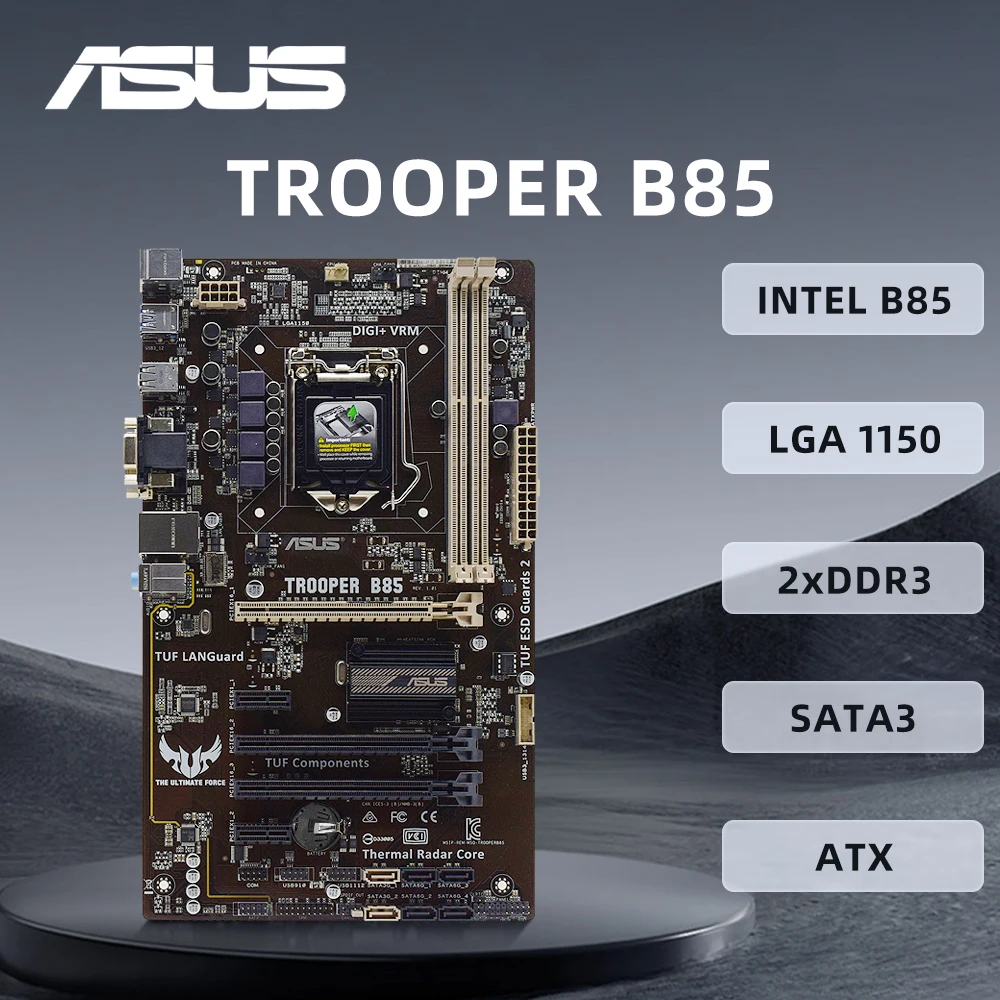

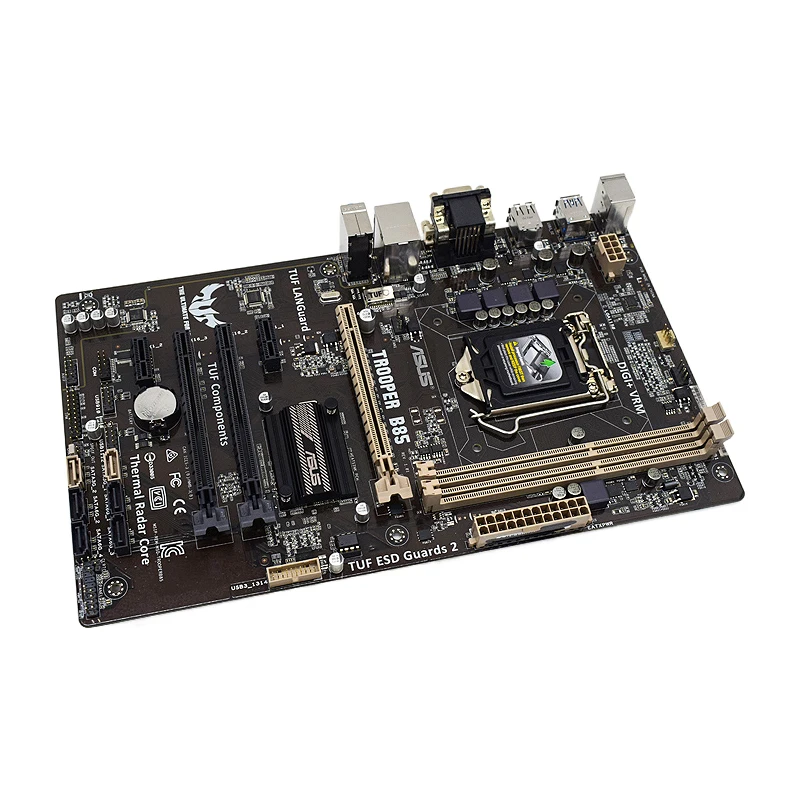

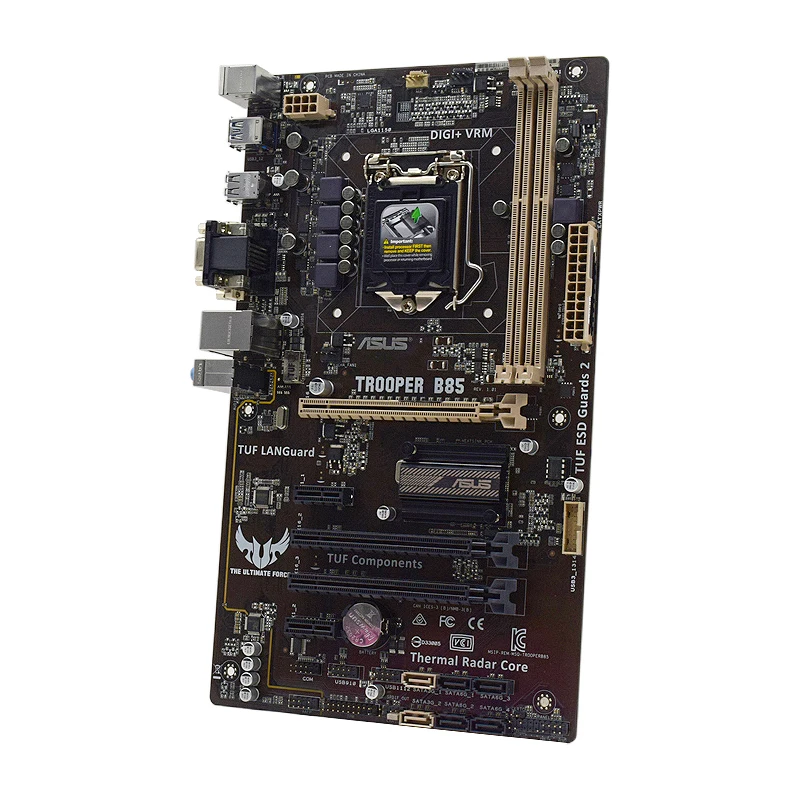

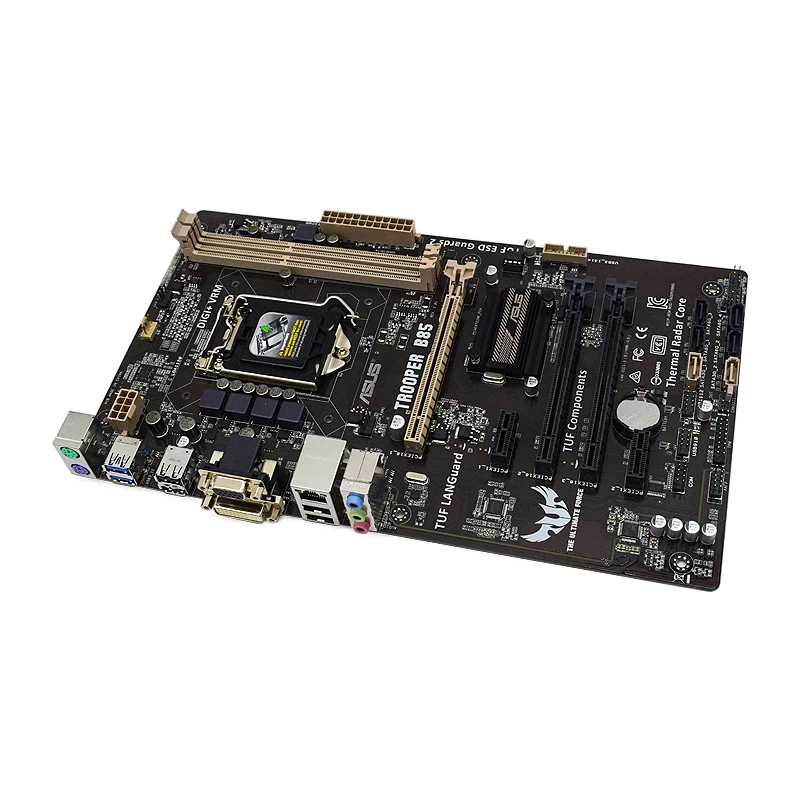

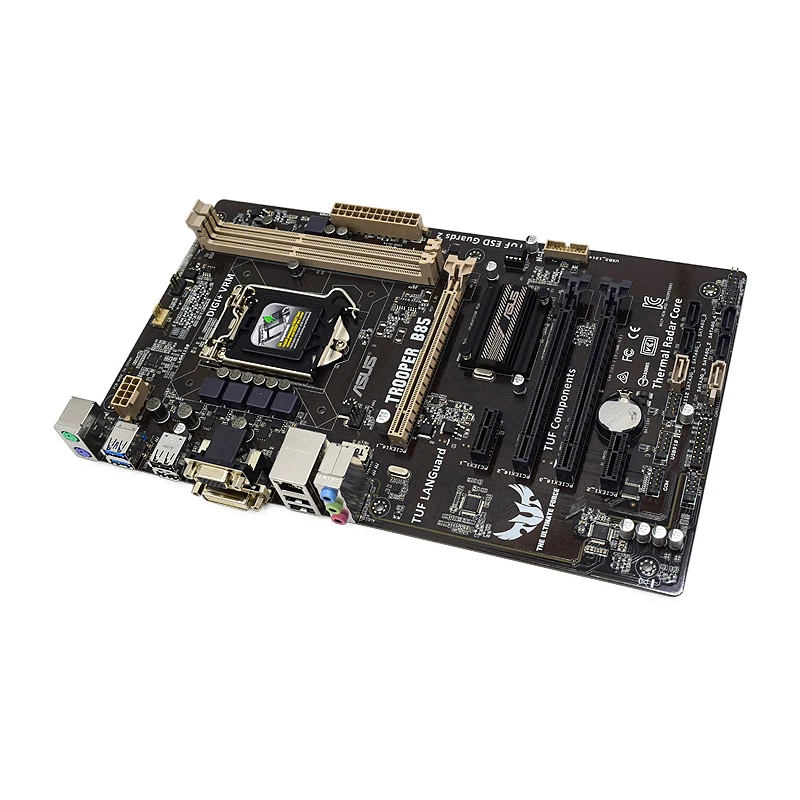

ASUS TROOPER B85 Motherboard with Intel B85 Chipset onboard Realtek RTL8111GR Gigabit LAN LGA 1150 Slot Core i7 i5 i3 7th Gen

ASUS TROOPER B85 Motherboard with Intel B85 Chipset onboard Realtek RTL8111GR Gigabit LAN LGA 1150 Slot Core i7 i5 i3 7th Gen

Note:

The motherboard has been used, but the appearance is relatively new, and it looks almost new The product does not come in the original box.

The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.

For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can’t, we don’t recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.

Please check our Bundle carefully before purchasing.Purchase a single motherboard. We don’t send CPU and memory. Please check carefully.

Motherboard chip

Integrated chip sound card/network card
Main Chipset Intel B85
Chipset Description Using Intel B85 Chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC887 8-channel sound chip
Network card chip Onboard Realtek RTL8111GR Gigabit network card

Processor Specifications

CPU Type Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1150
CPU description Support Intel 22nm processor

Memory Specifications

Memory type 2×DDR3 DIMM
Maximum memory capacity 16GB
Memory description Support dual-channel DDR3 1600/1333MHz memory

Storage Expansion

PCI-E Standard PCI-E 3.0
PCI-E slot 3×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 4 x SATA III interface, 2 x SATA II interface

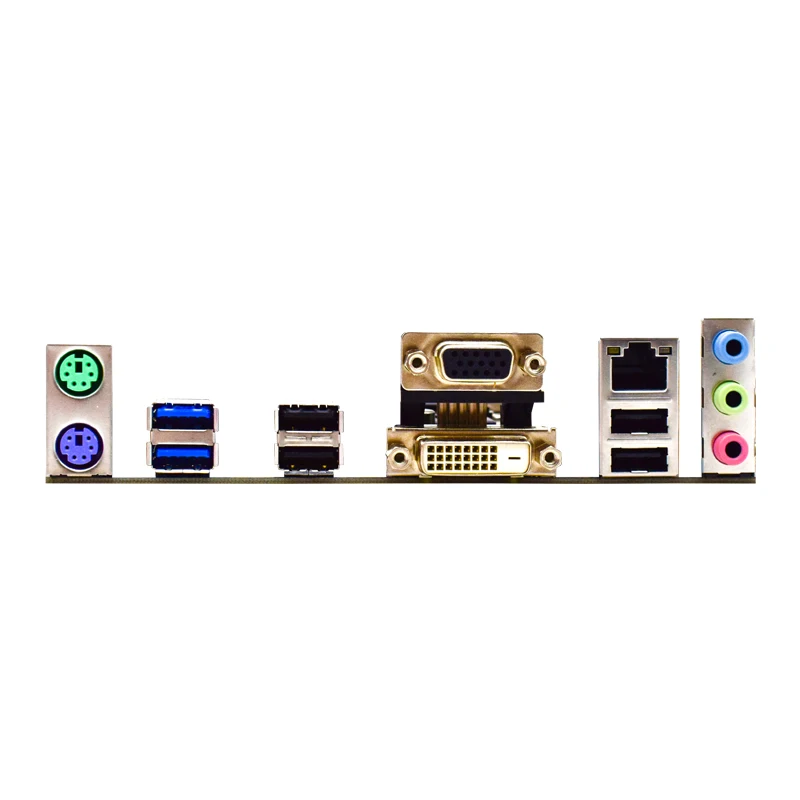

I/O interface

USB interface
4×USB3.0 interface (2 built-in +2 backplane),
8×USB2.0 interface (4 built-in +4 backplane)
video interface
1×VGA interface,
1×DVI interface
Power interface
an 8-pin,
One 24-pin power connector
Other interfaces
1×RJ45 network interface,
audio port,
1 x PS/2 mouse,
1×PS/2 keyboard interface

Plate Type

Mainboard form factor ATX form factor
Dimensions 30.5×18.0cm
